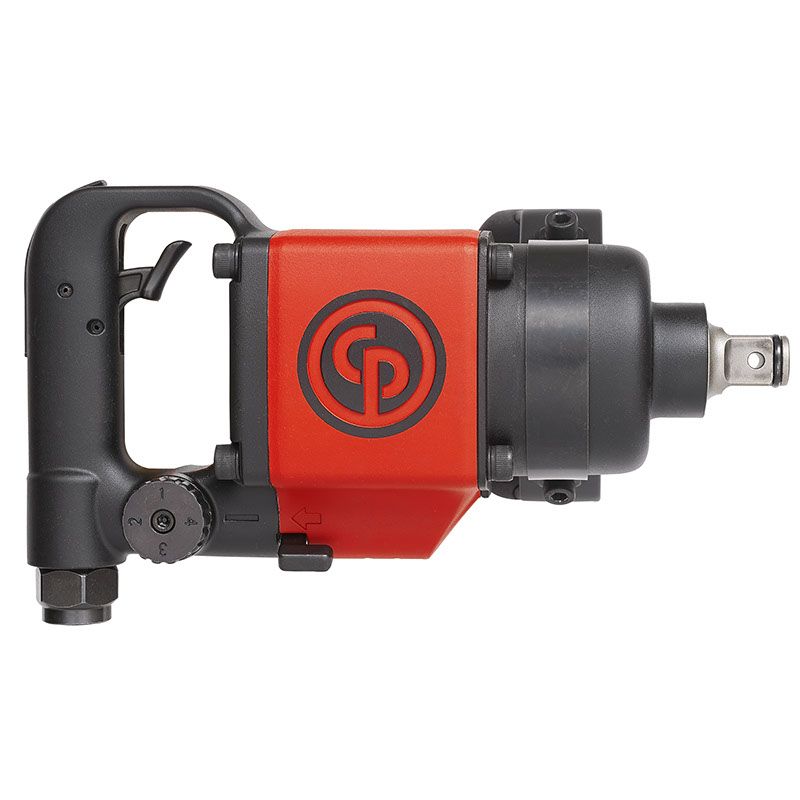

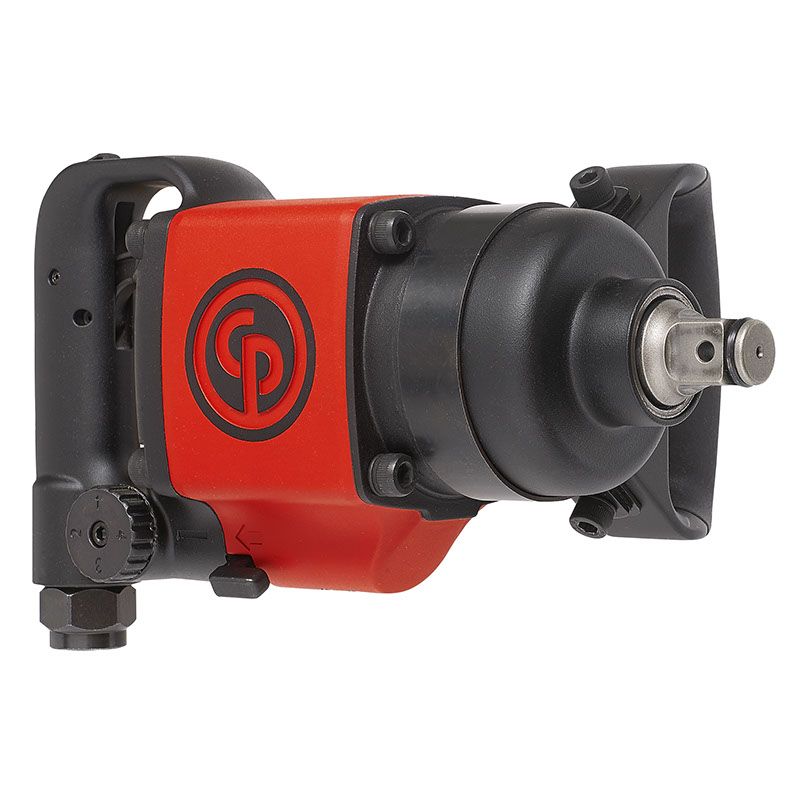

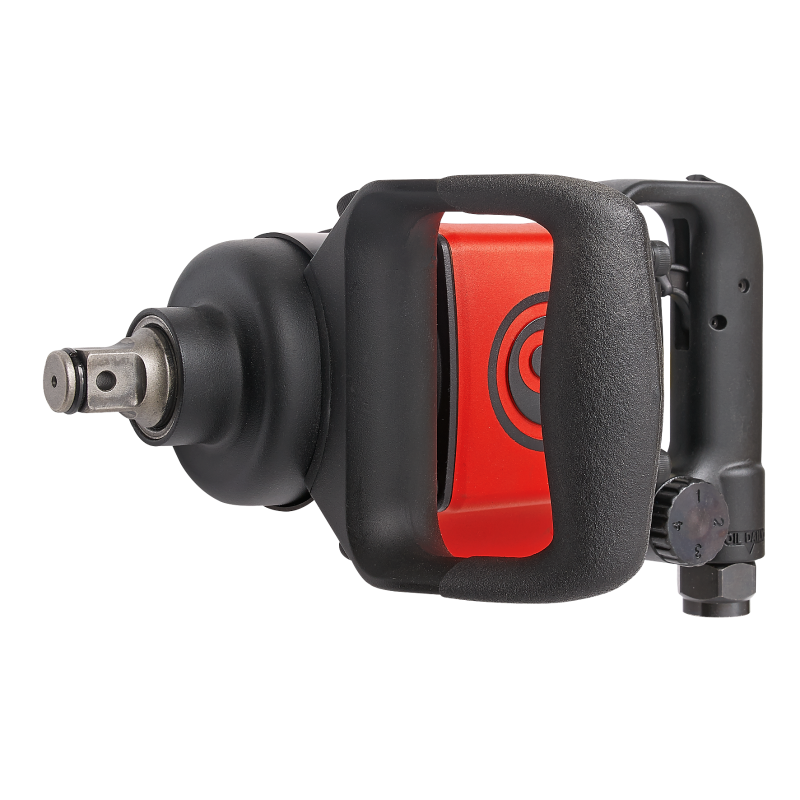

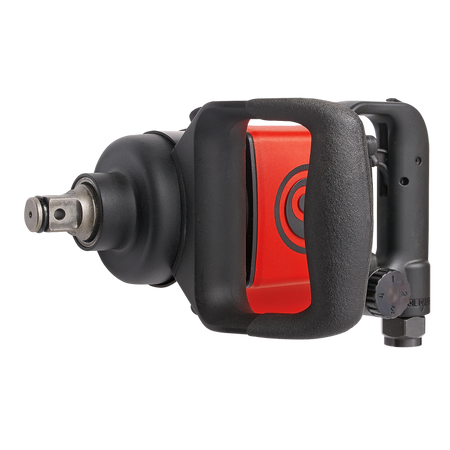

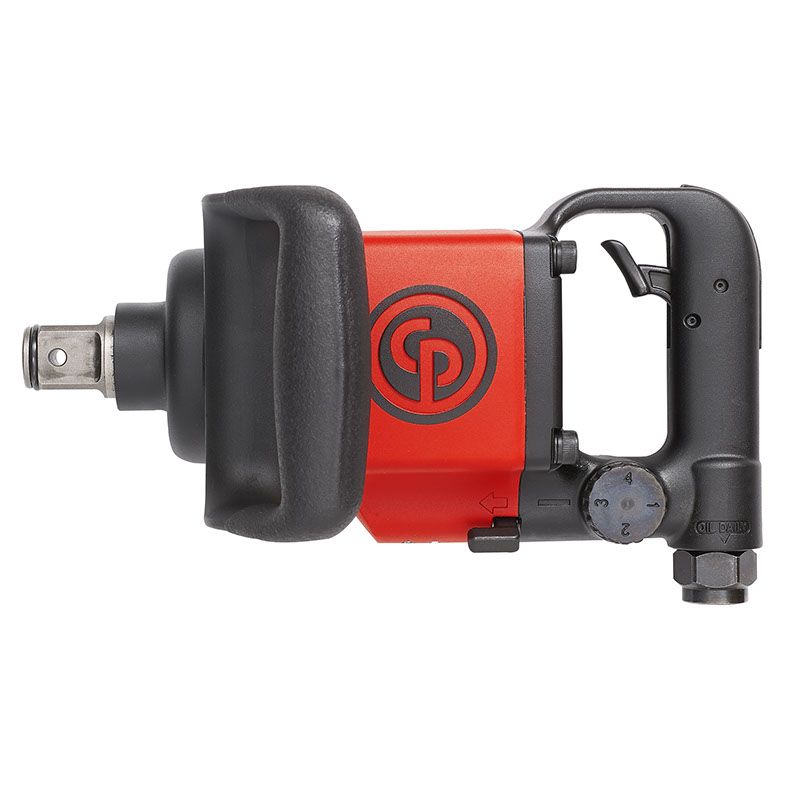

Chicago Pneumatic CP6763-D18D Impact Wrench 3/4" โ 6151590640
3/4" pneumatic impact wrench
Our 3/4" -1" high torque impact wrench CP6763/CP6773 Series is designed for the toughest environments and bolting applications. The twin hammer clutch mechanism, with aluminum body and steel clutch housing delivers a high power-to-weight ratio for demanding industrial environments. The motor provides up to 1630, 1760 Nm/1200, 1300 ft.lbs of max reverse torque. Available in 4 models: The 3/4" and 1" pistol handles feature a compact design and allow easy access due to the short side-to-center position.
Features
- Powerful hard hitting twin hammer clutch mechanism
- Flexibility and safety is guaranteed with the double hole and ring retaining system.
- Steel clutch housing and aluminium motor housing for robustness
- Short and narrow side-to-centre for easy access
Specifications
| Max working torque fwd | 1070 ft.lbf |
| Max torque reverse | 1300 ft.lbf |
| Min working torque fwd | 251 ft.lbf |
| Air inlet thread size | 1/2 in |
| Max dynamic air working pressure | 90 psi |
| Sound Power | 109 dB(A) |
| Sound Pressure | 98 dB(A) |
| Free Speed | 6600 rpm |
| Air consumption at free speed | 55 cfm |
| Length | 11.42 in |
| Side to Center | 1.61 in |
| Weight | 14.5 lb |
| Output drive size | 3/4 in |
| Handle type | D-handle |
| Impact mechanism | Twin hammer |
| CP part # | 6151590640 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151590640
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
