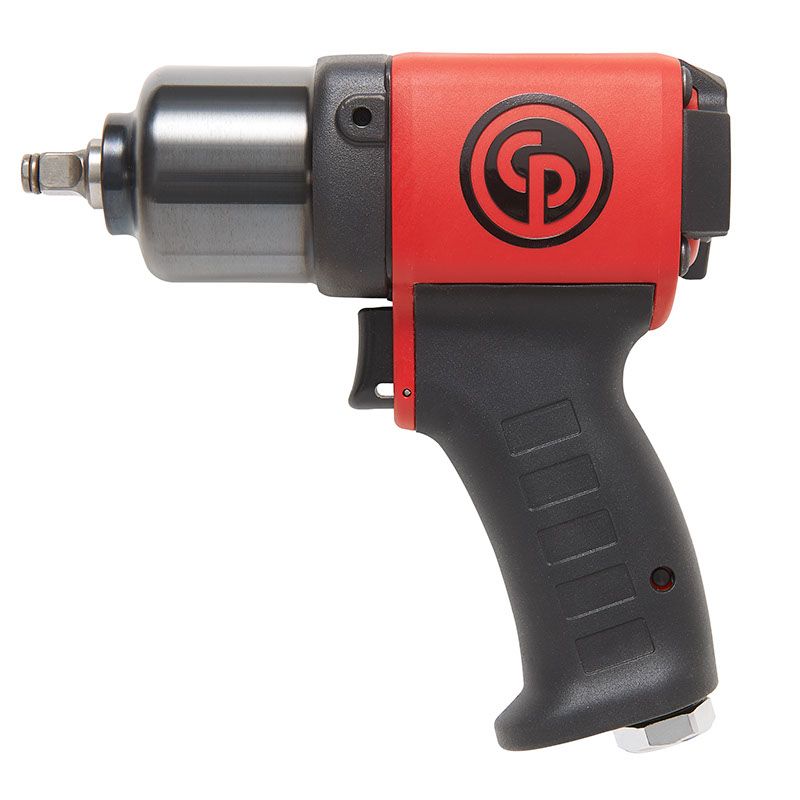

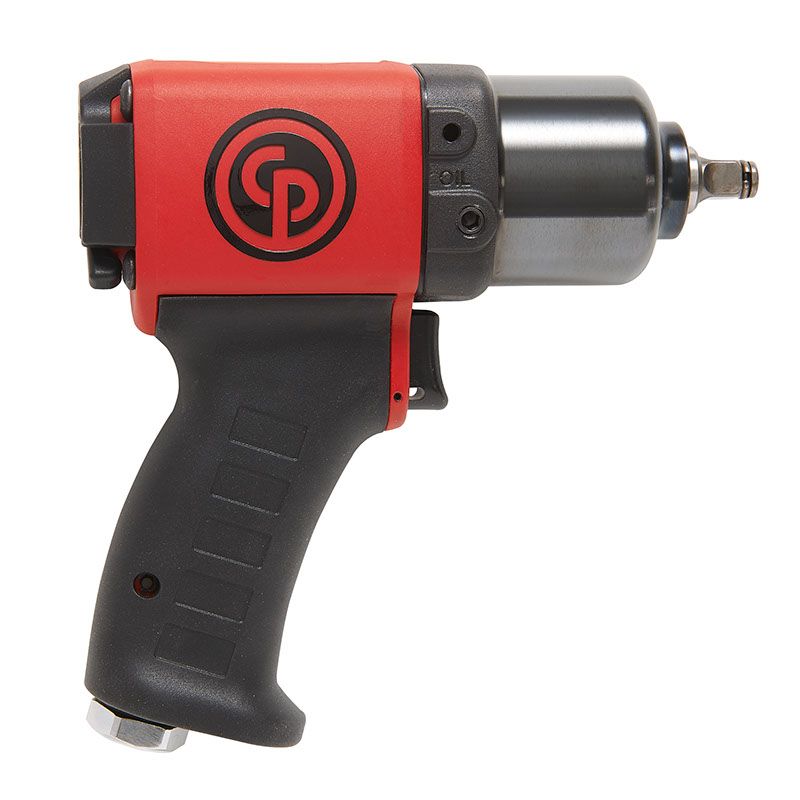

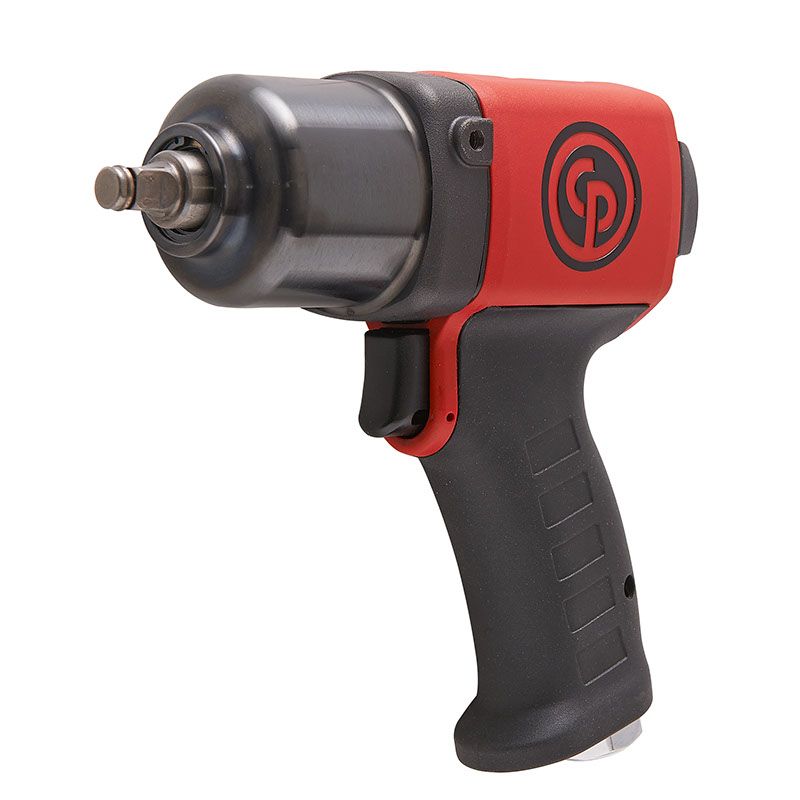

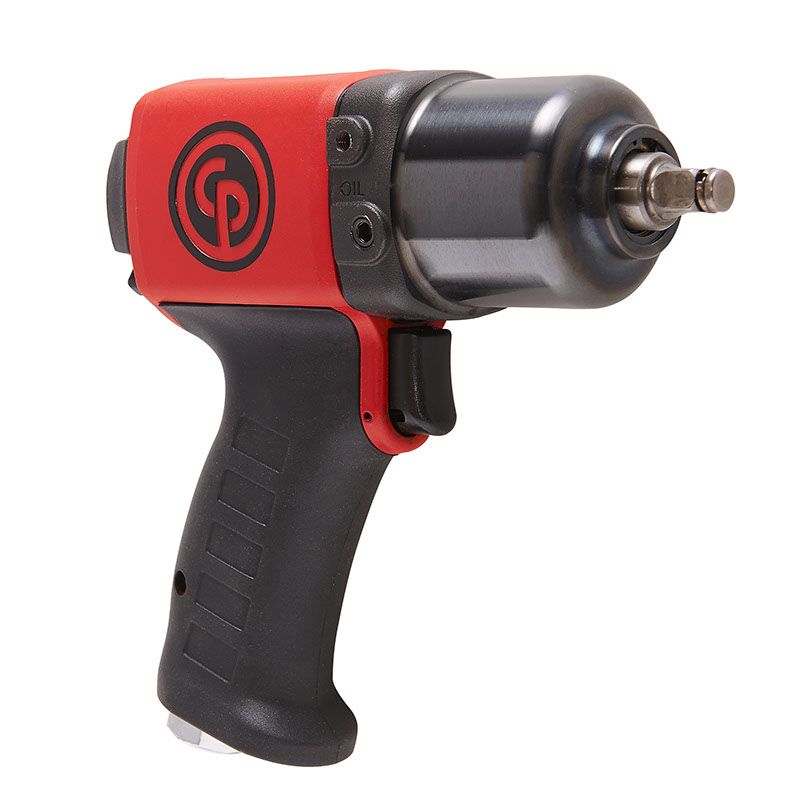

Chicago Pneumatic CP6728-P05R 3/8" Impact Wrench โ 6151590550
3/8" pistol pneumatic impact wrench
Work in any heavy-duty environment with the CP67XX series of impact wrenches from 3/8" to 1, including Atex certified-IP6 dust-proof models. Designed with a powerful and durable oil bath twin hammer clutch mechanism, steel housing, and a lightweight composite body, the CP67XX delivers a maximum reverse torque from 475 up to 1750 Nm (350 up to 1290 ft.lb us). The CP67XX series is available in ATEX and non ATEX for CP6728 and 38 with ring or ring-dual socket retainer.
Features
- Reliable twin hammer clutch mechanism in oil bath for hard joint applications.
- ATEX certified IP6 dust-proof
- Square drive shaft with ring or dual version for a wide variety of applications
- Low noise and low vibration for operator comfort
- Comfortable handle with rubber grip & suspension bail included
Specifications
| Max working torque fwd | 258 ft.lbf |
| Max torque reverse | 350 ft.lbf |
| Min working torque fwd | 81.1 ft.lbf |
| Air inlet thread size | 1/4 |
| Max dynamic air working pressure | 90 psi |
| Sound Power | 100 dB(A) |
| Sound Pressure | 89 dB(A) |
| Vibration | 5.2 m/sยฒ |
| Free Speed | 11500 rpm |
| Air consumption at free speed | 34 cfm |
| Length | 6.89 in |
| Weight | 3.75 lb |
| Output drive size | 3/8 |
| Output drive type | Sq |
| CP part # | 6151590550 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151590550
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
