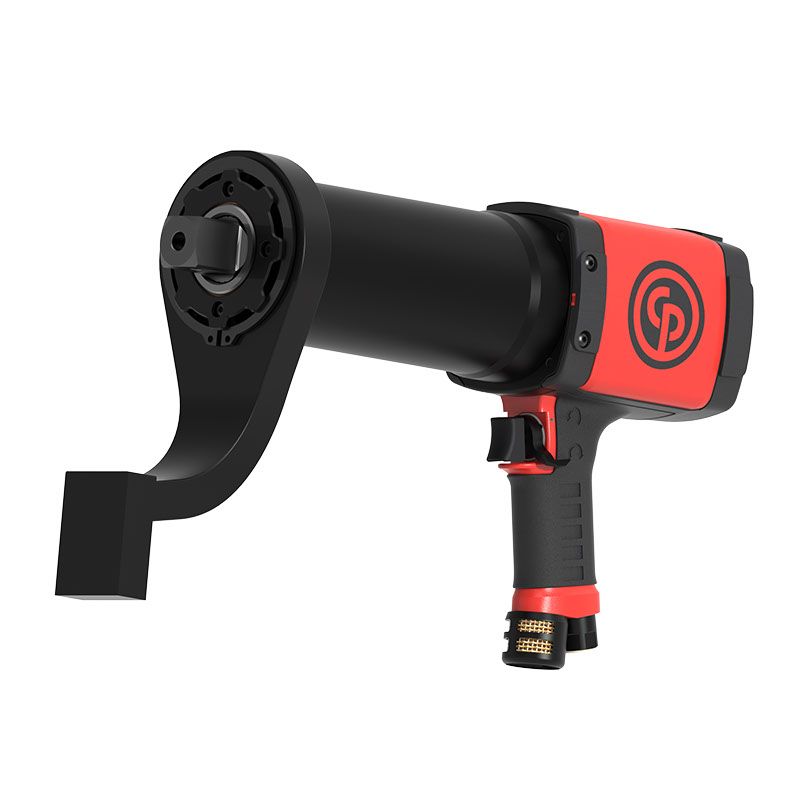

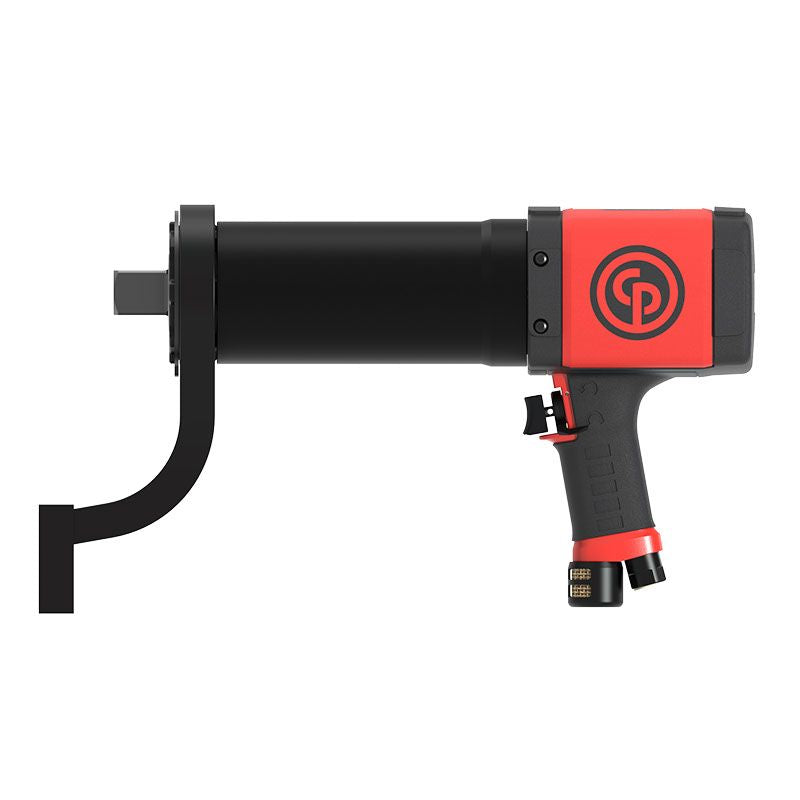

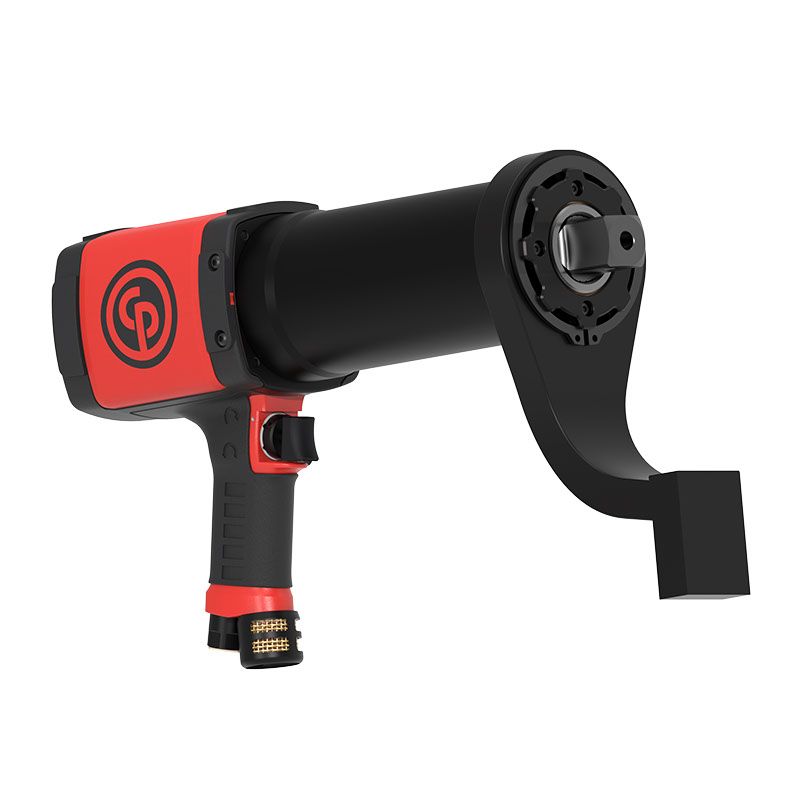

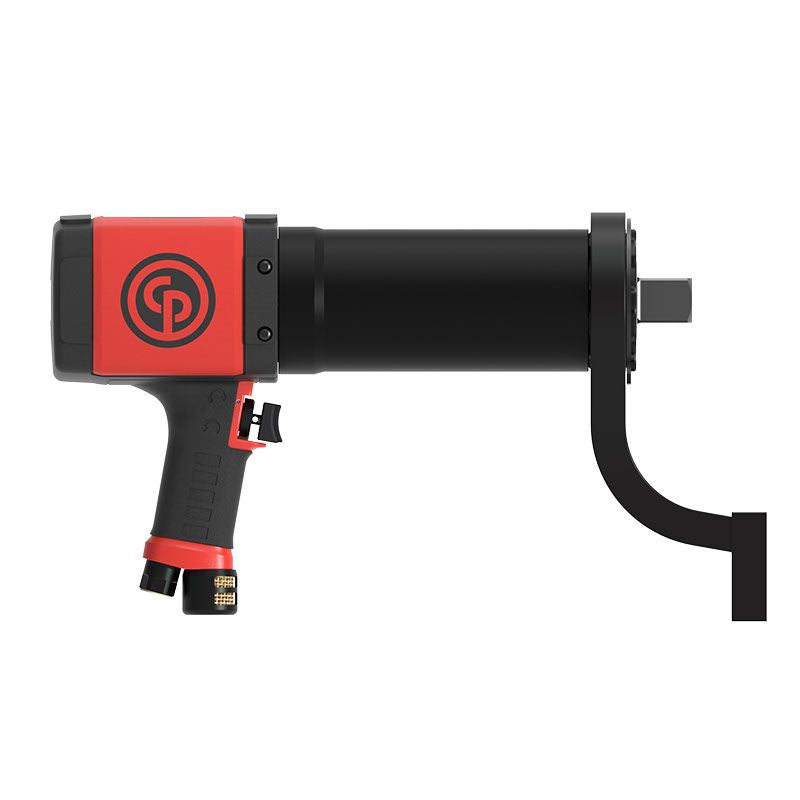

Chicago Pneumatic CP6641-FRL Pneumatic Nutrunner Pack – 6151800140

Description

1" stall torque pneumatic nutrunners + atc pack

Heavy duty bolting from 1000 Nm / 738 ft.lb to 4100 Nm / 3020 ft.lb with speed (10 rpm) and consistent accuracy (+/- 5%). Includes tool + S type reaction arm + ATC pack + hoses + nipple

Features

• Robust and compact tools for heavy duty bolting applications
• Accuracy, especially in combination with ATC pack including FRL unit
• High performance air motor for maximum speed
• Ergonomic and easy-to-use by one operator

Specifications

6s Torque scatter %	±5 %
Max torque in forward	3020 ft.lbf
Max torque reverse	3020 ft.lbf
Min torque in forward	738 ft.lbf
Torque Control System	Non shut-off-stall
Handle type	Pistol
Output drive size (in)	1
Output drive type	Sq
Reversible	Yes
Free Speed	10 rpm
Air consumption at free speed	65 cfm
Sound Power	101 dB(A)
Sound Pressure	90 dB(A)
Height (H)	8.98 in
Length (L)	14.21 in
Width (W)	3.94 in
Weight	19.4 lb
Weight with reaction arm	23.8 lb
Max dynamic air working pressure	90 psi
Air inlet thread size (in)	3/8
CP part #	6151800140

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
