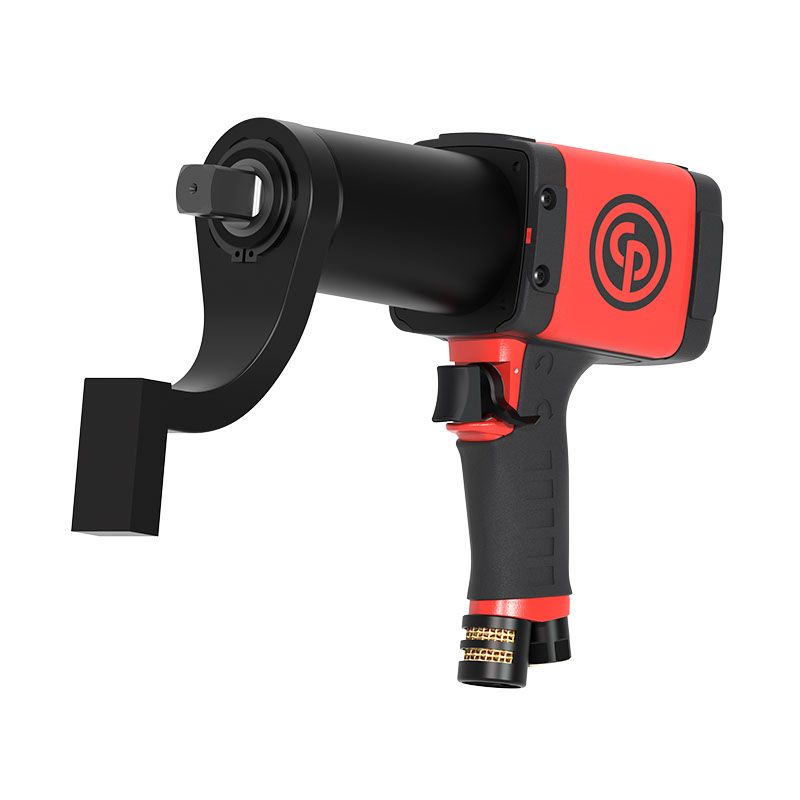

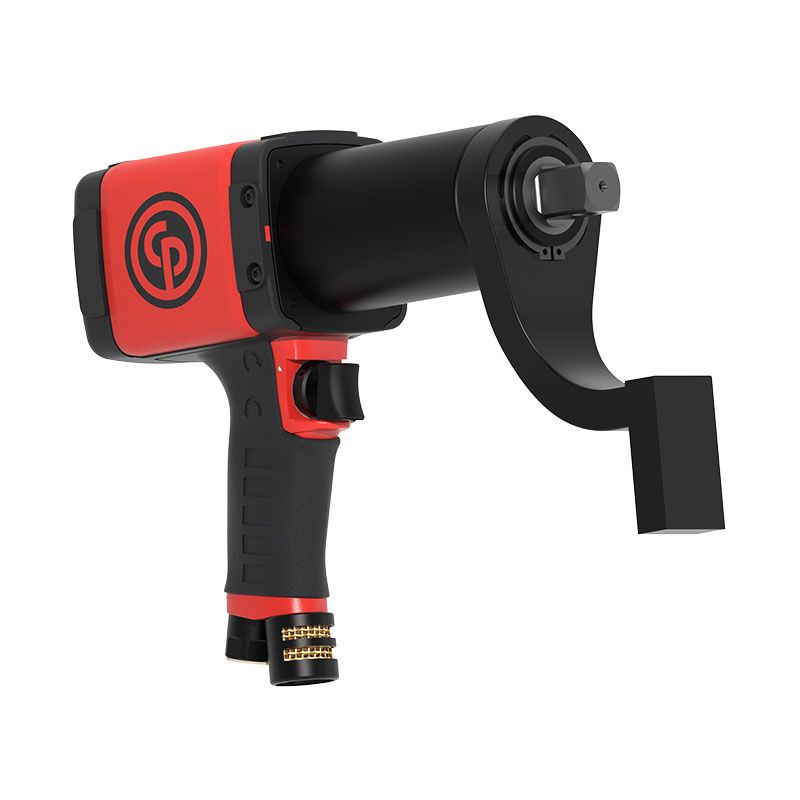

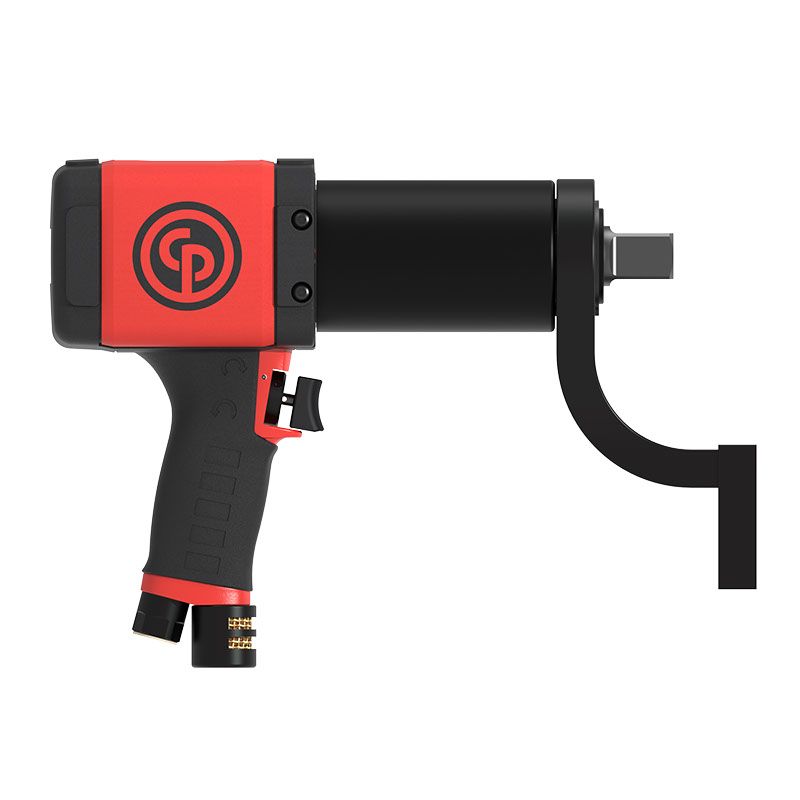

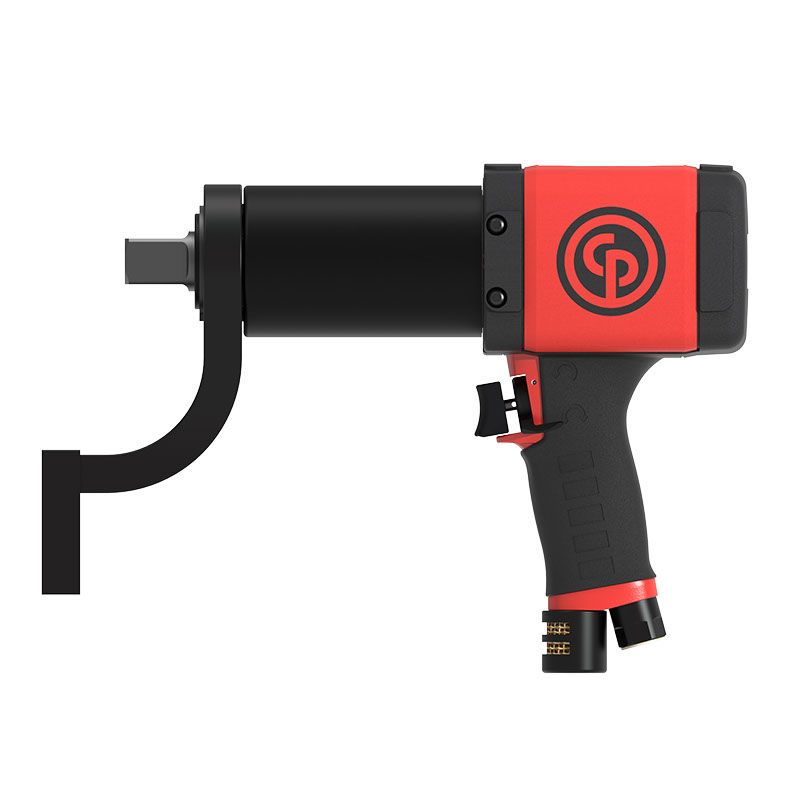

Chicago Pneumatic CP6613-FRL Pneumatic Nutrunner Pack – 6151800120

Description

3/4" stall torque pneumatic nutrunners + atc pack

Heavy duty bolting from 320 Nm / 235 ft.lb to 1300 Nm / 960 ft.lb with speed (20 rpm) and consistent accuracy (+/- 5%). Includes tool + S type reaction arm + ATC pack + hases + nipple

Features

• Robust and compact tools for heavy duty bolting applications
• Accuracy, especially in combination with ATC pack including FRL unit
• High performance air motor for maximum speed
• Ergonomic and easy-to-use by one operator

Specifications

6s Torque scatter %	±5 %
Max torque in forward	959 ft.lbf
Max torque reverse	959 ft.lbf
Min torque in forward	236 ft.lbf
Torque Control System	Non shut-off-stall
Handle type	Pistol
Output drive size (in)	3/4
Output drive type	Sq
Reversible	Yes
Free Speed	20 rpm
Air consumption at free speed	48 cfm
Sound Power	101 dB(A)
Sound Pressure	90 dB(A)
Height (H)	8.35 in
Length (L)	10 in
Width (W)	2.83 in
Weight	8.16 lb
Weight with reaction arm	9.7 lb
Max dynamic air working pressure	90 psi
CP part #	6151800120

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
