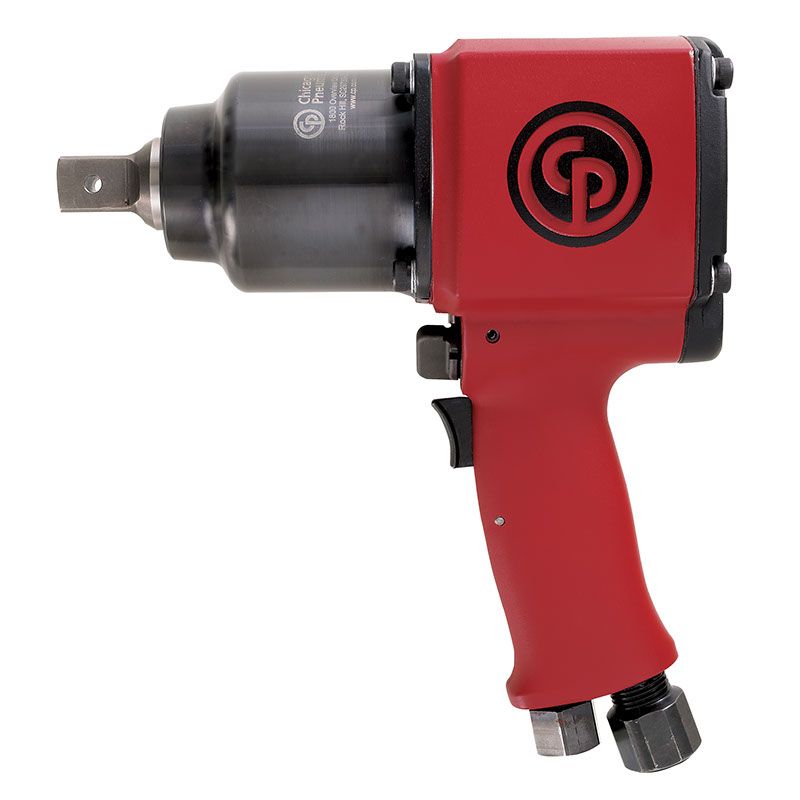

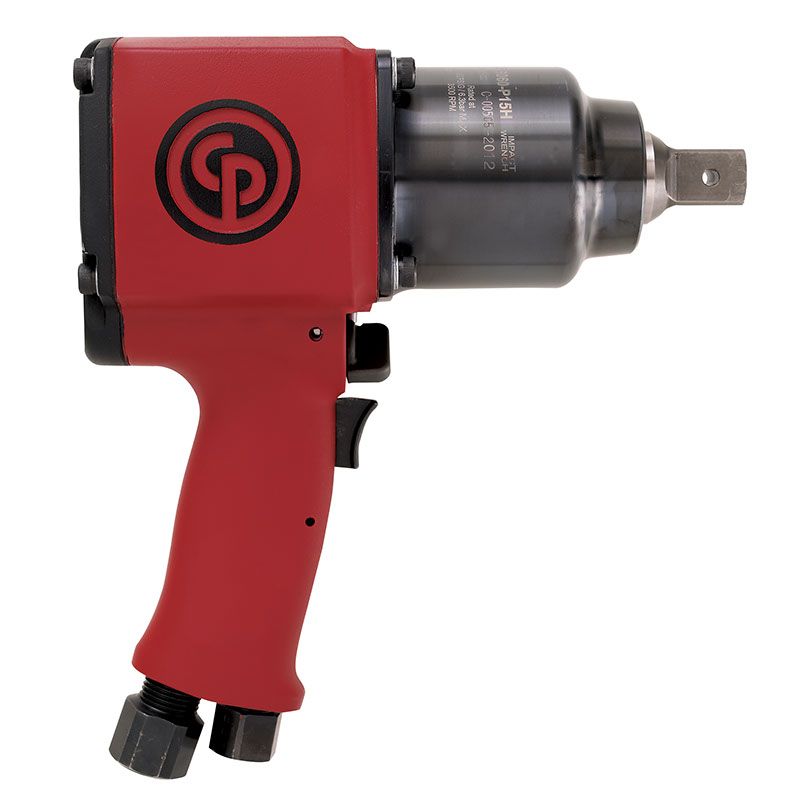

Chicago Pneumatic CP6070-P15H Impact Wrench 1" โ 6151590110
1" pistol pneumatic impact wrench
The CP6060-70 series impact wrench features a 3/4" and 1" square drive, and delivers reverse torque up to 1490 Nm / 1100 ft.lb. Designed with the 2-jaw clutch mechanism, aluminium body, and steel clutch housing, it provides strength and compactness to work comfortably in the most demanding industrial environments.
Features
- A very compact design to meet applications in very tight environments
- Reliable 2-jaw clutch mechanism for hard and soft joint application
- Low vibration feeling for operator comfort even at very high torque
- Aluminium body and robust steel clutch housing provides enhanced durability
- Hole type socket retainer with O-ring for safety
Specifications
| Max working torque fwd | 900 ft.lbf |
| Max torque reverse | 1100 ft.lbf |
| Min working torque fwd | 199 ft.lbf |
| Air inlet thread size | 3/8 |
| Max dynamic air working pressure | 90 psi |
| Sound Power | 103 dB(A) |
| Sound Pressure | 92 dB(A) |
| Vibration | 13.9 m/sยฒ |
| Free Speed | 4000 rpm |
| Air consumption at free speed | 74 cfm |
| Length | 8.94 in |
| Weight | 11.9 lb |
| Output drive size | 1 |
| Output drive type | Sq |
| Handle type | Pistol |
| Body | Aluminium |
| CP part # | 6151590110 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151590110
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
