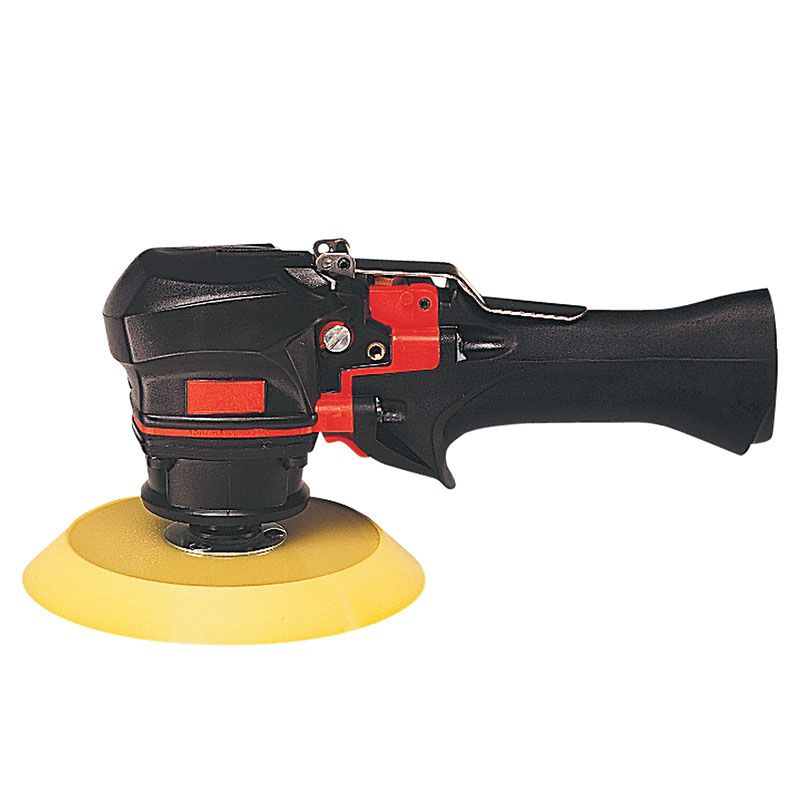

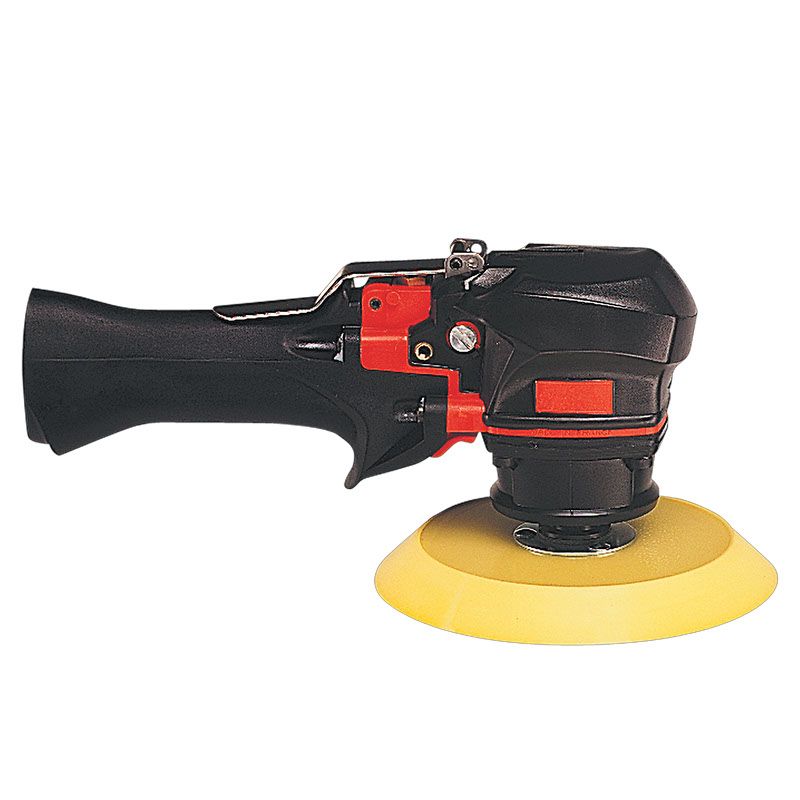

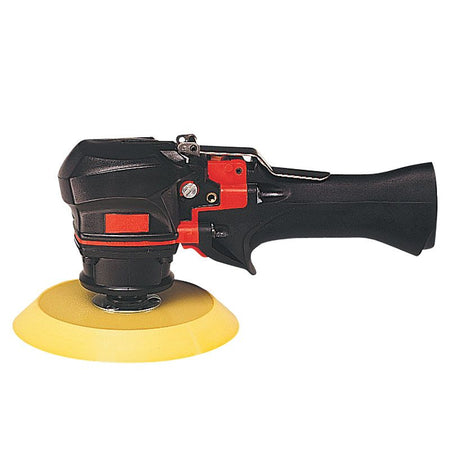

375W orbital sander for 6" (150mm) pads, 5/16" (8mm) orbit, non-vacuum.
Designed for industrial sanding, finishing, and pre-polishing tasks, the CP55 Series pneumatic orbital sander delivers efficient performance with its 0.5 hp (375 W) motor and excellent comfort thanks to its ergonomic palm-shaped soft grip. Available in various models: Non-Vacuum, Central Vacuum and Self Vacuum.
Features
- Maximum comfort: Ergonomic palm shape with soft grip for better control
- Powerful performance: 375 W (0.5 hp) motor for efficient sanding across demanding applications
- Superior finish: orbital motion delivers smooth and consistent surface preparation
- Integrated motor silencer
- 2000 operating hours with low maintenance
- Lubrication-free motor
Specifications
| Free Speed | 10000 rpm |
| Air consumption at free speed | 23 cfm |
| Max power | 0.5 hp |
| Sound Power | 94 dB(A) |
| Sound Pressure | 83 dB(A) |
| Vibration | 10.8 ft/sยฒ |
| Air consumption at load | 23 cfm |
| Air inlet thread size | 1/4 in |
| Air inlet thread type | BSP |
| Min hose diam (16 ft hose length) | 0.31 in |
| Circular Abrasive Pad Size | 6 in / 150 mm |
| Orbit Size | 5/16 in / 8 mm |
| Pad | Circular |
| Pad holes number | 0 |
| Palm grip | No |
| Starting system | Safety lever |
| Vacuum | Non vacuum |
| Height (H) | 4.72 in |
| Length (L) | 9.53 in |
| Weight | 3.09 lb |
| CP part # | 6151700780 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151700780
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
