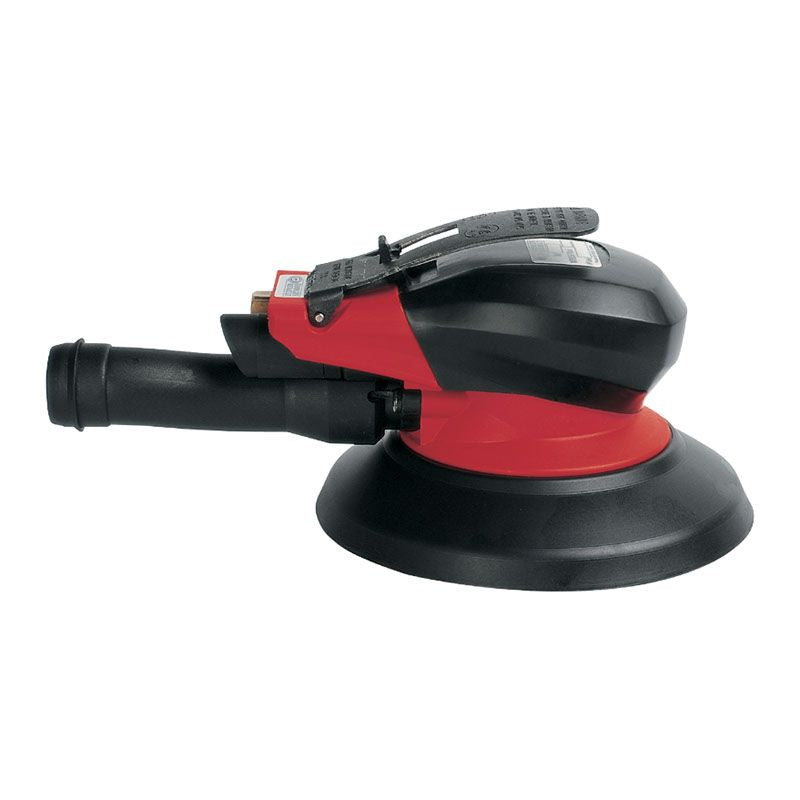

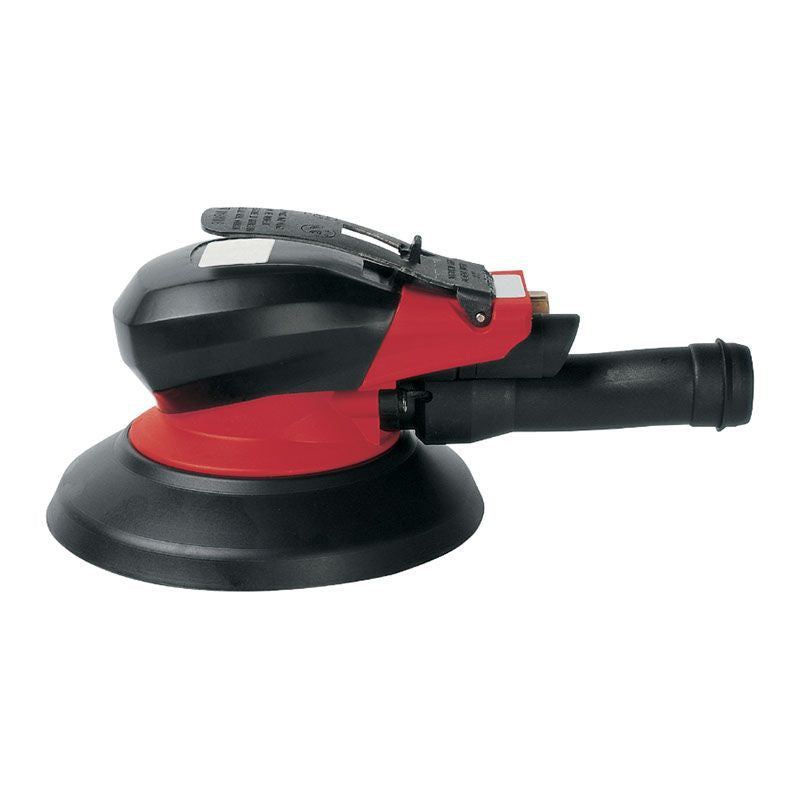

210W orbital sander for 5" (125mm) pads, 3/16" (5mm) orbit, central vacuum.
Designed for industrial sanding, finishing, and pre-polishing tasks, the CP53 Series pneumatic orbital sander delivers efficient performance with its 0.3 hp (210 W) motor and excellent comfort thanks to its ergonomic palm-shaped soft grip. Available in various models: Non-Vacuum, Central Vacuum and Self Vacuum.
Features
- Maximum comfort: Ergonomic palm shape with soft grip for better control
- Powerful performance: 210 W (0.3 hp) motor for efficient sanding across demanding applications
- Superior finish: orbital motion delivers smooth and consistent surface preparation
- Integrated motor silencer
- 2000 operating hours with low maintenance
- Lubrication-free motor
Specifications
| Free Speed | 12000 rpm |
| Air consumption at free speed | 17 cfm |
| Max power | 0.28 hp |
| Sound Power | 89 dB(A) |
| Sound Pressure | 78 dB(A) |
| Vibration | 12.8 ft/sยฒ |
| Air consumption at load | 17 cfm |
| Air inlet thread size | 1/4 in |
| Air inlet thread type | NPT |
| Min hose diam (16 ft hose length) | 0.25 in |
| Circular Abrasive Pad Size | 5 in (127 mm) |
| Orbit Size | 3/16 in (5 mm) |
| Pad | Circular |
| Palm grip | Yes |
| Starting system | Safety lever |
| Vacuum | Central vacuum |
| Height | 3.27 in |
| Length | 7.32 in |
| Weight | 1.76 lb |
| CP part # | 6151702160 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
