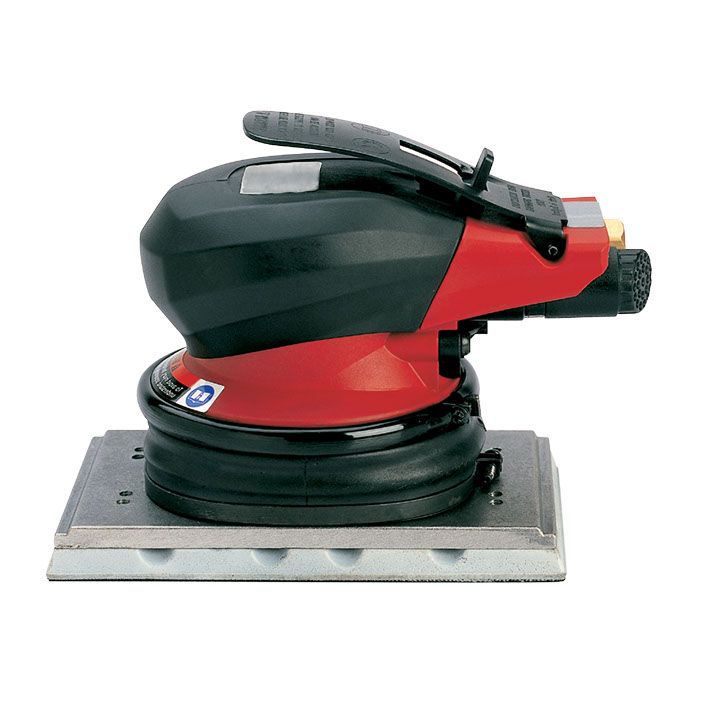

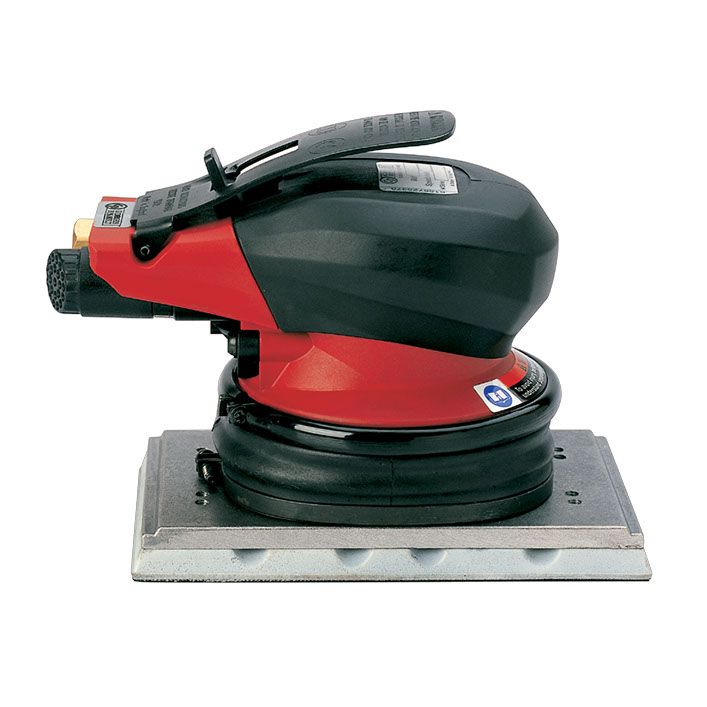

210W orbital sander for 3"x5" (80x130mm) pads, 3/32" (2.4mm) orbit, non-vacuum.
Designed for industrial sanding, finishing, and pre-polishing tasks, the CP53 Series pneumatic orbital sander delivers efficient performance with its 0.3 hp (210 W) motor and excellent comfort thanks to its ergonomic palm-shaped soft grip. Available in various models: Non-Vacuum, Central Vacuum and Self Vacuum.
Features
- Maximum comfort: Ergonomic palm shape with soft grip for better control
- Powerful performance: 210 W (0.3 hp) motor for efficient sanding across demanding applications
- Superior finish: orbital motion delivers smooth and consistent surface preparation
- Integrated motor silencer
- 2000 operating hours with low maintenance
- Lubrication-free motor
Specifications
| Pad holes number | 0 |
| Palm grip | Yes |
| Starting system | Safety lever |
| Vacuum | Non vacuum |
| Sound Power | 84 dB(A) |
| Sound Pressure | 73 dB(A) |
| Vibration (m/sยฒ) | <2.5 |
| Air consumption at load | 17 cfm |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | NPT |
| Min hose diam (16 ft hose length) | 0.25 in |
| Min hose diam (5 m hose length) | 6 mm |
| Max power | 0.28 hp |
| Height (H) | 3.74 in |
| Length (L) | 5 in |
| Weight | 2.2 lb |
| Free Speed | 10000 rpm |
| Air consumption at free speed | 2.8 cfm |
| CP part # | 6151702330 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151702330
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
