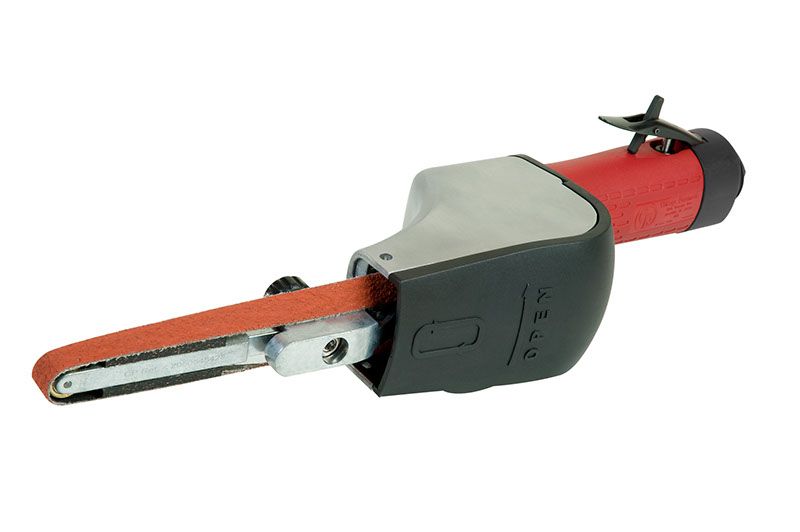

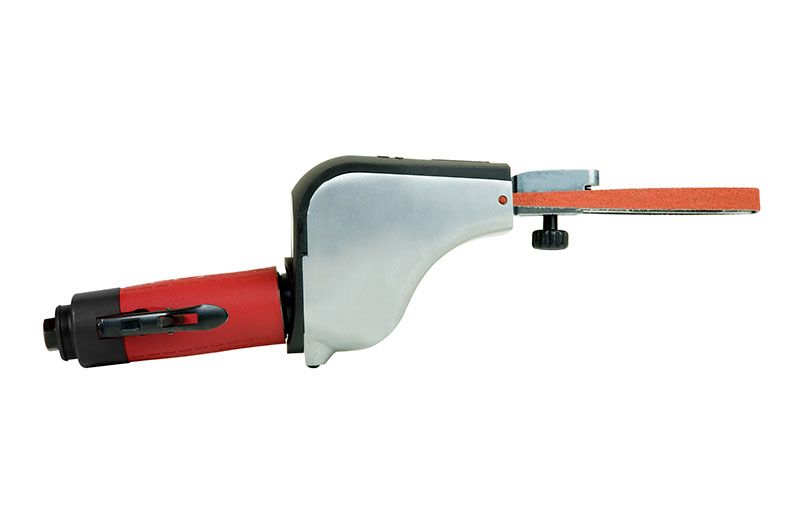

Chicago Pneumatic CP5080-4200D24 Belt Sander โ 6151620010
Regular price
$1,036.88 CAD
Model / Part #6151620010
Special Order Product · Delivery 1–2 WeeksDelivery is 1–2 weeks once your order is placed. Questions? Call 1-888-598-6657 or contact us.
Stock Item · Ships Within 2–3 Business DaysIn stock at TrueNorth — your order ships within 2–3 business days.
Free shipping on tools over $299.99Under $299.99, shipping is calculated at checkout · Shipping details
24"x1/2"(610x13 mm) PNEUMATIC BELT SANDER
Universal and versatile belt sander with 13x610mm (1/2x24") belt capacity
Features
- Sanding head pivots 360ยฐ for multi position sanding
- Easy change of abrasives and contact arm
- Simple and robust design
Specifications
| Length (L) | 15.35 in |
| Weight | 3.06 lb |
| Free Speed | 20000 rpm |
| Air consumption at free speed | 25 cfm |
| Air consumption at load | 45 cfm |
| Air inlet thread size | 1/4 in |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 90 psi |
| Max power | 0.54 hp |
| Belt Size (in) | 1/2x24 |
| Belt Size (mm) | 13x610 |
| Sound Power | 89 dB(A) |
| Sound Pressure | 78 dB(A) |
| Vibration | <2.5 m/sยฒ |
| CP part # | 6151620010 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151620010
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
