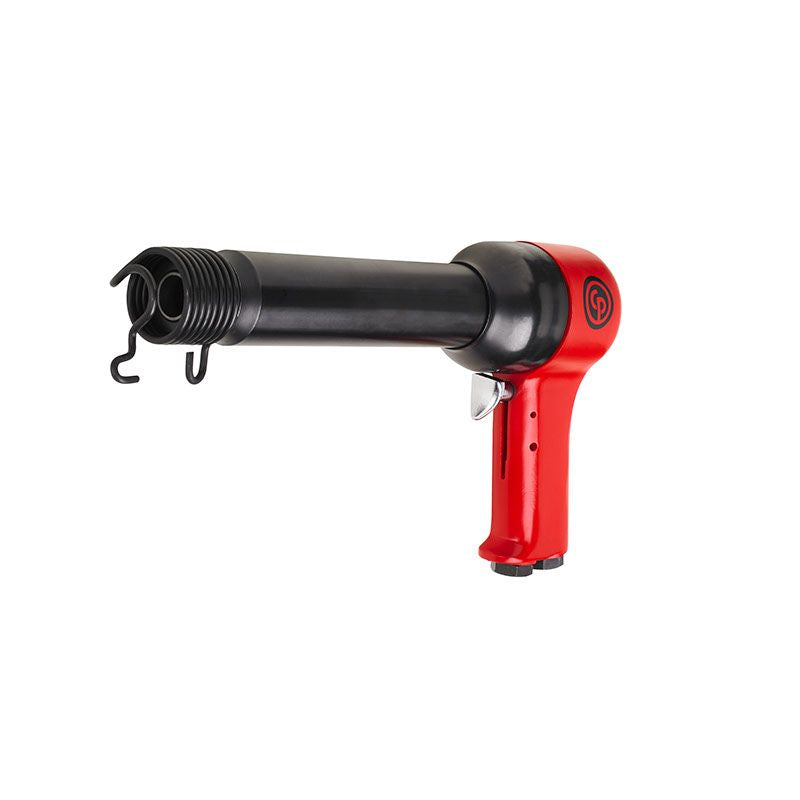

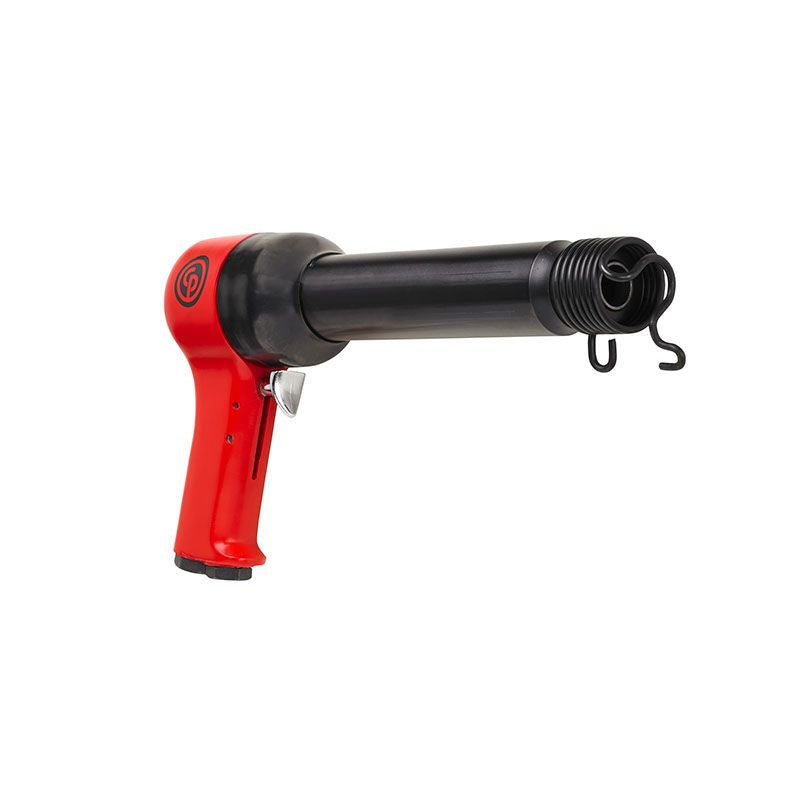

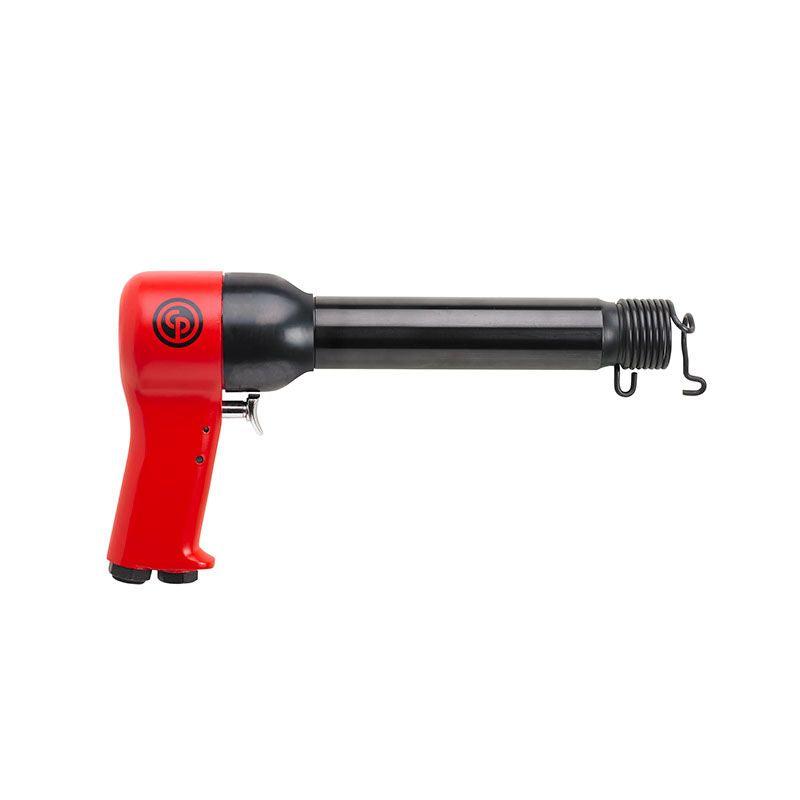

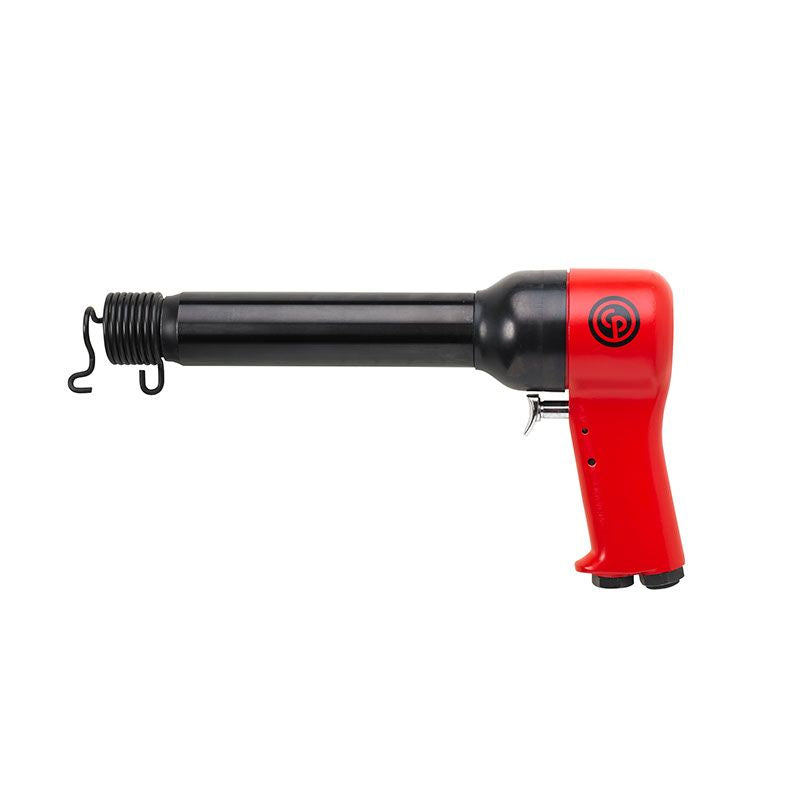

Type 9X PNEUMATIC RIVET HAMMER
A simple range for multiple aerospace application. From 1X up to 9X rivet hammer type to cover a majority of aluminum and steel rivet size. 7 models to cover all frequently used rivets in metal structure repair for Aerospace. Very good durability for aerospace MRO.
Features
- Simple range for multiple aerospace applications
- 1X up to 9X rivet hammer type covering majority of aluminum and steel rivet sizes
- 7 models covering all frequently used rivets in metal structure repair for Aerospace
- Very good durability for aerospace MRO
Specifications
| Rivet hammer type | 9X |
| Blow per minute | 900 |
| Energy | 19 J |
| Max rivet size aluminium | 3/8 in (9.5 mm) |
| Max rivet size steel | 5/16 in (7.9 mm) |
| Bore diameter | 0.75 in |
| Stroke | 5.2 in |
| Length | 11.18 in |
| Height | 6.31 in |
| Width | 2.5 in |
| Weight | 5.51 lb |
| Air inlet thread size | 1/4 NPT |
| Max dynamic air working pressure | 90 psi |
| Air consumption at free speed | 5.9 cfm (12.3 l/s Nl) |
| Sound Power | 113 dB(A) |
| Sound Pressure | 102 dB(A) |
| Vibration | 87.6 ft/sยฒ |
| CP part # | 6151740650 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151740650
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
