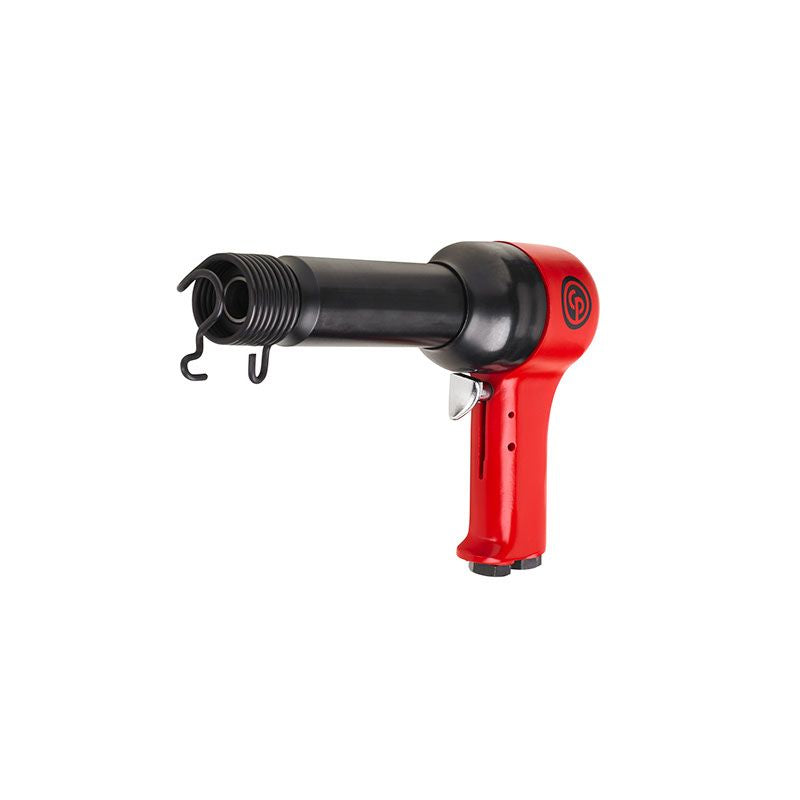

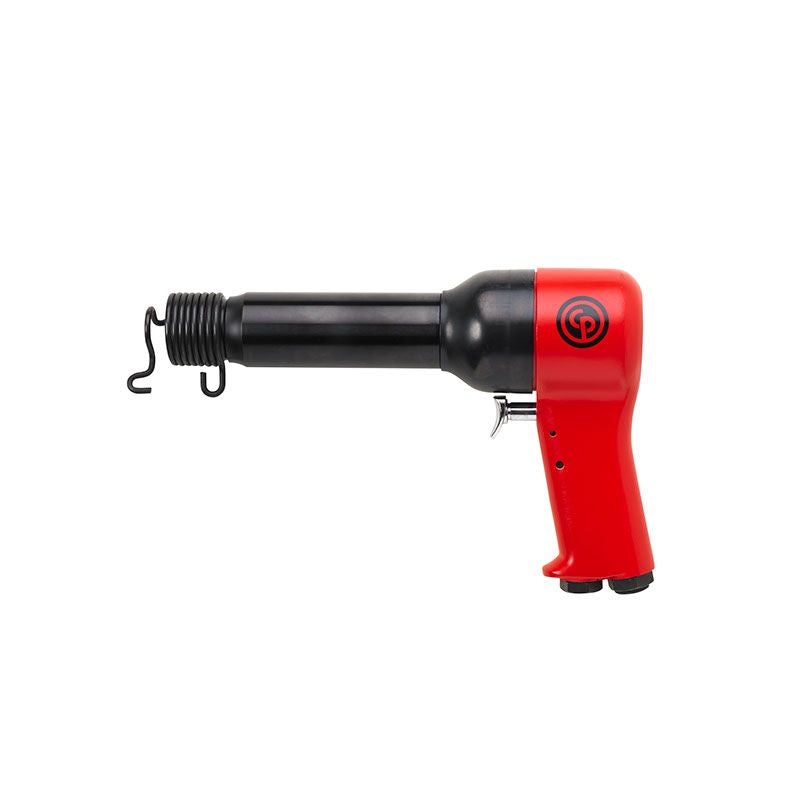

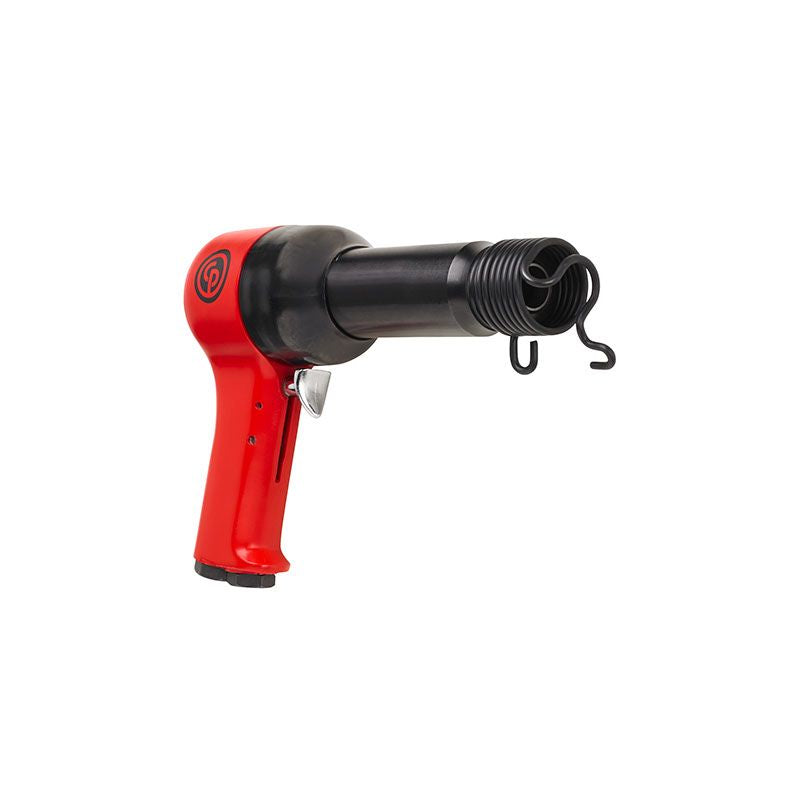

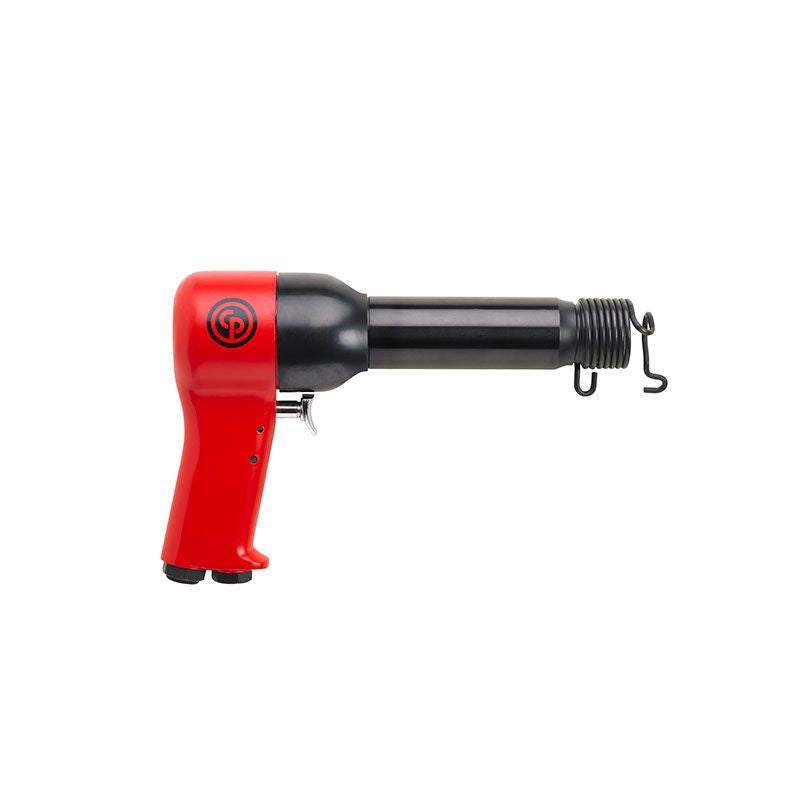

Chicago Pneumatic CP4287 Rivet Hammer – 6151740640

Description

Type 7X PNEUMATIC RIVET HAMMER

A simple range for multiple aerospace application. From 1X up to 9X rivet hammer type to cover a majority of aluminum and steel rivet size. 7 models to cover all frequently used rivets in metal structure repair for Aerospace. Very good durability for aerospace MRO.

Features

• Simple range for multiple aerospace applications
• 7 models (1X up to 9X) covering majority of aluminum and steel rivet sizes
• All frequently used rivets in metal structure repair for Aerospace
• Very good durability for aerospace MRO

Specifications

Rivet hammer type	7X
Air consumption at free speed	12.3 1/sNl
Air consumption at free speed	5.9 cfm
Air inlet thread size	1/4 in
Air inlet thread type	NPT
Max dynamic air working pressure	90 psi
Sound Power	114 dB(A)
Sound Pressure	103 dB(A)
Bore diameter	0.75 in
Height	6.31 in
Length	10.08 in
Width	2.5 in
Stroke	3.86 in
Weight	5.29 lb
Blow per minute	1140
Chisel shank diameter	0.498 in / 12.7 mm
Energy	13 J
Max rivet size aluminium	5/16 in / 7.9 mm
Max rivet size steel	1/4 in / 6.4 mm
Starting system	Trigger
CP part #	6151740640

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
