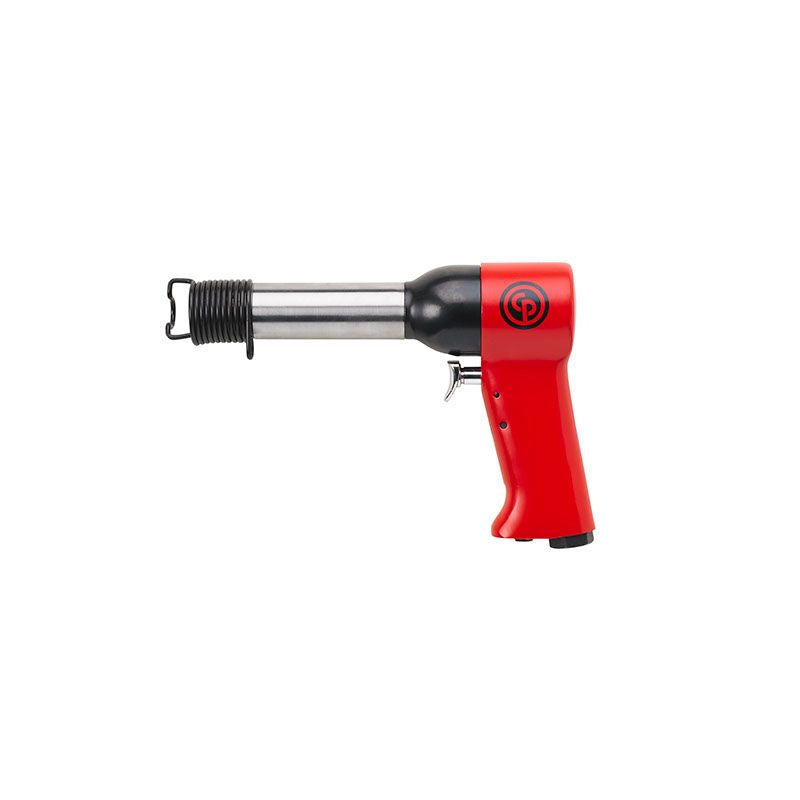

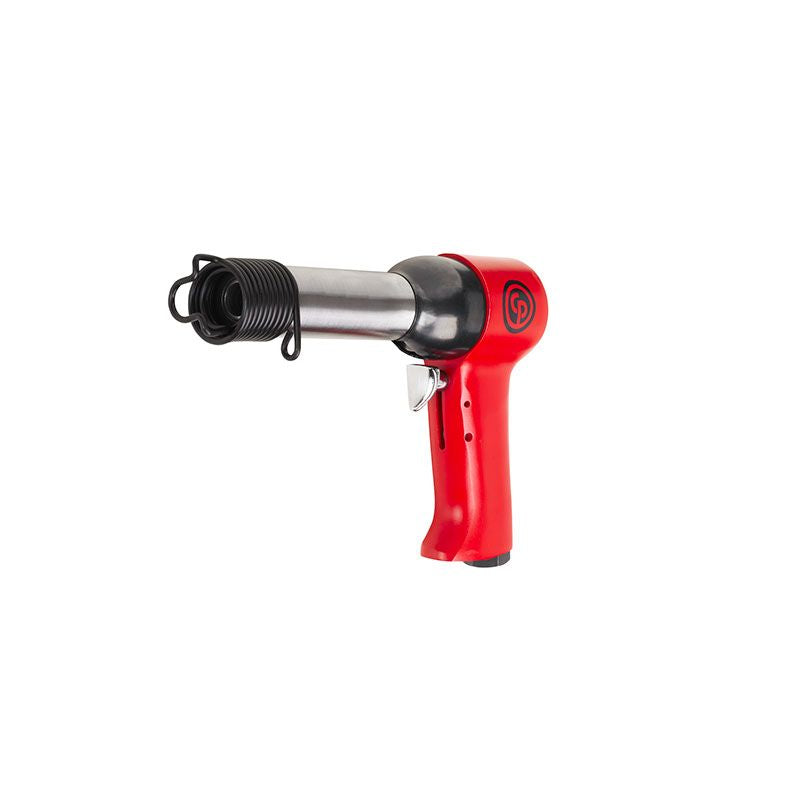

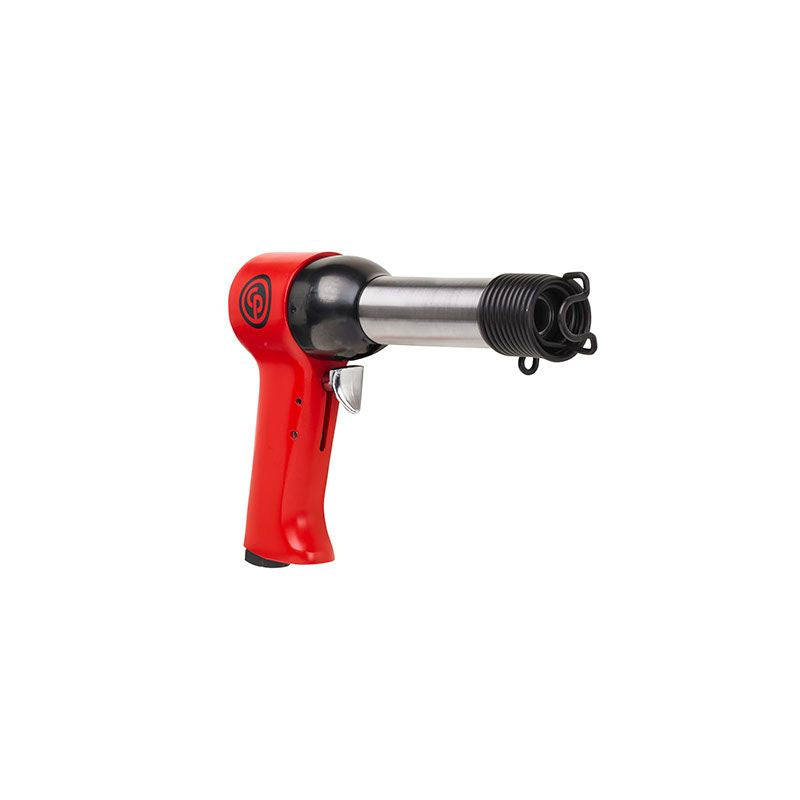

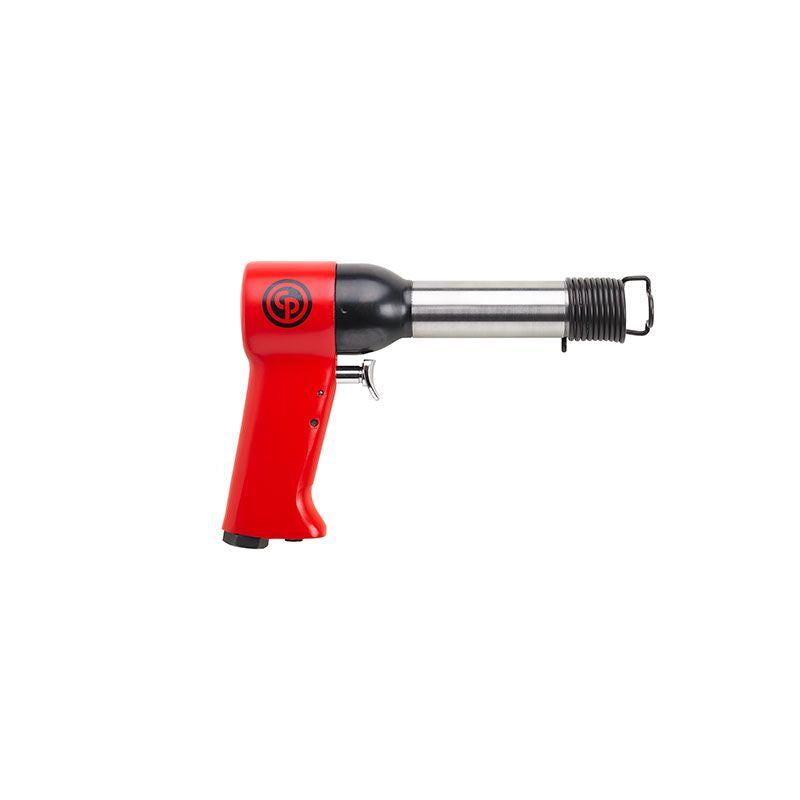

Chicago Pneumatic CP4284 Rivet Hammer – 6151740620

Description

Type 4X PNEUMATIC RIVET HAMMER

Take advantage of the CP rivet hammers solution covering the most frequent riveting application in metal structure for aerospace. The CP42 rivet hammer series is defined by 7 models (1X,2X,3X,4X,5X,7X,9X).

Features

• A simple range for multiple aerospace application
• From 1X up to 9X rivet hammer type to cover a majority of aluminum and steel rivet size
• 7 models to cover all frequently used rivets in metal structure repair for Aerospace
• Very good durability for aerospace MRO.

Specifications

Air consumption at free speed (Normo)	5.2 1/sNl
Air consumption at free speed	4 cfm
Air inlet thread size (in)	1/4
Air inlet thread type	NPT
Max dynamic air working pressure	90 psi
Min hose diam (16 ft hose length)	0.38 in
Min hose diam (5 m hose length)	9.5 mm
Sound Power	108 dB(A)
Sound Pressure	97 dB(A)
Uncertainty vibration-K	8.9 ft/s²
Vibration	42.3 ft/s²
Bore diameter	0.5 in
Height (H)	5.62 in
Length (L)	8.31 in
Width (W)	2 in
Stroke	3.07 in
Weight	3.06 lb
Blow per minute	1740
Chisel shank diameter (in)	0.401
Chisel shank diameter (mm)	10.2
Energy	4.6 J
Main Material type	Aluminium, Steel
Max rivet size aluminium (in)	1/4
Max rivet size aluminium (mm)	6.4
Max rivet size steel (in)	3/16
Max rivet size steel (mm)	4.8
Rivet hammer type	4X
Starting system	Trigger
CP part #	6151740620
