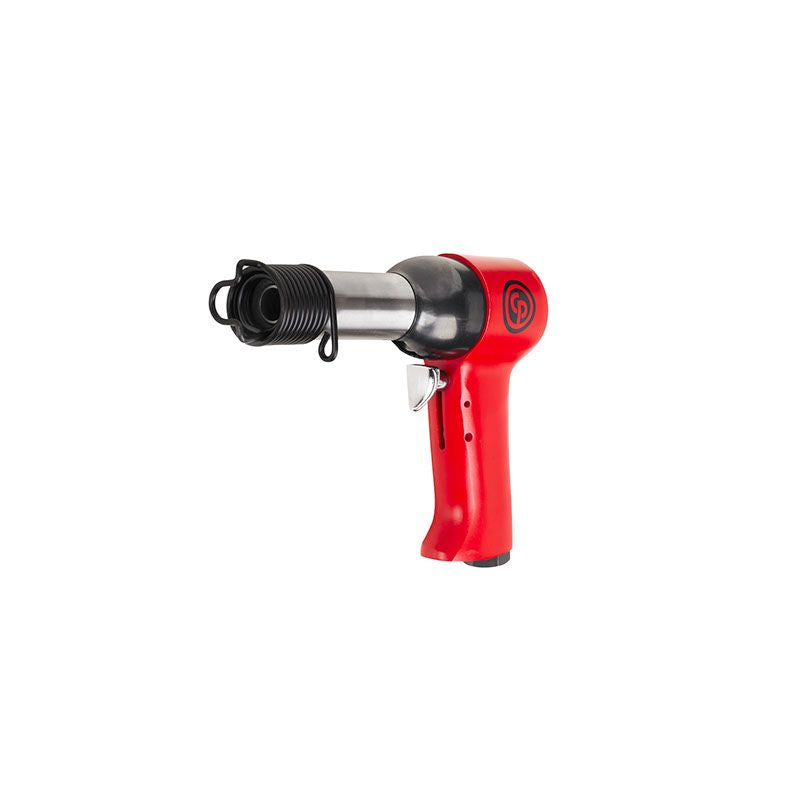

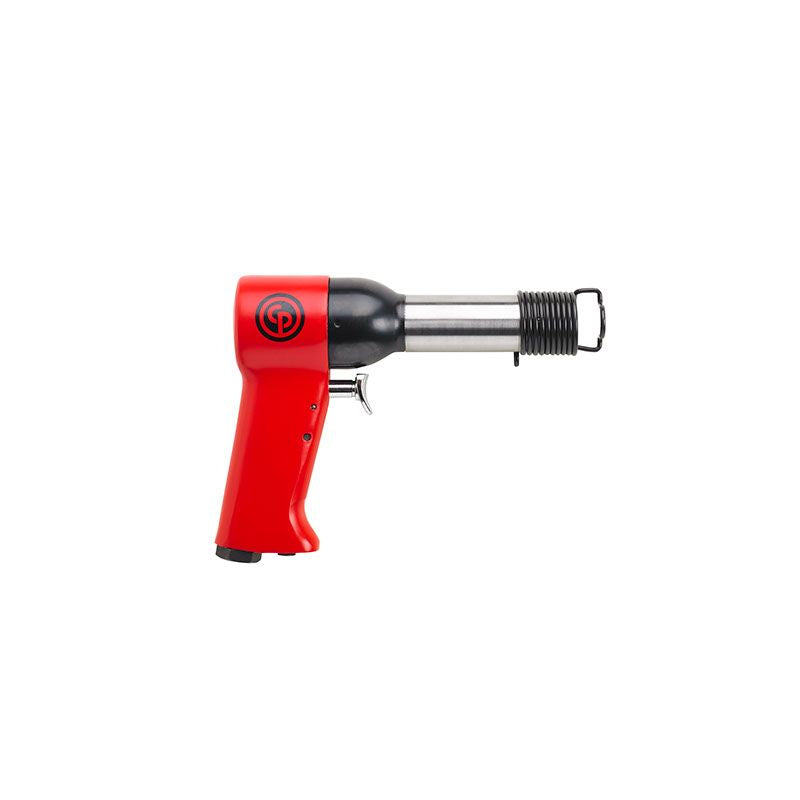

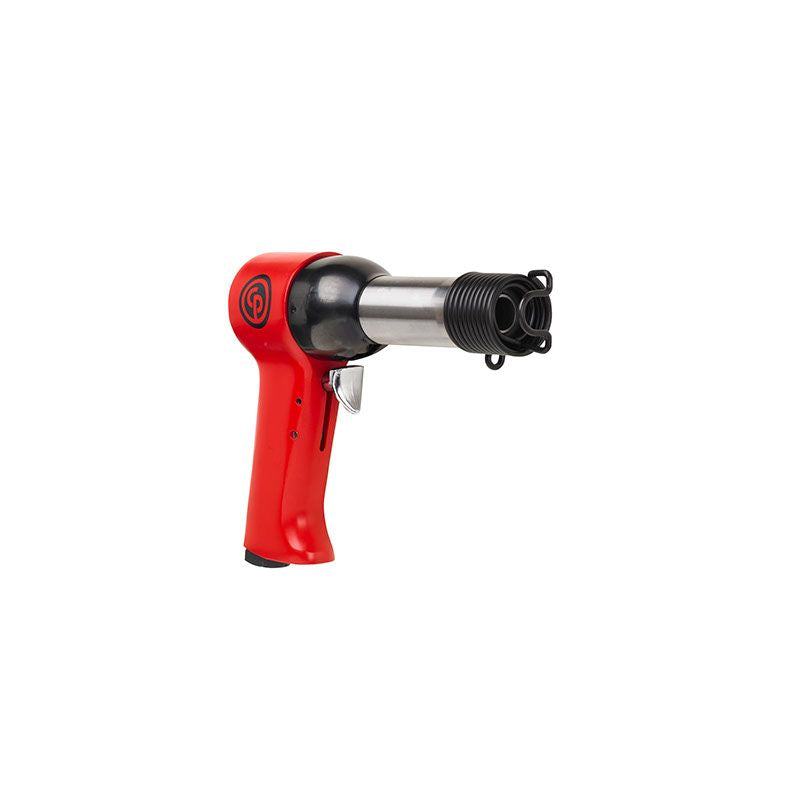

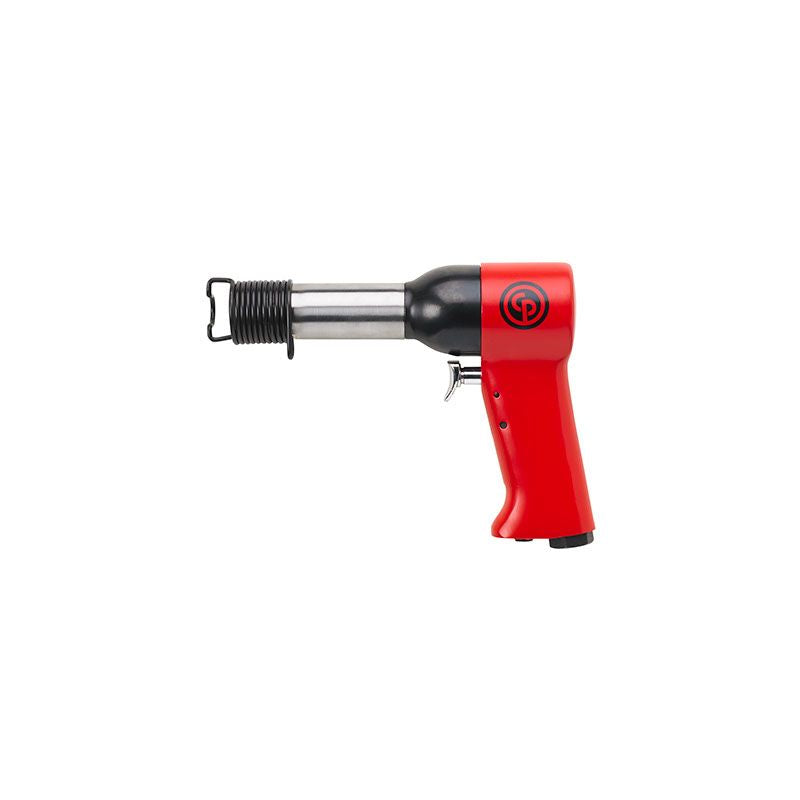

Type 3X PNEUMATIC RIVET HAMMER
A simple range for multiple aerospace application. From 1X up to 9X rivet hammer type to cover a majority of aluminum and steel rivet size. 7 models to cover all frequently used rivets in metal structure repair for Aerospace. Very good durability for aerospace MRO.
Features
- Simple range for multiple aerospace applications
- 7 models (1X to 9X) covering aluminum and steel rivet sizes
- Designed for frequent riveting applications in metal structures
- Superior durability for aerospace maintenance, repair, and overhaul
Specifications
| Air consumption at free speed | 4 cfm |
| Air inlet thread size | 1/4 in NPT |
| Max dynamic air working pressure | 90 psi |
| Sound Power | 107 dB(A) |
| Sound Pressure | 96 dB(A) |
| Vibration | 38.4 ft/sยฒ |
| Weight | 3 lb |
| Bore diameter | 0.5 in |
| Stroke | 2.87 in |
| Length | 7.32 in |
| Height | 5.62 in |
| Width | 2 in |
| Blow per minute | 2160 |
| Energy | 4.3 J |
| Max rivet size aluminum | 3/16 in (4.8 mm) |
| Max rivet size steel | 5/32 in (4 mm) |
| Rivet hammer type | 3X |
| CP part # | 6151740610 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151740610
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
