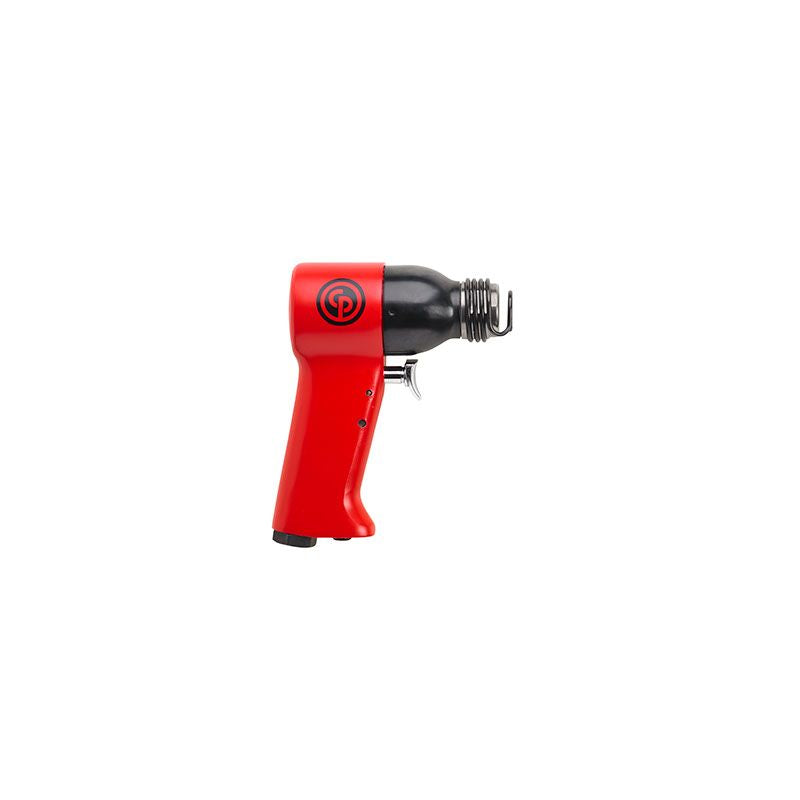

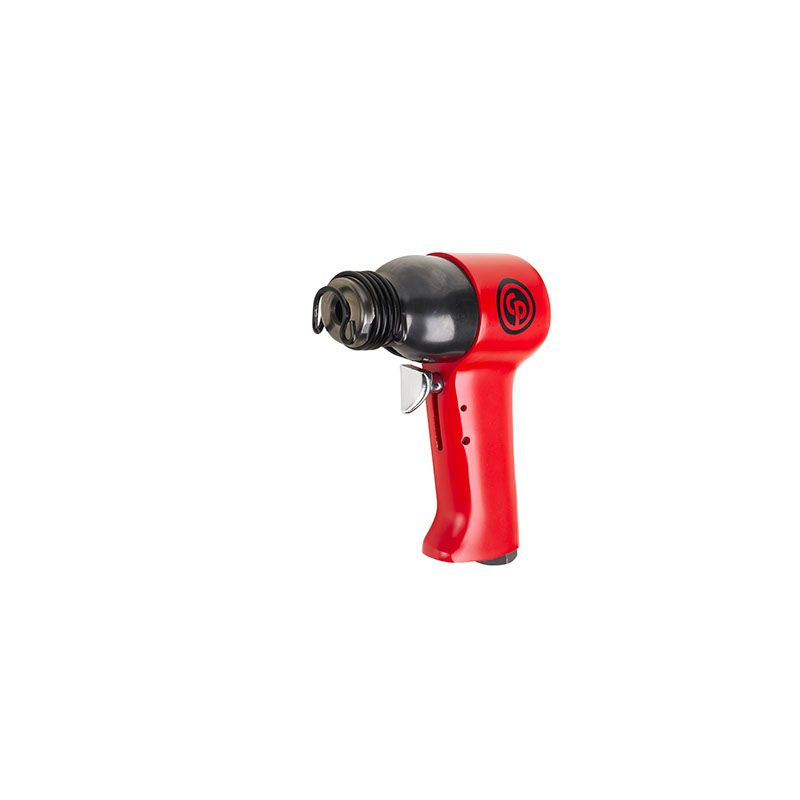

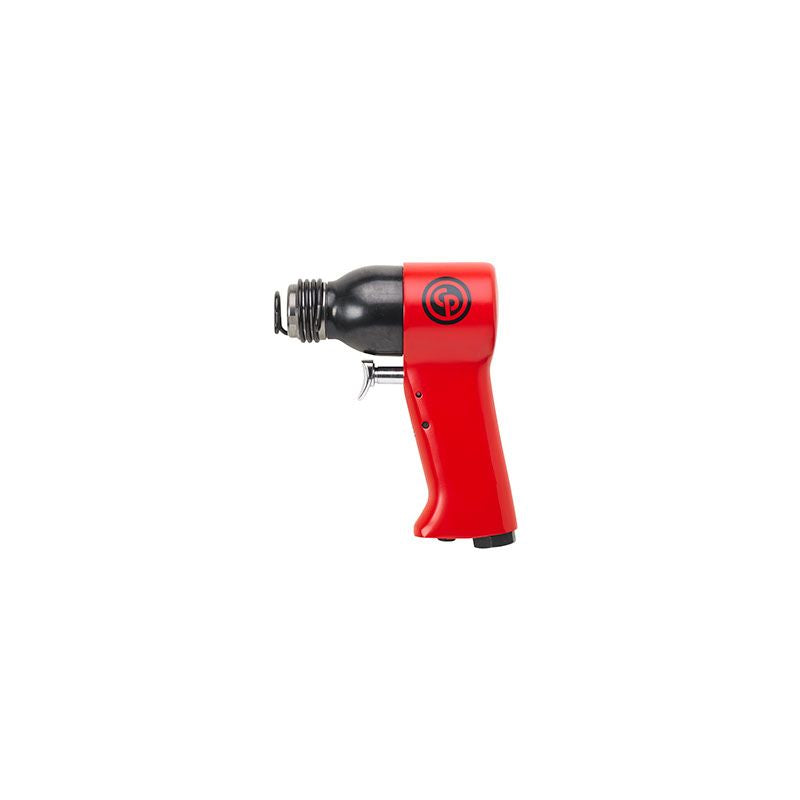

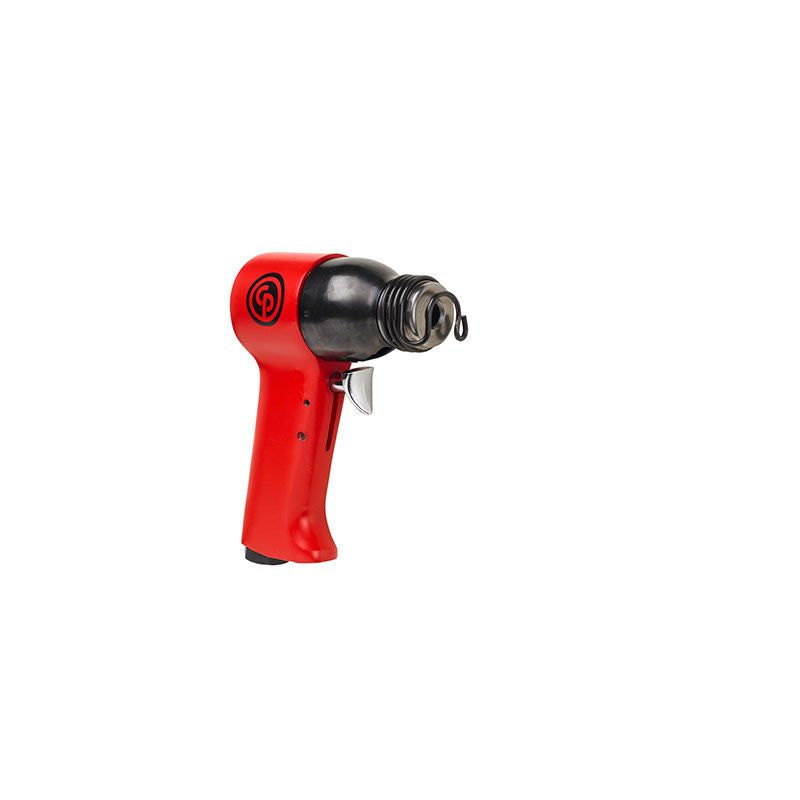

Chicago Pneumatic CP4281 Rivet Hammer – 6151740590

Description

Type 1X Pneumatic Rivet Hammer

Take advantage of the CP rivet hammers solution covering the most frequent riveting application in metal structure for aerospace. The CP42 rivet hammer series is defined by 7 models (1X,2X,3X,4X,5X,7X,9X).

Features

• Pneumatic rivet hammer
• Suitable for aerospace applications
• 7 models available (1X,2X,3X,4X,5X,7X,9X)
• High durability for metal structure repair

Specifications

Speed	Air consumption at free speed (Normo) 5.2 1/sNl
Air consumption at free speed	4 cfm
Air inlet thread size	1/4 in
Air inlet thread type	NPT
Max dynamic air working pressure	90 psi
Min hose diam (16 ft hose length)	0.38 in
Min hose diam (5 m hose length)	9.5 mm
Sound Power	107 dB(A)
Sound Pressure	96 dB(A)
Uncertainty vibration-K	8.2 ft/s²
Vibration	37.4 ft/s²
Bore diameter	0.56 in
Height (H)	5.62 in
Length (L)	4.53 in
Width (W)	2 in
Stroke	1.38 in
Weight	2.34 lb
Blow per minute	2850
Chisel shank diameter (in)	0.401
Chisel shank diameter (mm)	10.2
Energy	2.6 J
Main Material type	Aluminium, Steel
Max rivet size aluminium (in)	1/8
Max rivet size aluminium (mm)	3.2
Rivet hammer type	1X
Starting system	Trigger
CP part #	6151740590

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
