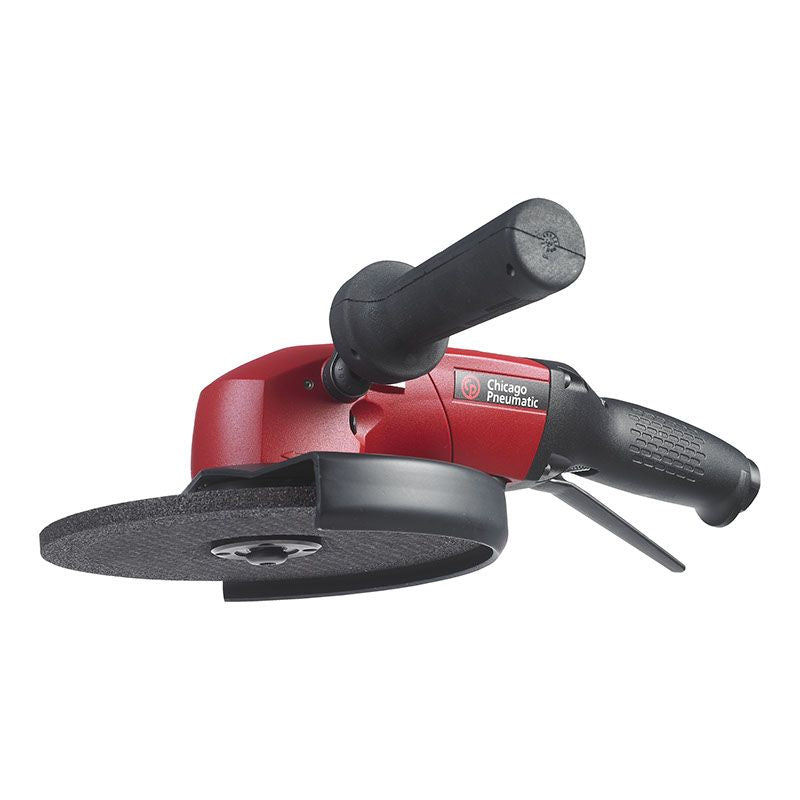

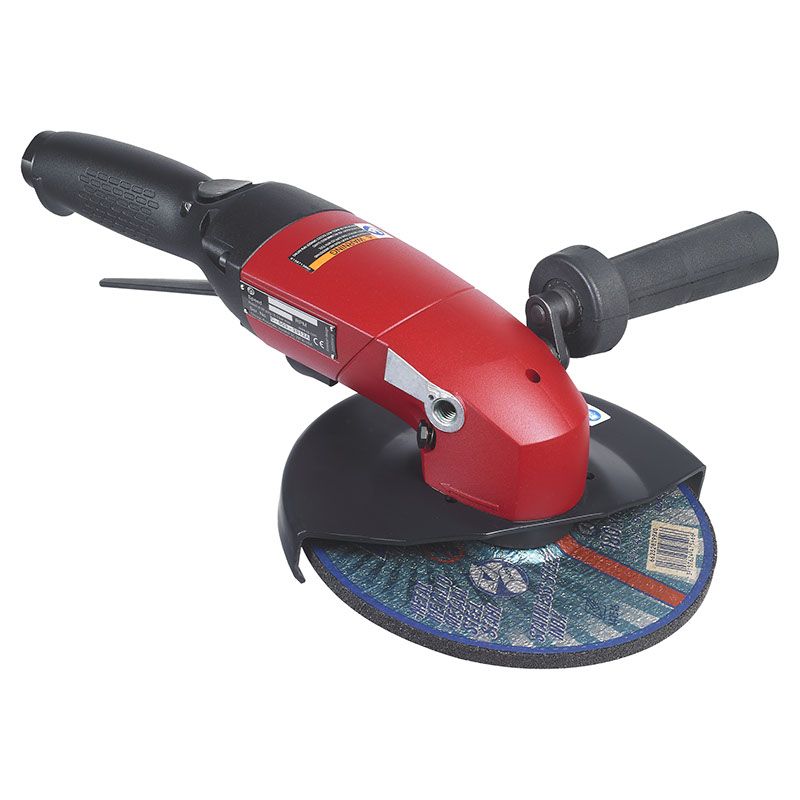

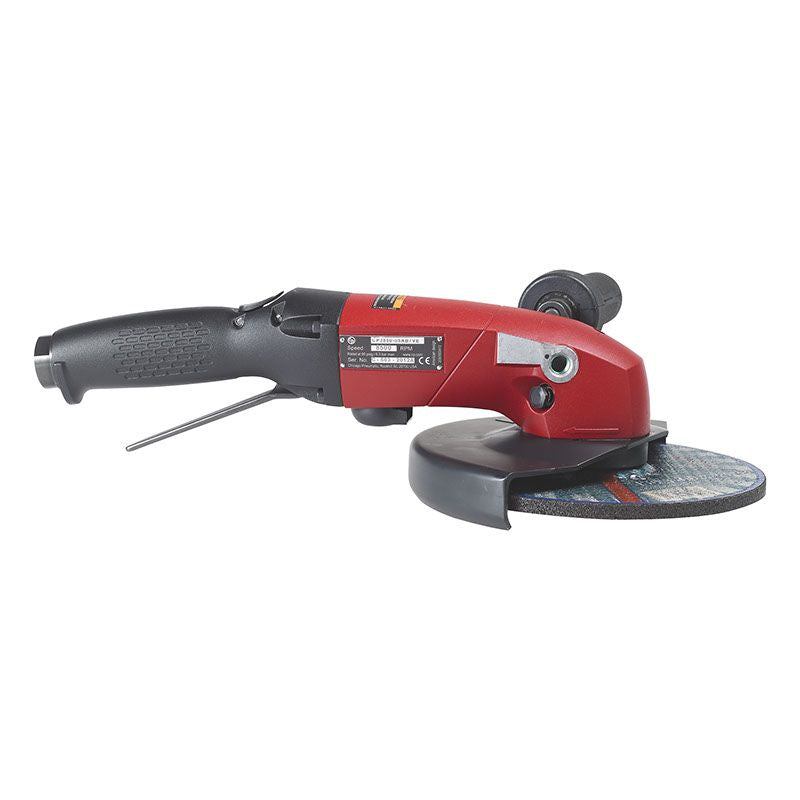

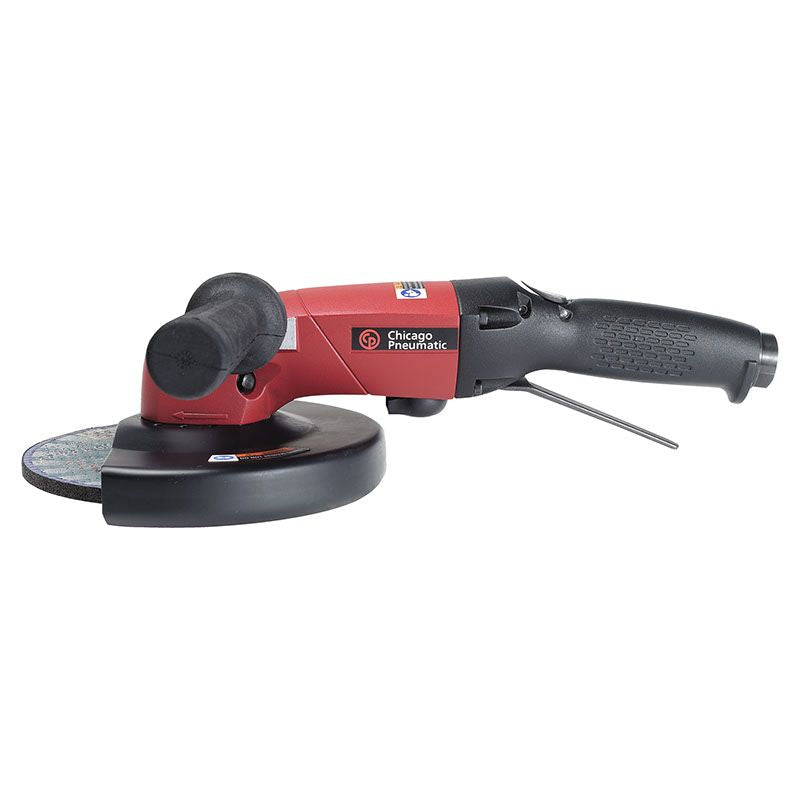

Chicago Pneumatic CP3850-85AH7VE Angle Grinder 7'' - Hex โ 6151704930
7" (180 mm) Pneumatic Angle Grinder
The CP3850 Series angle grinder is a rugged and durable tool ideal for rough industrial use including grinding, cutting, contouring, deburring, and weld cleaning. It features ergonomic handling thanks to its curved design, ensuring comfort and safety during operation.
Features
- 2.8 hp (2100 W) motor
- Free speed of 6,500 to 8,500 rpm
- Ergonomic handling
- 360ยฐ exhaust muffler
- Multi-position guard
- Spindle lock button
- Available for 7โ and 9โ wheels
- 5/8-11' or Hex spindle thread options
Specifications
| Speed | Free Speed 8500 rpm |
| Air consumption at free speed | 36 cfm |
| Autobalancer | Yes |
| Guard max rotation | 150 ยฐ |
| Guard positions | 7 |
| Main Material type | Aluminium |
| Rotative guard type | Screws |
| Spindle lock | Yes |
| Starting system | Safety lever |
| Swiveling guard | Key |
| Wheel/Disc diameter (in) | 7 |
| Wheel/Disc diameter (mm) | 180 |
| Sound Power | 98 dB(A) |
| Sound Pressure | 87 dB(A) |
| Uncertainty vibration-K | 3.3 ft/sยฒ |
| Vibration | 17.7 ft/sยฒ |
| Air consumption at load | 76 cfm |
| Air inlet thread size (in) | 1/2 |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 90 psi |
| Min hose diameter (16 ft hose length) | 0.63 in |
| Min hose diameter (5 m hose length) | 16 mm |
| Max power | 2.82 hp |
| Length (L) | 13.39 in |
| Side to Center | 1.14 in |
| Weight | 5.95 lb |
| CP part # | 6151704930 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151704930
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
