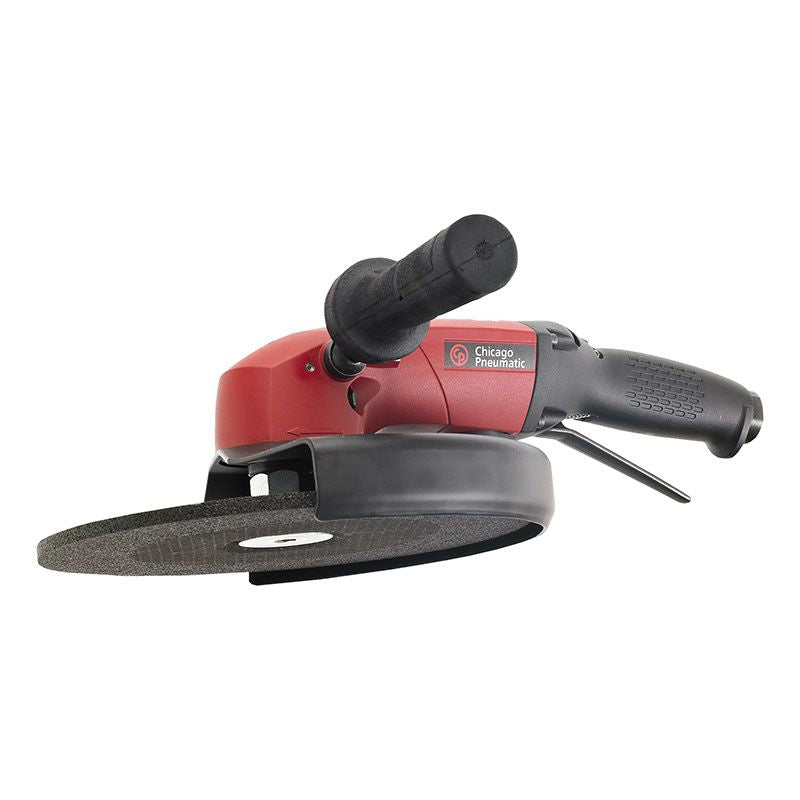

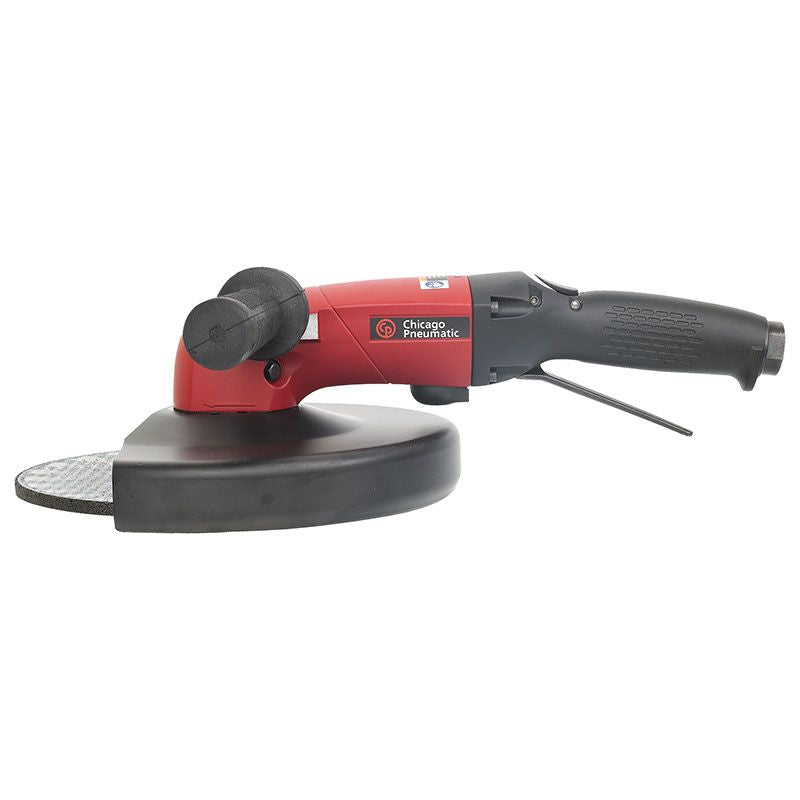

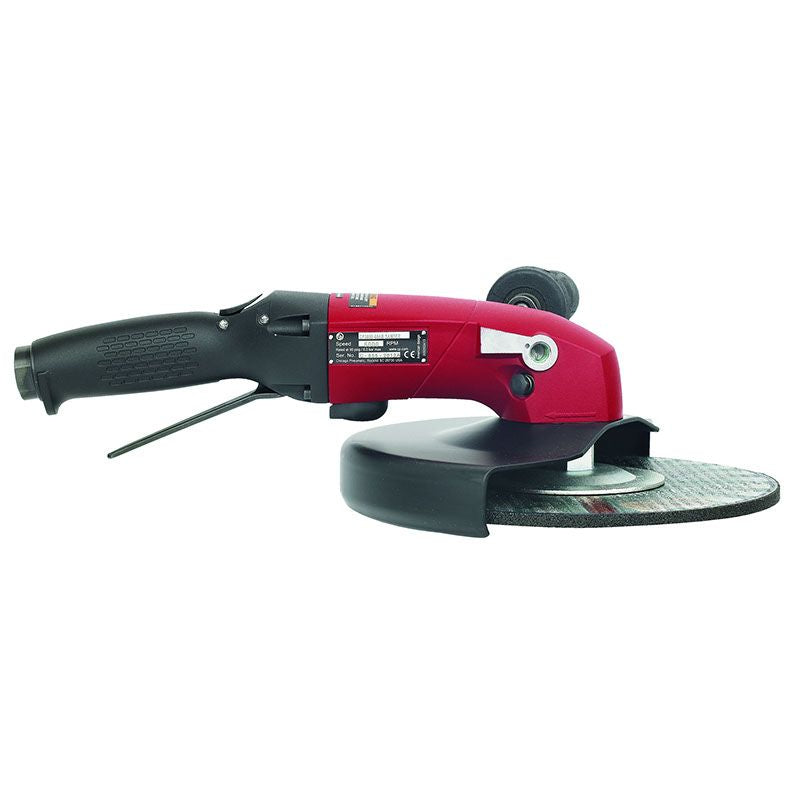

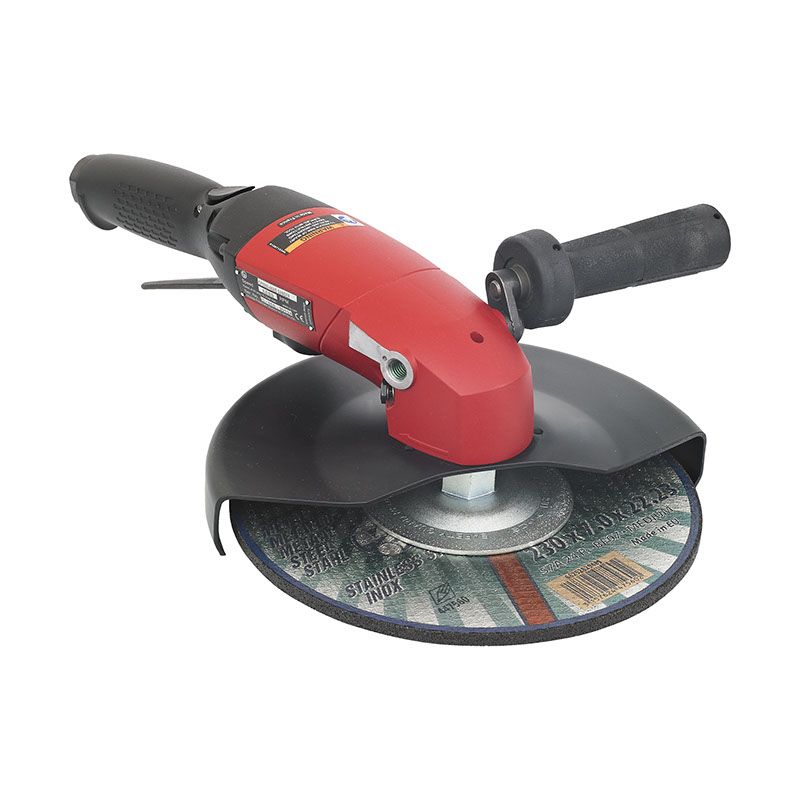

Chicago Pneumatic CP3850-60AB9V Angle Grinder 9" โ 6151607340
9" (230 mm) Pneumatic Angle Grinder
The CP3850 Series angle grinder is a rugged and durable tool with a regulated 2.8 hp (2100 W) motor and free speed ranging from 6,500 to 8,500 rpm. It is designed for rough industrial use such as grinding, cutting, contouring, deburring, and weld cleaning, while ensuring ergonomic handling and comfort for the user.
Features
- Ergonomic handling with curved design
- 360ยฐ exhaust muffler
- Multi-position guard
- Spindle lock button
Specifications
| Free Speed | 6000-8500 rpm |
| Air Consumption at Free Speed | 44 cfm |
| Guard Maximum Rotation | 150 ยฐ |
| Guard Positions | 7 |
| Main Material Type | Aluminium, Composite over-sleeve |
| Output Spindle Thread | 5/8-11 UNC |
| Rotative Guard Type | Screws |
| Spindle Lock | Yes |
| Starting System | Safety lever |
| Swiveling Guard | Key |
| Wheel/Disc Diameter | 9 in (230 mm) |
| Sound Power | 104 dB(A) |
| Sound Pressure | 93 dB(A) |
| Vibration | 22.3 ft/sยฒ |
| Max Power | 2.82 hp |
| Weight | 7.05 lb |
| CP part # | 6151607340 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
