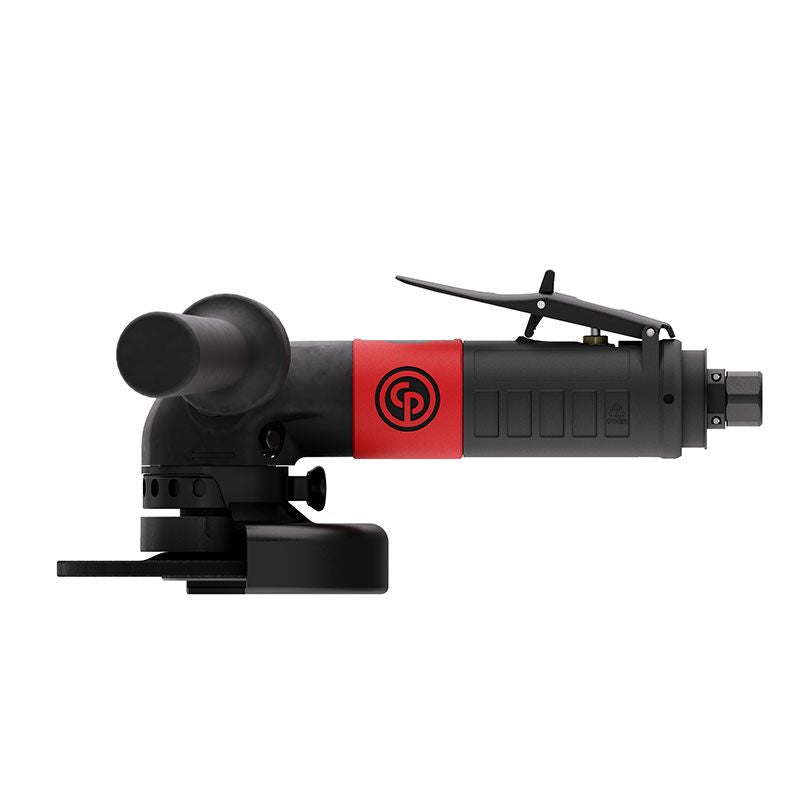

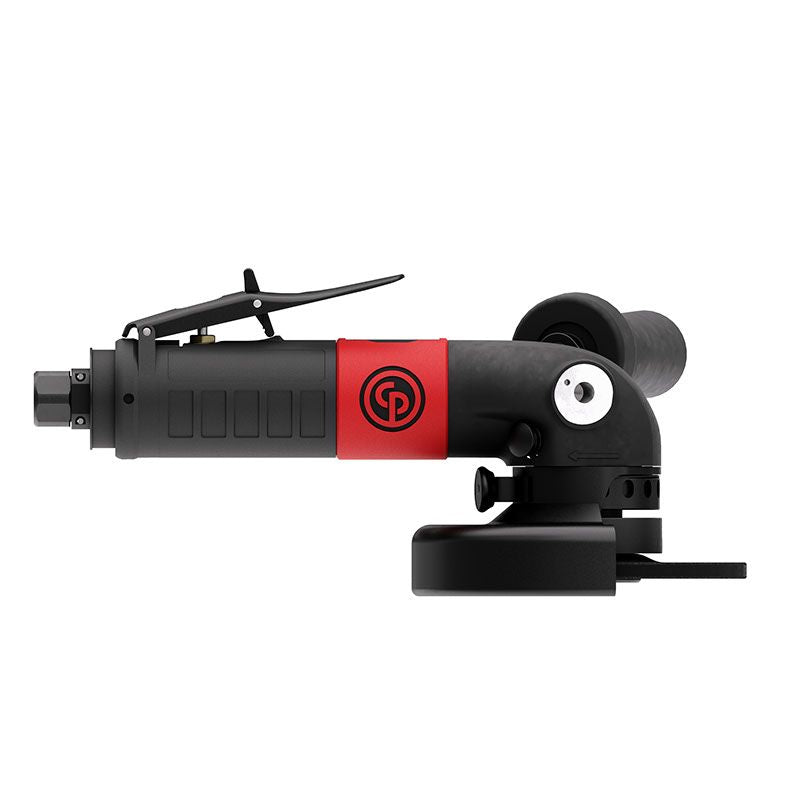

Chicago Pneumatic CP3650-120AB5V Angle Grinder 5" - Autobalancer – 6151607900

Description

5” (125 mm) pneumatic angle grinder with autobalancer, 5/8-11 UNC output shaft

For industrial heavy-duty applications requiring a powerful, long-lasting and versatile tool, the new CP3650-120AB5V is a perfect combination of quality and value.

Features

• 5” (125 mm) pneumatic angle grinder
• Autobalancer
• 5/8-11 UNC output shaft
• Governed motor for better productivity
• Improved ergonomics with orientable vibration damping side handle
• Enhanced durability design

Specifications

Speed	12000 rpm
Air consumption at free speed (Normo)	19.4 1/sNl
Abrasive type	Type 27, Type 41
Autobalancer	Yes
Guard max rotation	360 °
Guard positions	15
Main Material type	Aluminium, Composite over-sleeve
Output Spindle Thread	5/8-11 UNC
Rotative guard type	Pull and Turn
Spindle lock	Yes
Starting system	Safety lever
Swiveling guard	Keyless
Wheel/Disc diameter (in)	5
Wheel/Disc diameter (mm)	125
Sound Power	92.8 dB(A)
Sound Pressure	103.8 dB(A)
Uncertainty vibration-K	4 ft/s²
Vibration	19.4 ft/s²
Air consumption at load (Normo)	29.5 1/sNl
Air inlet thread size (in)	3/8
Air inlet thread type	BSP
Max dynamic air working pressure	90 psi
Min hose diam (16 ft hose length)	0.5 in
Min hose diam (5 m hose length)	13 mm
Wheel inner diameter	22.2 mm
Max power	1800 W
Height (H)	4.02 in
Length (L)	9.74 in
Width (W)	5.51 in
Max wheel thickness	10 mm
Side to Center	1.34 in
Weight	4.96 lb
CP part #	6151607900

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
