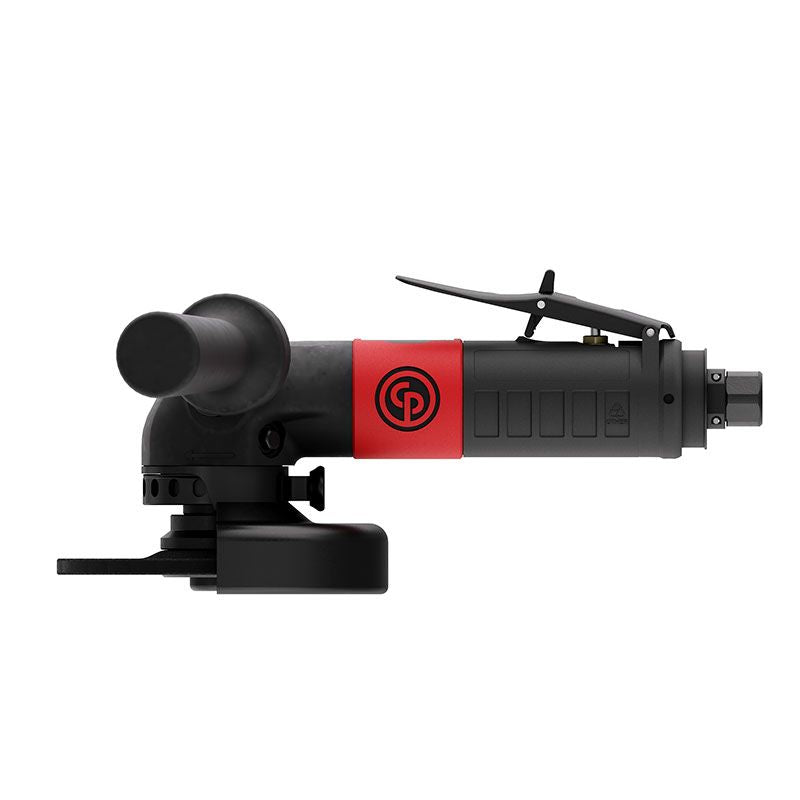

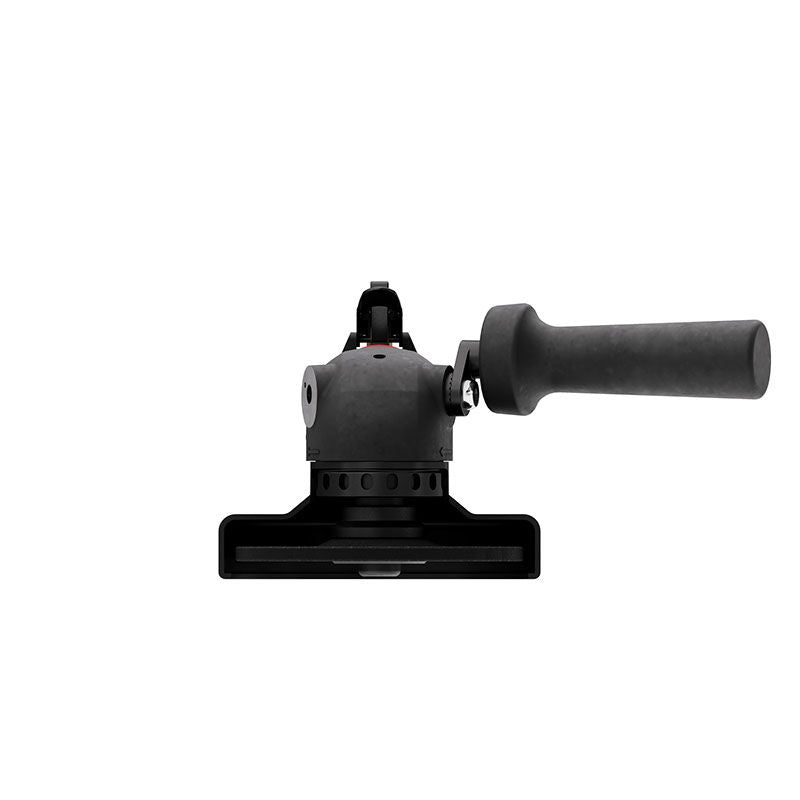

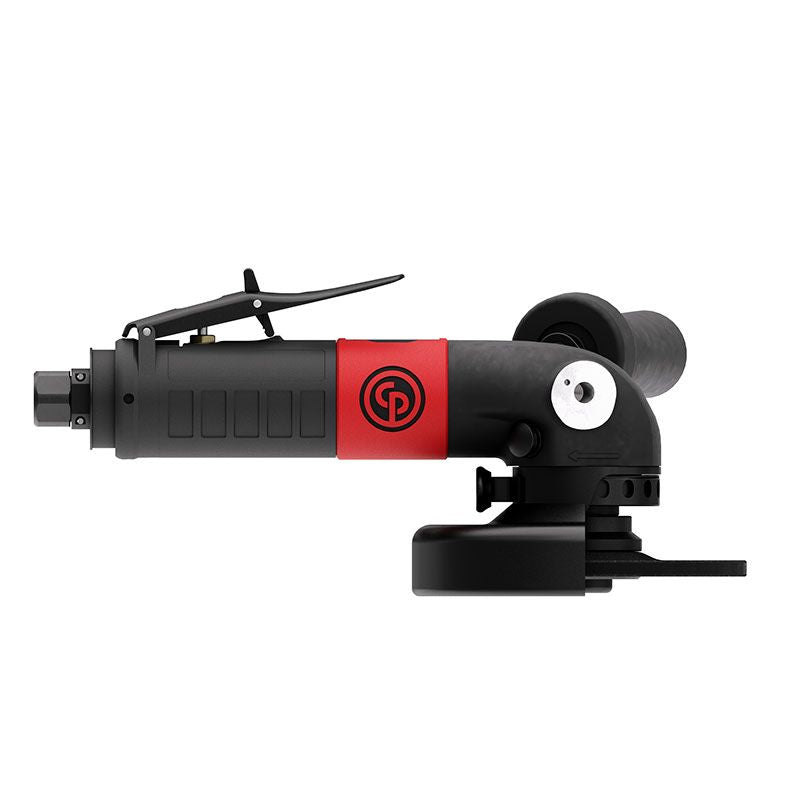

Chicago Pneumatic CP3650-120AB5 Angle Grinder 5" – 6151607850
5” (125 mm) pneumatic angle grinder, 5/8-11 UNC output shaft
For industrial heavy-duty applications requiring a powerful, long-lasting and versatile tool, the new CP3650-120AB5 is a perfect combination of quality and value. CP3650-120AB5 is designed for 125mm (5’’) wheels and has a 5/8-11 UNC output spindle shaft. Featuring +25% improved robustness with exceptional bevel gear life of 2500 hours and 7% carbon footprint reduction against previous models. Powerful and durable, the new innovative CP3650-120AB5 is designed to deliver sustainable productivity with no compromise on operator safety and wellbeing.
Features
- 5” (125 mm) pneumatic angle grinder
- 5/8-11 UNC output shaft
- -25% improved robustness with an exceptional bevel gear life of 2500 hours
- Governed motor for better productivity and reduced vibration
- Improved ergonomics with an orientable vibration damping side handle and a swiveling air inlet
Specifications
| Free Speed | 12000 rpm |
| Air consumption at free speed (Normo) | 17.6 1/sNl |
| Guard max rotation | 360 ° |
| Guard positions | 15 |
| Main Material type | Aluminium, Composite over-sleeve |
| Output Spindle Thread | 5/8-11 UNC |
| Rotative guard type | Pull and Turn |
| Spindle lock | Yes |
| Starting system | Safety lever |
| Swiveling guard | Keyless |
| Wheel/Disc diameter (in) | 5 |
| Wheel/Disc diameter (mm) | 125 |
| Sound Power | 101 dB(A) |
| Sound Pressure | 90 dB(A) |
| Uncertainty vibration-K | 8.2 ft/s² |
| Vibration | 24.3 ft/s² |
| Air consumption at load (Normo) | 29.8 1/sNl |
| Air inlet thread size (in) | 3/8 |
| Max dynamic air working pressure | 90 psi |
| Weight | 4.85 lb |
| Height (H) | 4.02 in |
| Length (L) | 9.74 in |
| Width (W) | 5.51 in |
| CP part # | 6151607850 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151607850
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
