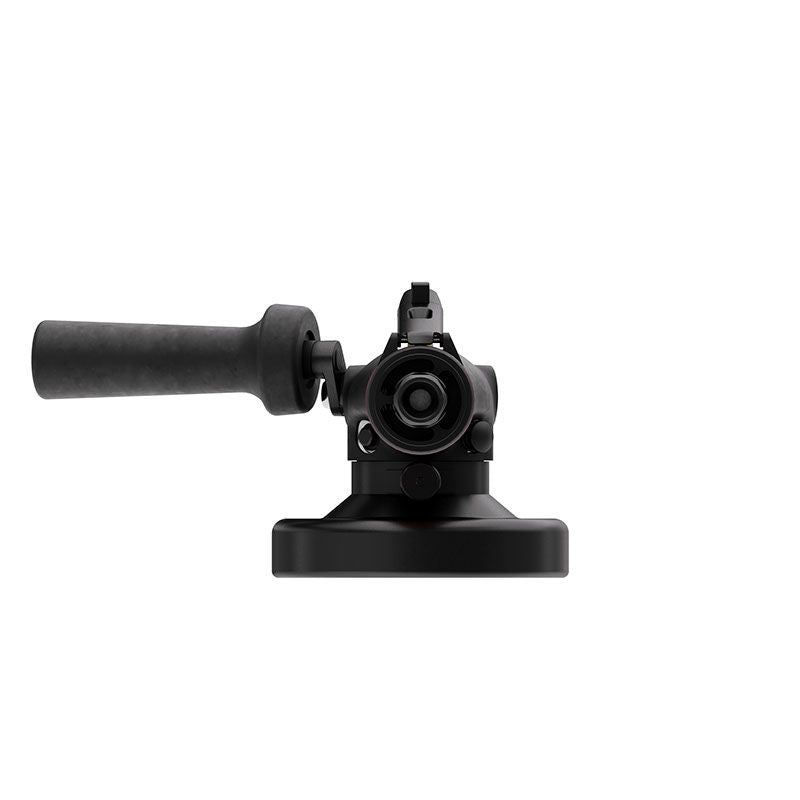

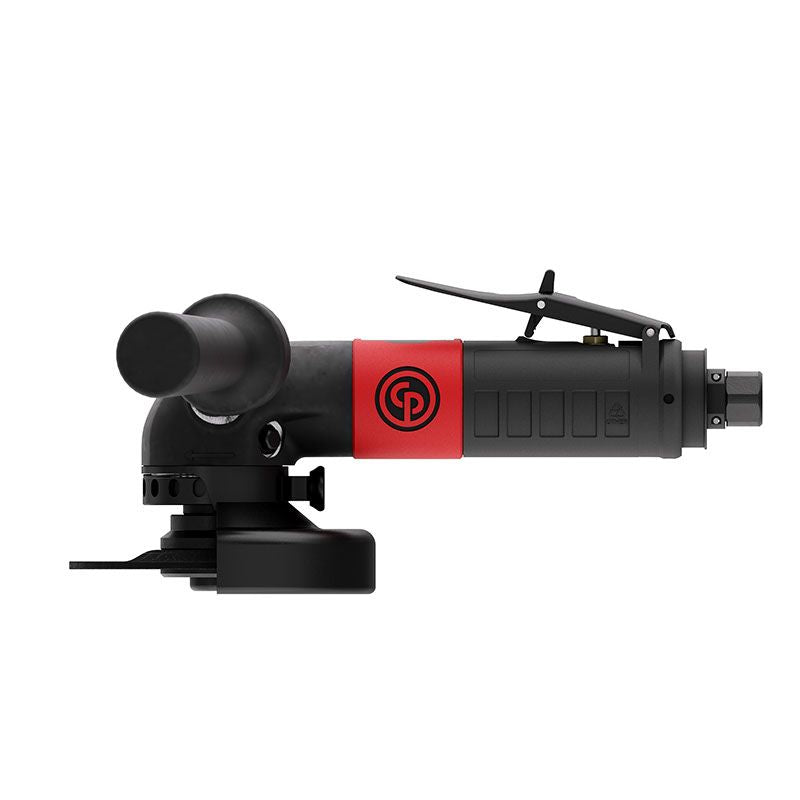

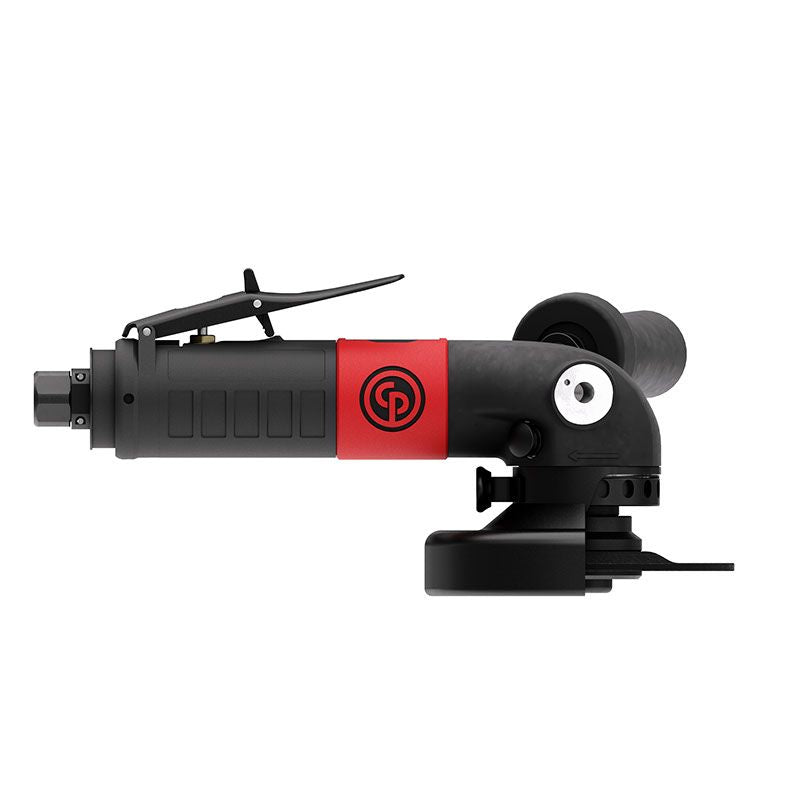

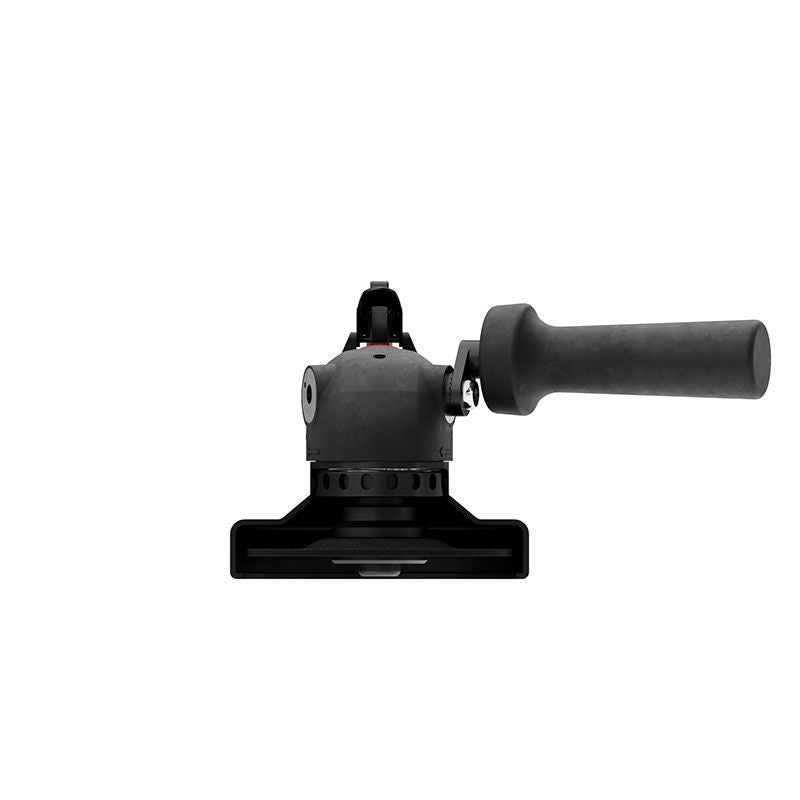

Chicago Pneumatic CP3650-120AB45 Angle Grinder 4-1/2" – 6151607840

Description

4.5” (115 mm) pneumatic angle grinder, 5/8-11 UNC output shaft

The new CP3650-120AB45 is a perfect combination of quality and value, designed for industrial heavy-duty applications with a 115mm (4.5”) wheel and a 5/8-11 UNC output spindle shaft.

Features

• +25% improved robustness with an exceptional bevel gear life of 2500 hours
• Governed motor for better productivity and reduced vibration
• More durable design with protective rubber on angle head housing and steel swiveling air inlet
• Spindle lock button for fast and easy abrasive disc change
• Improved ergonomics with orientable vibration damping side handle and swiveling air inlet

Specifications

Free Speed	12000 rpm
Air consumption at free speed (Normo)	17.6 1/sNl
Guard max rotation	360 °
Guard positions	15
Main Material type	Aluminium, Composite over-sleeve
Output Spindle Thread	5/8-11 UNC
Rotative guard type	Pull and Turn
Spindle lock	Yes
Starting system	Safety lever
Wheel/Disc diameter (in)	4-1/2
Wheel/Disc diameter (mm)	115
Sound Power	101 dB(A)
Sound Pressure	90 dB(A)
Uncertainty vibration-K	6.9 ft/s²
Vibration	23 ft/s²
Air consumption at load (Normo)	29.8 1/sNl
Air inlet thread size (in)	3/8
Max dynamic air working pressure	90 psi
Max power	2.41 hp
Height (H)	4.02 in
Length (L)	9.74 in
Width (W)	5.12 in
Weight	4.85 lb
CP part #	6151607840

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
