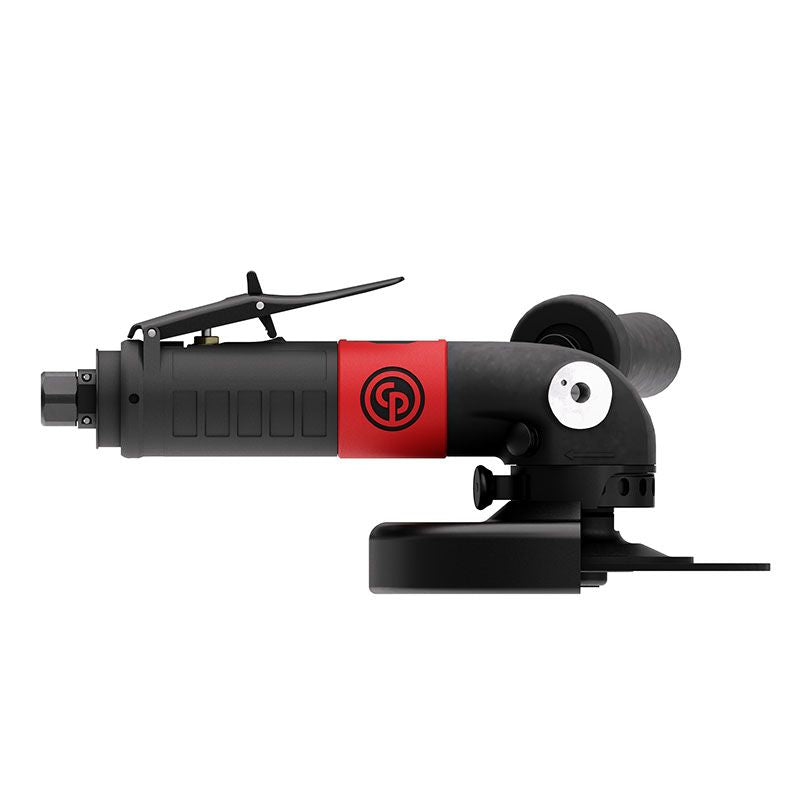

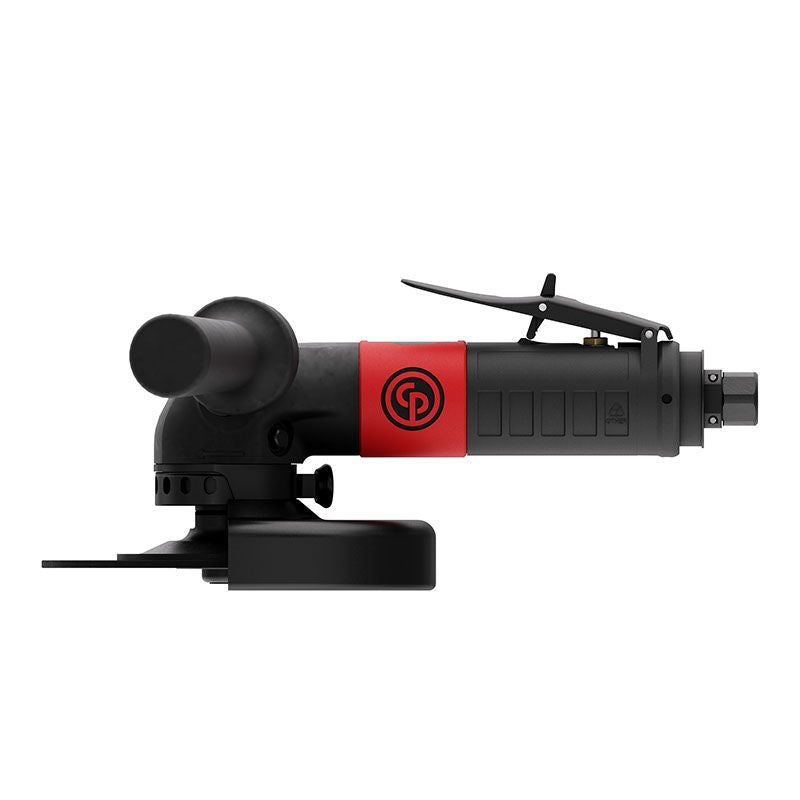

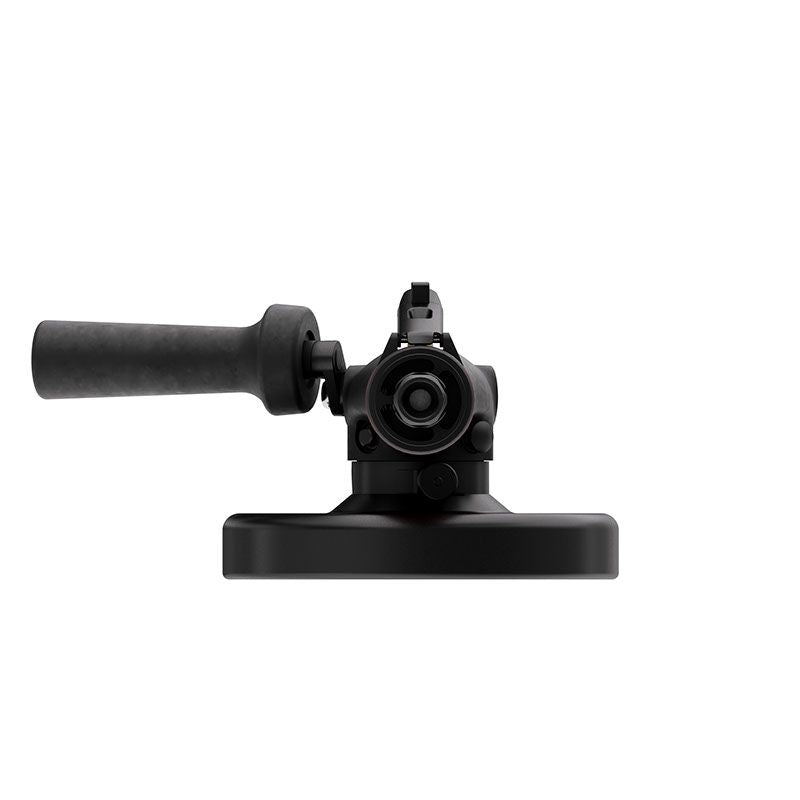

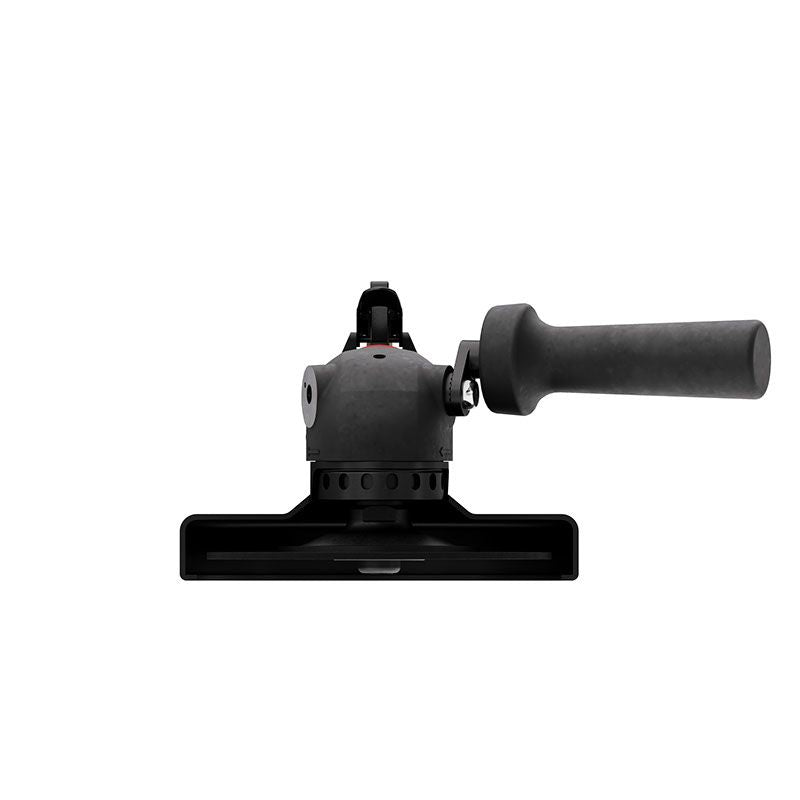

Chicago Pneumatic CP3650-100AB6 Angle Grinder 6'' – 6151607890
6” (150 mm) pneumatic angle grinder, 5/8-11 UNC output shaft
For industrial heavy-duty applications requiring a powerful, long-lasting and versatile tool, the new CP3650-100AB6 is a perfect combination of quality and value. Designed for 150mm (6") wheels and has a 5/8-11 UNC output spindle shaft. Featuring 25% improved robustness with exceptional bevel gear life of 2500 hours and 7% carbon footprint reduction against previous models. Designed to deliver sustainable productivity with no compromise on operator safety and wellbeing.
Features
- +25% improved robustness
- Exceptional bevel gear life of 2500 hours
- Governed motor for better productivity
- Reduced vibration
- More durable design with protective rubber
- Spindle lock button for fast and easy abrasive disc change
- Improved ergonomics with orientable vibration damping side handle
- Swiveling air inlet
Specifications
| Free Speed | 10000 rpm |
| Air consumption at free speed (Normo) | 13 1/sNl |
| Guard max rotation | 360 ° |
| Guard positions | 15 |
| Main Material type | Aluminium, Composite over-sleeve |
| Output Spindle Thread | 5/8-11 UNC |
| Rotative guard type | Pull and Turn |
| Spindle lock | Yes |
| Starting system | Safety lever |
| Swiveling guard | Keyless |
| Wheel/Disc diameter (in) | 6 |
| Wear/Disc diameter (mm) | 150 |
| Sound Power | 100 dB(A) |
| Sound Pressure | 89 dB(A) |
| Uncertainty vibration-K | 5.2 ft/s² |
| Vibration | 19.4 ft/s² |
| Air consumption at load (Normo) | 26 1/sNl |
| Air inlet thread size (in) | 3/8 |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Max power | 2.27 hp |
| Height (H) | 4.06 in |
| Length (L) | 9.74 in |
| Width (W) | 6.81 in |
| Side to Center | 1.34 in |
| Weight | 5.07 lb |
| CP part # | 6151607890 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151607890
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
