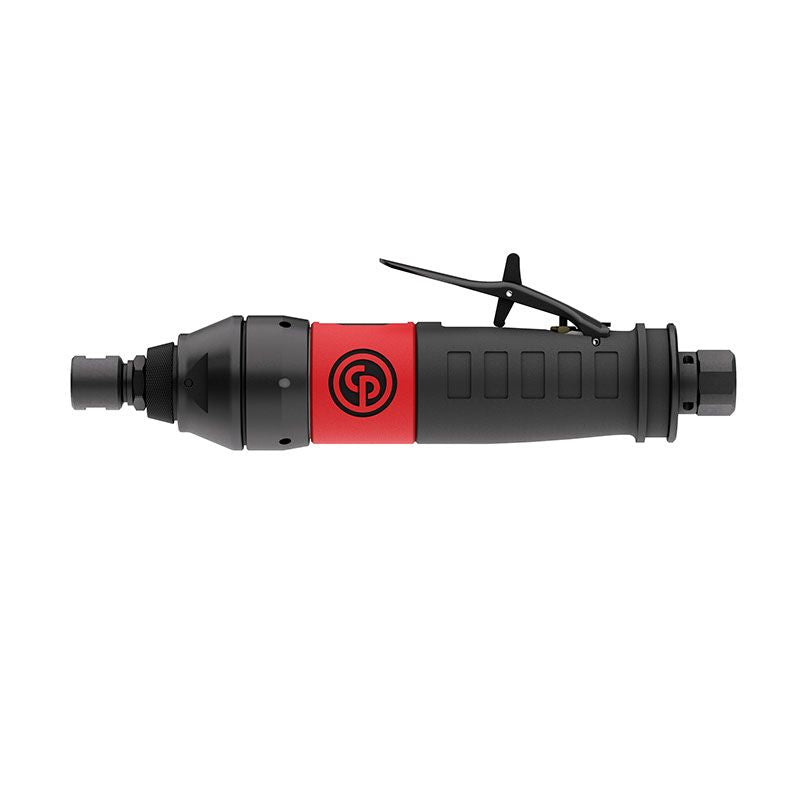

Chicago Pneumatic CP3550-180 Die Grinder โ 6151600630
1/4"(6 mm) Pneumatic Die Grinder
The CP3550 Series, a 1/4' (6.35 mm) capacity die grinder with collet, features an angle or straight head to accommodate your most demanding access applications to maintain your quality at the highest level. It delivers maximum sustained power with 12,000rpms capable of running carbide burrs or mounted points for grinding, contouring, deburring, and cleaning applications. The motor is extremely powerful and reliable with a 1.5 hp (1100 W). Additional features such as the spindle lock button, bevel gear design, and regulated motor make this tool a perfect solution for users working in industry.
Features
- 1/4" (6.35mm) capacity die grinder with collet
- Angle or straight head for access applications
- Maximum sustained power with 12,000 rpms
- Powerful and reliable 1.5 hp (1100 W) motor
- Spindle lock button for easy burr replacement
- Bevel gear design for improved performance
- Regulated motor for consistent operation
Specifications
| Height (H) | 2.05 in |
| Length (L) | 9.76 in |
| Weight | 2.65 lb |
| Free Speed | 18000 rpm |
| Air consumption at free speed | 36 cfm |
| Air consumption at load | 55 cfm |
| Max dynamic air working pressure | 90 psi |
| Sound Power | 91 dB(A) |
| Sound Pressure | 80 dB(A) |
| Collet max capacity | 1/4 (6.35mm) |
| CP part # | 6151600630 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151600630
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
