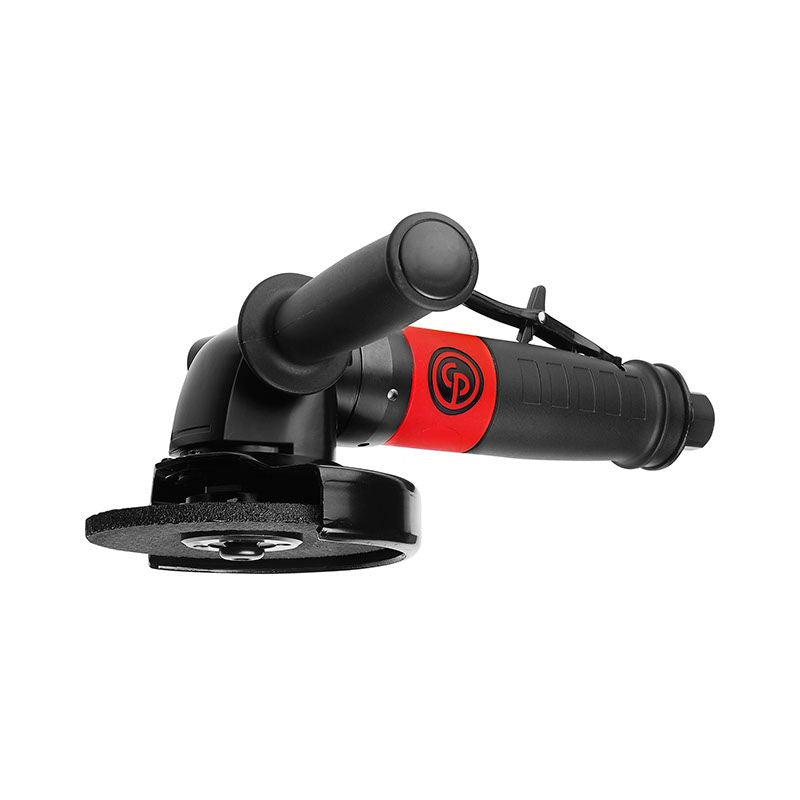

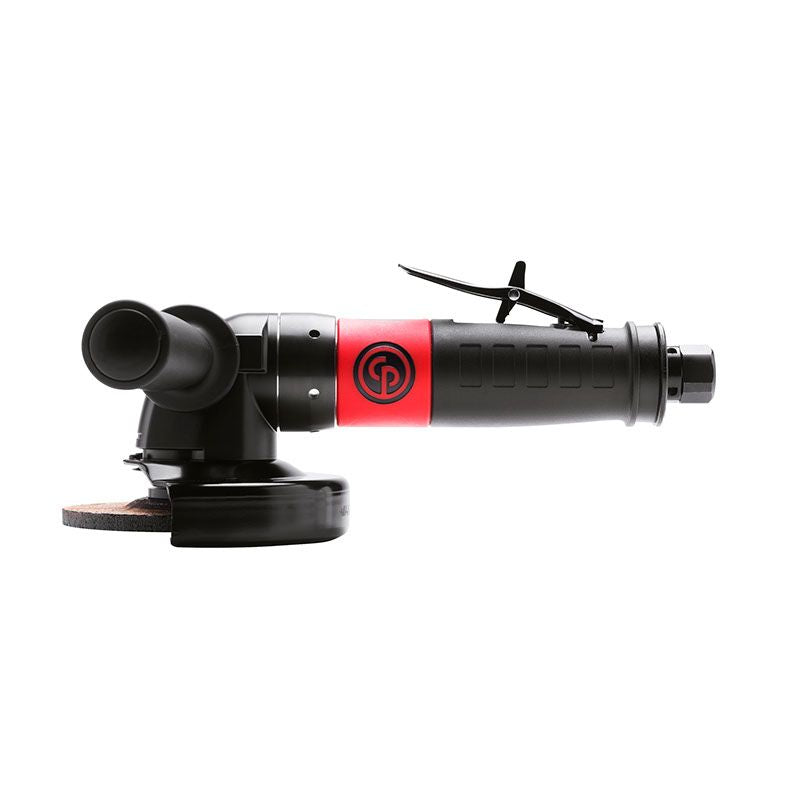

Chicago Pneumatic CP3550-120AB5 Angle Grinder 5" โ 6151607790
5" (125 mm) PNEUMATIC ANGLE GRINDER

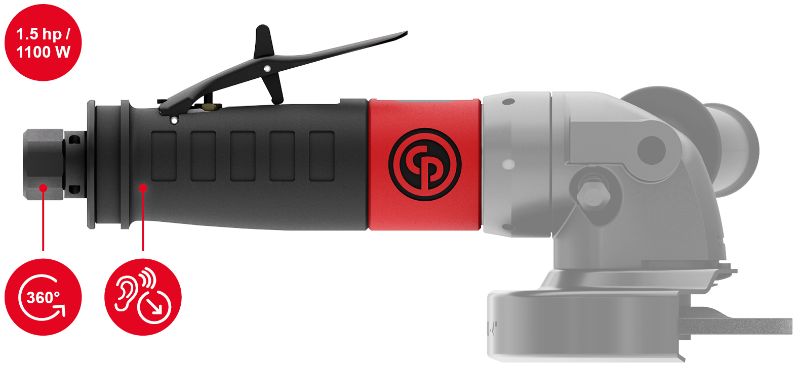

The CP3550 industrial angle Grinders Series offers safety and performance for grinding and cutting applications through a powerful governed motor, 1.5 hp (1100 W), 12,000 rpm to safely reach the maximal abrasive speed. A unique keyless adjustable guard offers fast adjustment to suit the best working position. Additional features such as rotative inlet swivel, spindle lock button, bevel gear design, and elaborate silencer are available as upgrades. CP3550 angle grinder series is defined by 5 models with wheel capacity from 4' to 5' and 3 spindle thread size choices: M14, 3/8-24 and 5/8-11.
Features
- 1.5 hp (1100 W) governed motor
- 12,000 rpm maximum speed
- Keyless adjustable guard
- Rotative inlet swivel
- Spindle lock button
- Bevel gear design
- Elaborate silencer
Specifications
| Free Speed | 12000 rpm |
| Air consumption at free speed | 36 cfm |
| Guard max rotation | 130 ยฐ |
| Guard positions | 5 |
| Main Material type | Aluminium, Composite over-sleeve |
| Output Spindle Thread | 5/8-11 UNC |
| Rotative guard type | Pull and Turn |
| Spindle lock | Yes |
| Starting system | Safety lever |
| Swiveling guard | Keyless |
| Wheel/Disc diameter (in) | 5 |
| Wheel/Disc diameter (mm) | 125 |
| Sound Power | 95 dB(A) |
| Sound Pressure | 84 dB(A) |
| Uncertainty vibration-K | 14.4 ft/sยฒ |
| Vibration | 32.2 ft/sยฒ |
| Air consumption at load | 55 cfm |
| Air inlet thread size (in) | 3/8 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Max power | 1.48 hp |
| Height (H) | 3.9 in |
| Length (L) | 9.92 in |
| Side to Center | 1.14 in |
| Weight | 4.19 lb |
| CP part # | 6151607790 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
