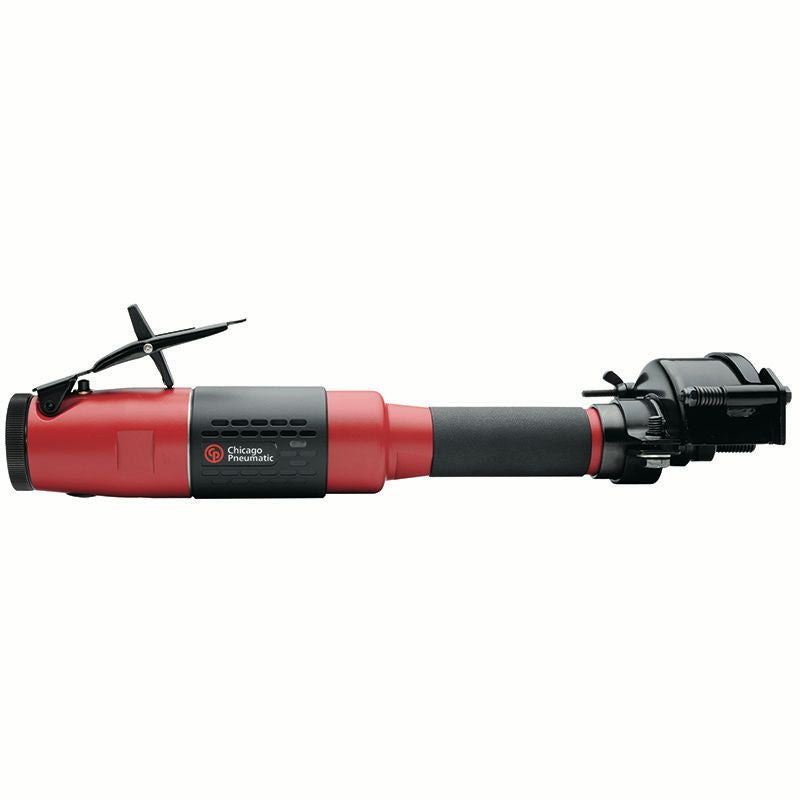

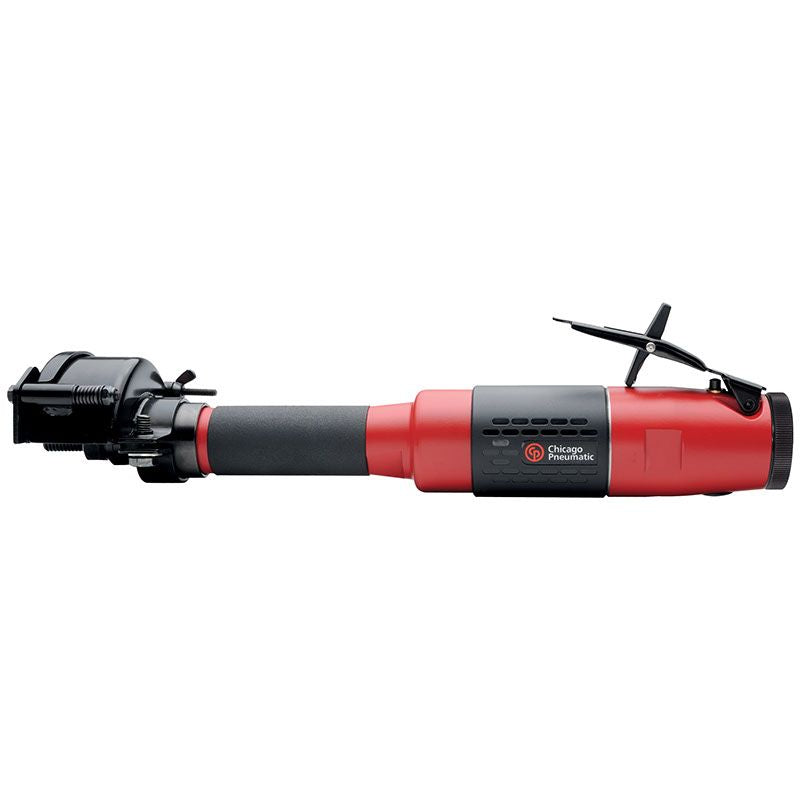

Chicago Pneumatic CP3451-18SE3 Ext . Wheel Grinder 3" โ 6151602030
3"(75mm) PNEUMATIC STRAIGHT GRINDER
The CP3451 lightweight straight grinders range is defined by 4 models with wheel capacity from 2.5x1/2x3/8' (63x13x9.52 mm) to 3x1/2x3/8' (80x13x9.52 mm) and a 0.8 hp (600 W) to 1 hp (750 W) powerful motor. CP3451 benefits from a free speed up to 18,000 rpm. CP3451 design offers safety lever for European market or rotative sleeve for North America market.
Features
- Industrial grade durability up to 1,000 hours between maintenance intervals
- Machined aluminum housing for a lightweight easy to use straight Grinder
- Streamlined safety lever motor
- Insulating composite over-housing for operator comfort
- Superior ergonomics with 2-handed handling
Specifications
| Wheel/Disc diameter (in) | 3 |
| Wheel/Disc diameter (mm) | 75 |
| Wheel thickness (in) | 1/2 |
| Wheel thickness (mm) | 13 |
| Free Speed | 18000 rpm |
| Max power | 1.01 hp |
| Air consumption at load | 36 cfm |
| Max dynamic air working pressure | 90 psi |
| Length (L) | 13.82 in |
| Weight | 3.53 lb |
| CP part # | 6151602030 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151602030
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
