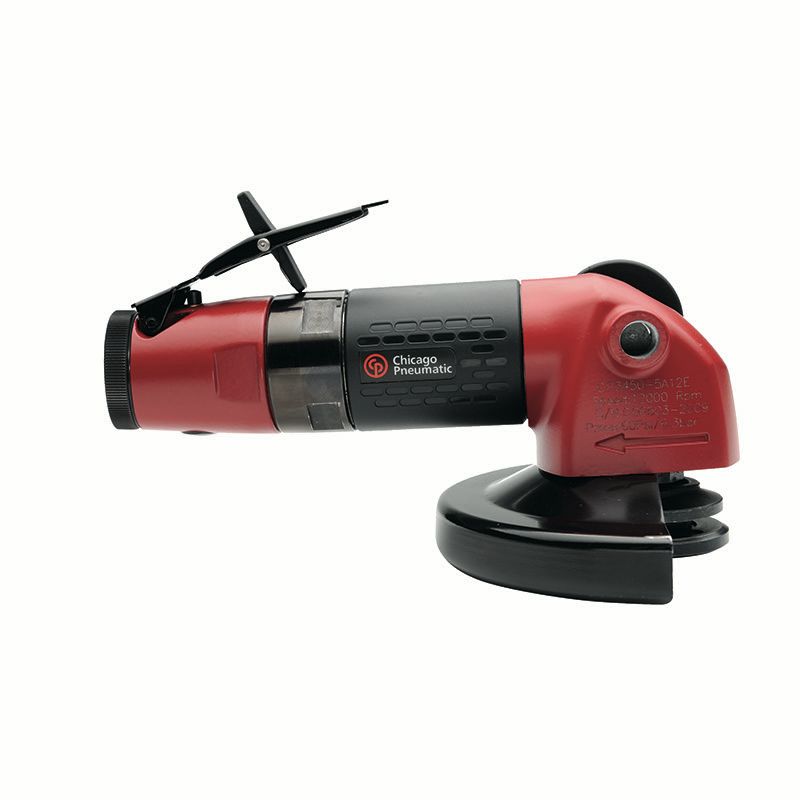

Chicago Pneumatic CP3450-12AB5 Angle Grinder 5" โ 6151604050
5"(125 mm) PNEUMATIC ANGLE GRINDER
CP3450 angle Grinders Series have grinding wheel capacities from 4' (100 mm) to 5' (125 mm) with a powerful motor 1.1 hp (810 W) and a free speed up to 12,000 rpm. Its low-profile angle head design is perfect for surface preparation in any type of space. A constant lubrication bevel gear design ensures high durability. The CP3450 angle grinder Series offers 5 models with 3-wheel capacities and 3 spindle thread size choices (M14, 3/8-24' and 5/8-11'). The CP3450-12CR4 with rotative throttle is not for CE/NA Market.
Features
- Industrial grade durability up to 1,000 hours between maintenance intervals
- Streamlined orientable safety lever for operator comfort
- Steel housing with an insulating composite over-housing for optimal handling
- Low profile angle head for better ergonomics
- Constant lubrication bevel gear design
Specifications
| Free Speed | 12000 rpm |
| Air consumption at free speed | 38 cfm |
| Wheel/Disc diameter | 5 in / 125 mm |
| Max power | 1.09 hp |
| Output Spindle Thread | 5/8-11 UNC |
| Sound Power | 106 dB(A) |
| Sound Pressure | 95 dB(A) |
| Vibration | 27.9 ft/sยฒ |
| Air consumption at load | 36 cfm |
| Max dynamic air working pressure | 90 psi |
| Length | 9.09 in |
| Weight | 3.75 lb |
| CP part # | 6151604050 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151604050
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
