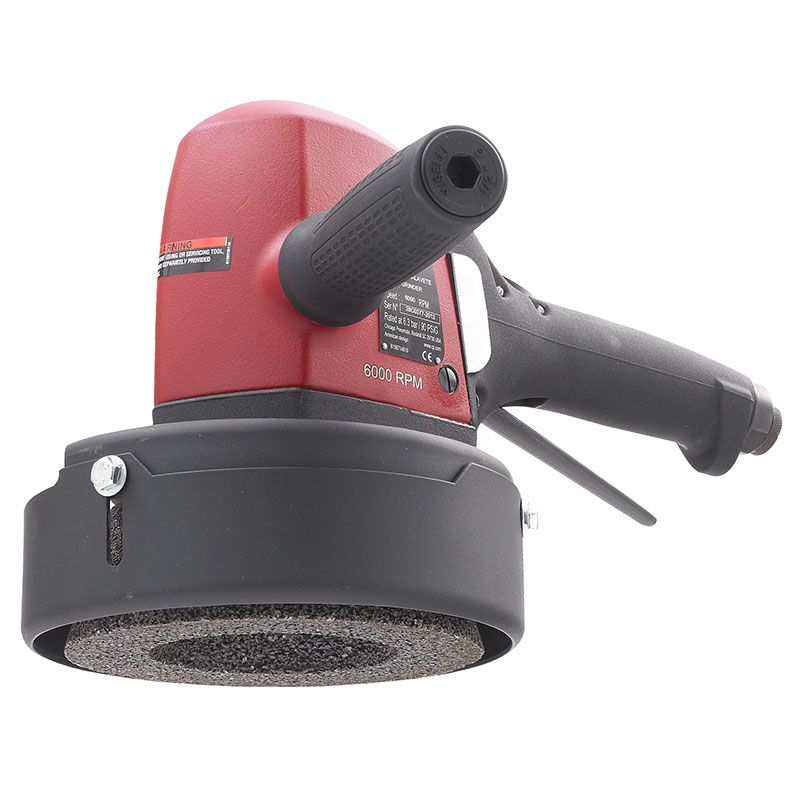

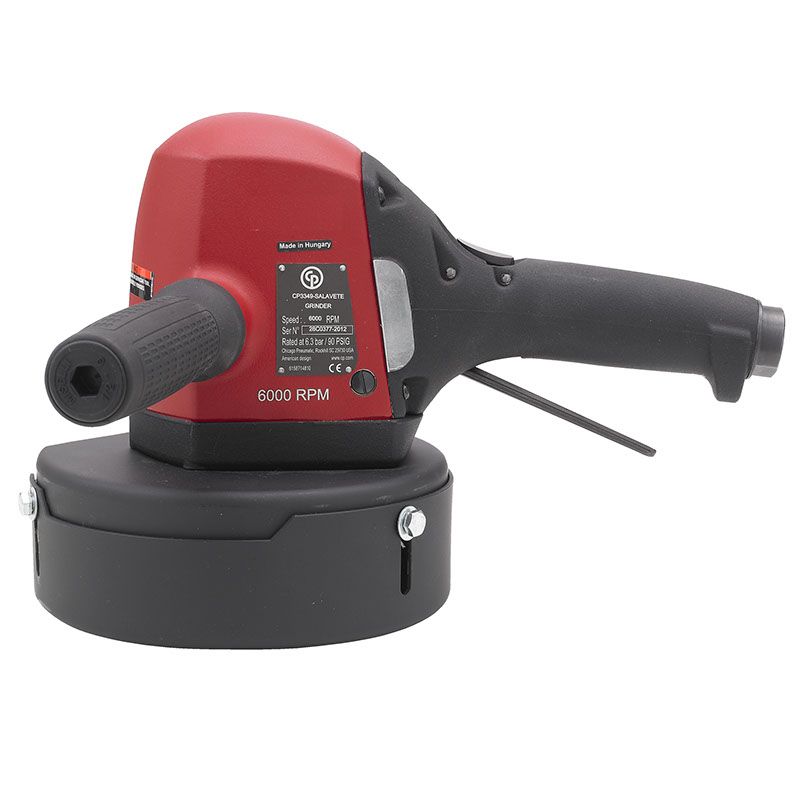

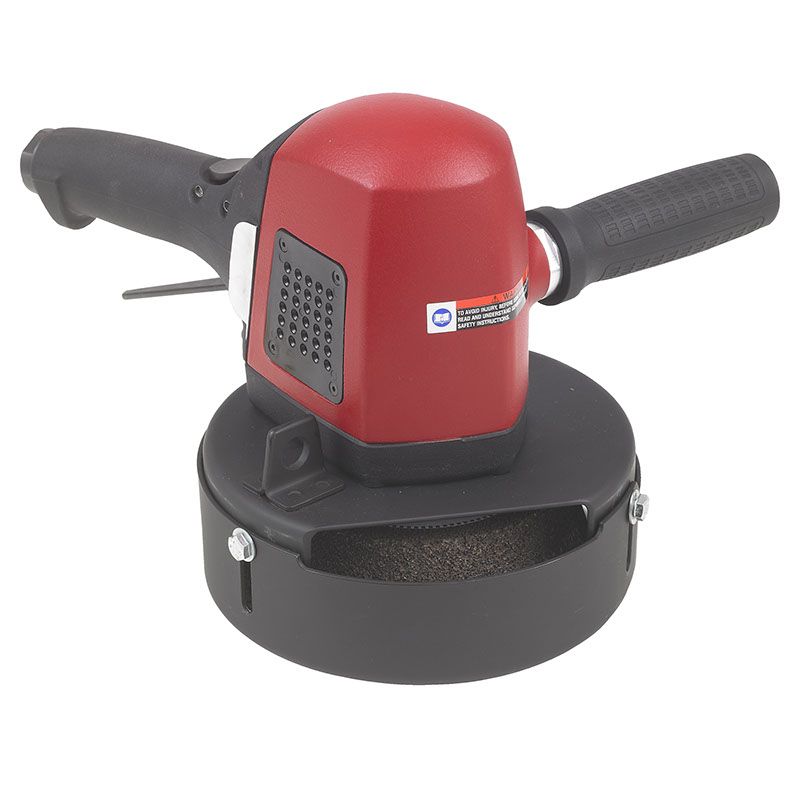

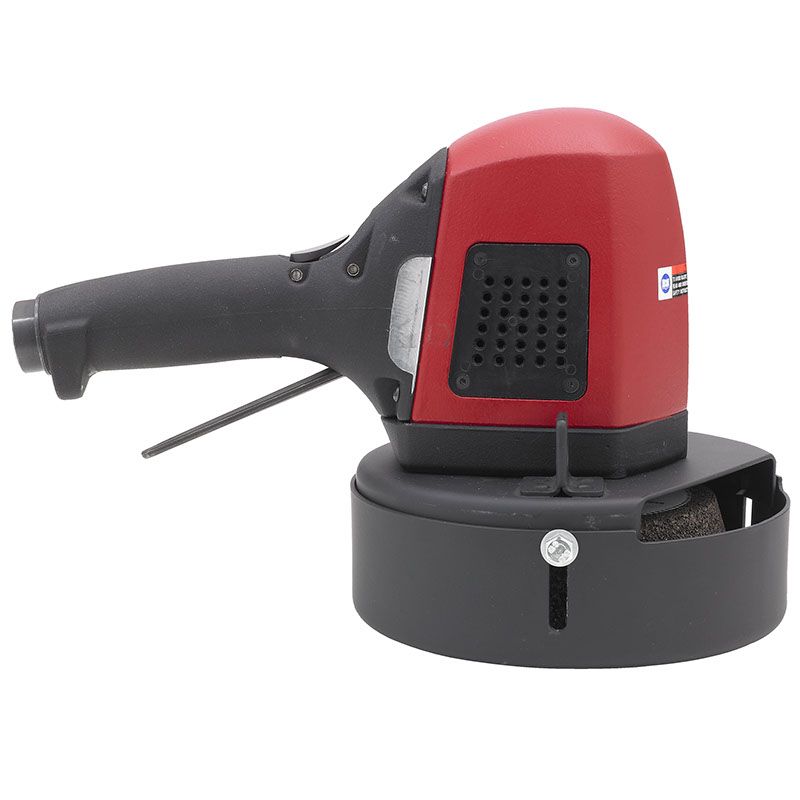

Chicago Pneumatic CP3349-SALAVET Vertical Grinder 6" โ 6151609080
6"(150 mm) PNEUMATIC VERTICAL GRINDER
The CP3349 vertical grinder - 6" to 9" (150 to 230 mm) is designed with a powerful governed motor of 4 hp/3000 W and a free speed from 6,000 to 7,700 rpm. The Series features a curved design to increase control and comfort, a safety lever, a reinforced rubber grip, and high resistance protective guard. Built-in oil tank for high durability, it offers up to 2000 h maintenance intervals. Tools are equipped with 5/8-11' spindle thread. The range consists of 5 models: CP3349-SALAVEL, SALAVET for ANSI NA market and CP3349-SALAVADE, SALAVETE, SALAVELE for CE market.
Features
- Highest durability in demanding applications, up to 2,000 hours maintenance intervals
- Double ergonomic action safety lever facilitates single-handed engagement and helps reduce risk of accidental start up
- An ergonomic handle to promote a good operating position by keeping the operator's wrist straight
- Built-in lubricant tank for constant lubrication, reducing failure and increasing tool lifetime
- Reinforced rubber grip side handle provides a steady grip, increasing operator grinding control
Specifications
| Air consumption at load | 91 cfm |
| Air inlet thread size | 1/2 in |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 90 psi |
| Min hose diameter (16 ft hose length) | 0.63 in |
| Min hose diameter (5 m hose length) | 15 mm |
| Max power | 4.02 hp |
| Height | 8.15 in |
| Length | 11.02 in |
| Weight | 9.7 lb |
| Exhaust | Side |
| Main Material type | Aluminium |
| Output Spindle Thread | 5/8-11 UNC |
| Wheel/Disc diameter | 6 in / 150 mm |
| Free Speed | 6000 rpm |
| Air consumption at free speed | 25 cfm |
| Sound Power | 95 dB(A) |
| Sound Pressure | 84 dB(A) |
| Vibration | <2.5 m/sยฒ |
| CP part # | 6151609080 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151609080
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
