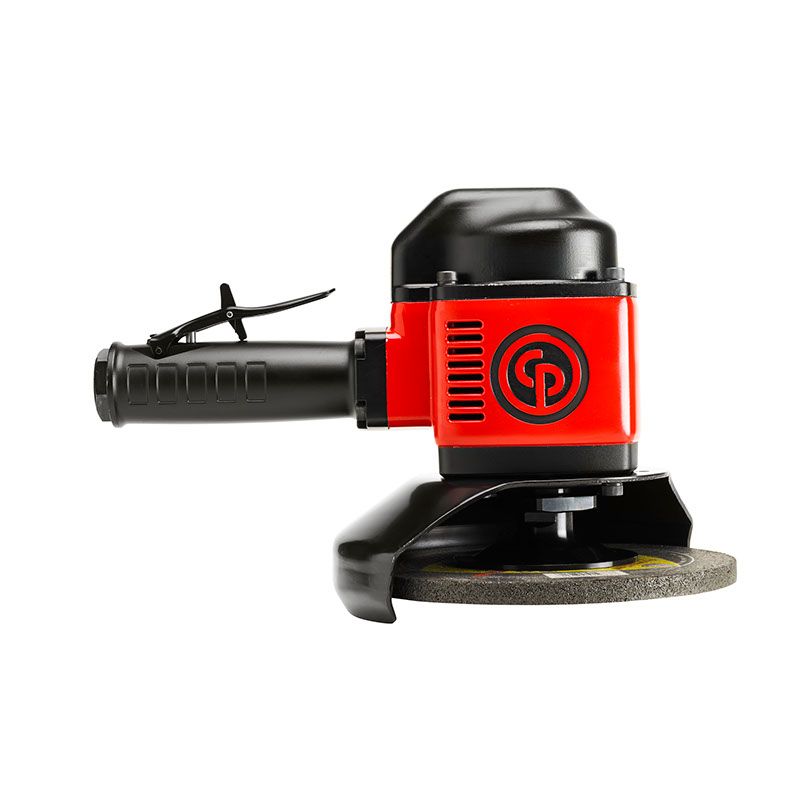

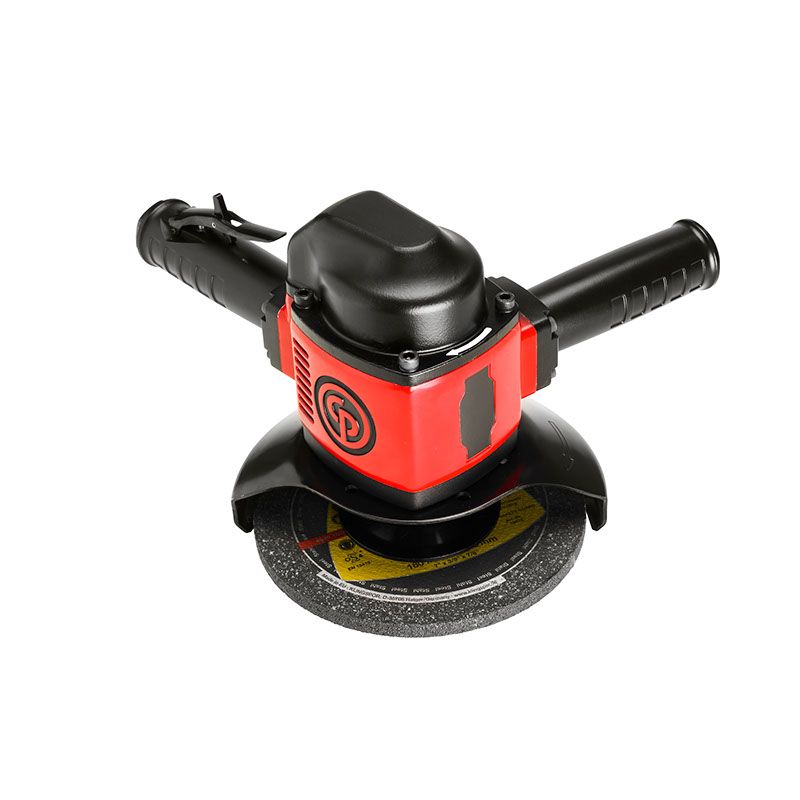

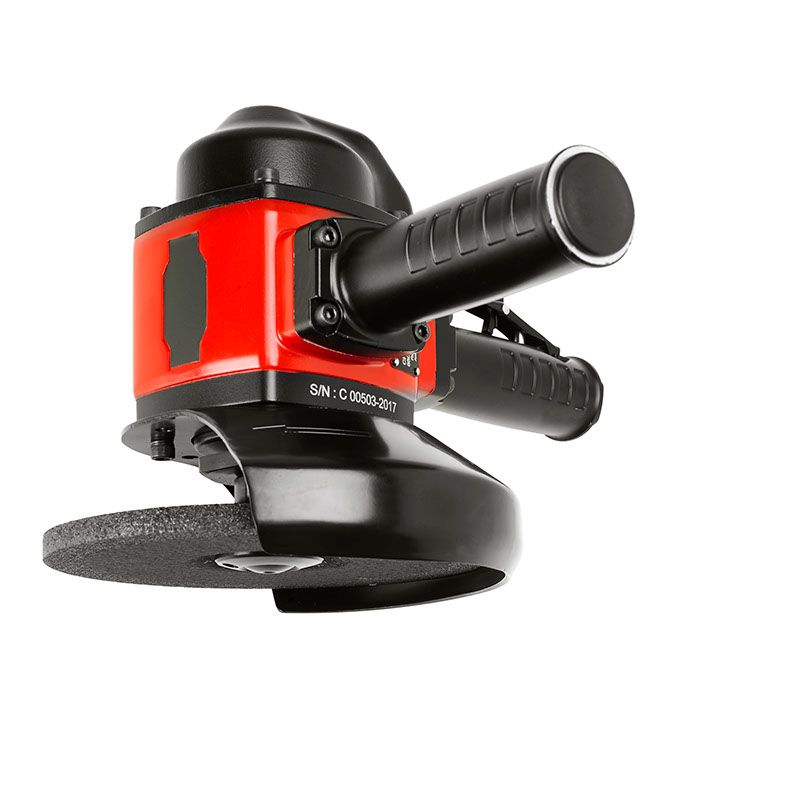

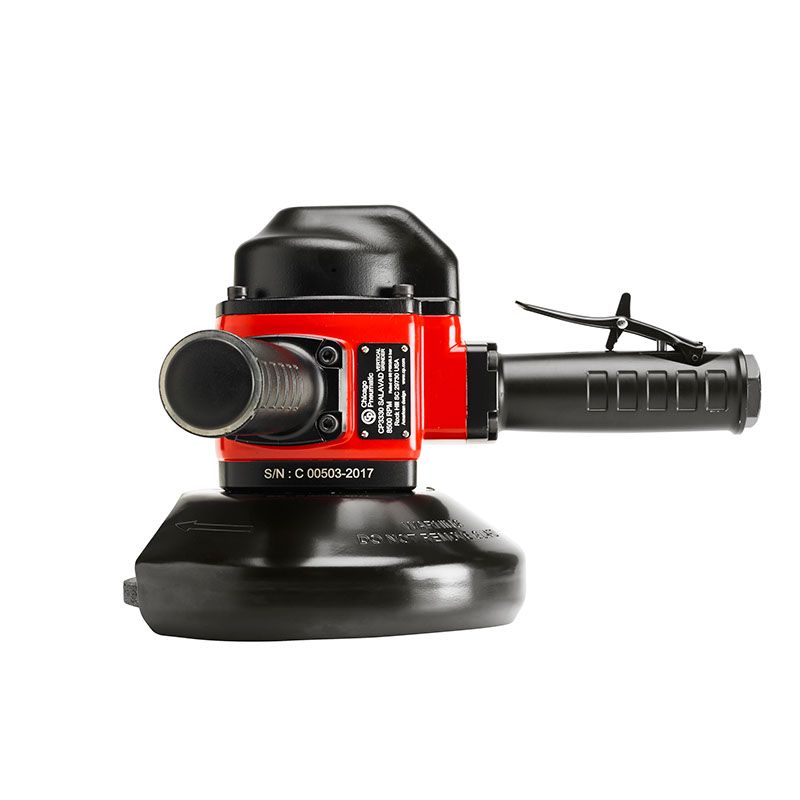

Chicago Pneumatic CP3330-SALAVAD Vertical Grinder 7" โ 6151609220
7"(180mm) PNEUMATIC VERTICAL GRINDER
The CP3330 vertical grinder is ideal for heavy grinding and cutting applications. Highly robust and durable with integrated over speed shut-off device, it features a powerful governed pneumatic motor and free speed from 6,000 to 8,500 rpm, a streamlined safety lever, and very resistant protective guard for optimal operator safety. All models are 5/8โณ-11 UNS male spindle type. Available in 3 models: CP3330-SALAVEL for ANSI market and CP3330 SALAVET, CP3330-SALAVADE for CE market.
Features
- Highest durability in demanding applications with up to 2,000 hours maintenance intervals
- Governed motor - 3.7 hp (2,800 W) - ensures operator safety while maintaining abrasive speed under operator load
- Overspeed shut-off device, avoids abrasive bursts in case of accidental air pressure variations
- Robust aluminum housing and high resistance protective guard for long-term durability
- Streamlined safety lever allows easy tool operation while wearing heavy gloves
Specifications
| Air consumption at load | 82 cfm |
| Air inlet thread size | 1/2 in |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.63 in |
| Min hose diam (5 m hose length) | 16 mm |
| Max power | 3.75 hp |
| Length (L) | 9.84 in |
| Side to Center | 1.97 in |
| Weight | 10.4 lb |
| Autobalancer | No |
| Exhaust | Side |
| Main Material type | Aluminium |
| Output Spindle Thread | 5/8-11 UNC |
| Rotative inlet | No |
| Spindle lock | No |
| Starting system | Safety lever |
| Swiveling guard | No |
| Wheel/Disc diameter | 7 in / 180 mm |
| Free Speed | 8500 rpm |
| Air consumption at free speed | 36 cfm |
| Overspeed shut-off | Yes |
| Sound Power | 102 dB(A) |
| Sound Pressure | 91 dB(A) |
| Uncertainty vibration-K | 4.9 ft/sยฒ |
| CP part # | 6151609220 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
