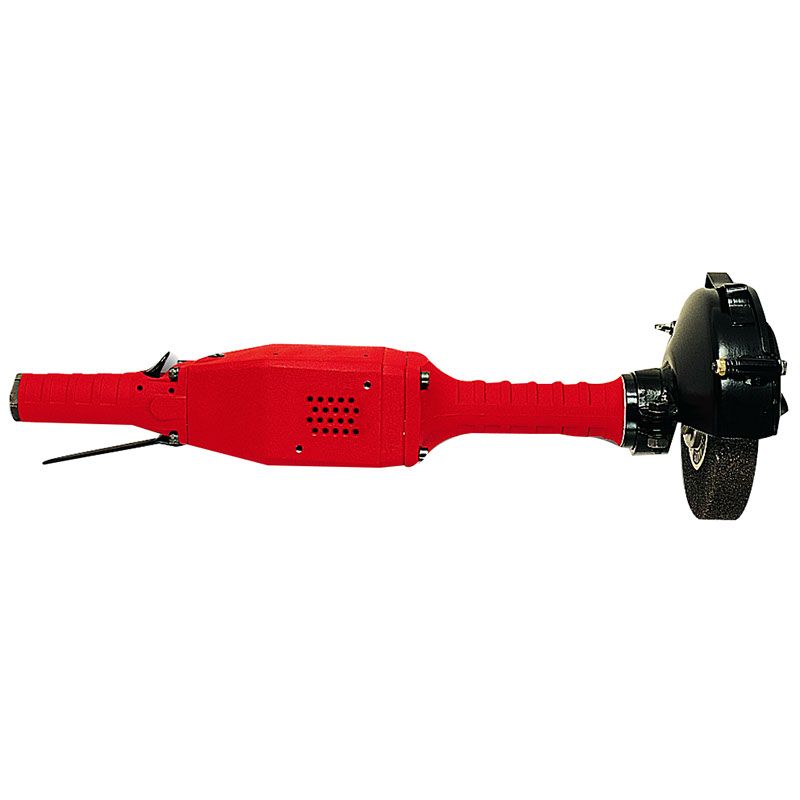

Chicago Pneumatic CP3249-GABSYG Straight Grinder 6" โ 6151606130
6"(150 mm) PNEUMATIC STRAIGHT GRINDER
The CP3249 straight wheel grinders range is defined by 4 models, with max wheel capacity from 6x1x5/8' (150x25x15.9 mm) to 8x1x5/8' (200x25x15.9 mm) and a 3.2 hp (2400 W) or 3.4 hp (2700 W) powerful motor. CP3249 Straight Wheel Grinder range free speed is from 4,500 to 6,000 rotations per minute. CP3249-GABSUD and GABSYG are dedicated for ANSI NA market CP3249-GABSUDE and GABSYGE are for CE market.
Features
- Highest durability in demanding applications with up to 2,000 hours maintenance intervals
- Double ergonomic action safety lever facilitates single-handed engagement and helps reduce risk of accidental start up
- Overspeed prevention device included, ANSI compliant for NA markets, 6" (150 mm) wheel capacity
Specifications
| Wheel/Disc diameter (in) | 6 |
| Wheel/Disc diameter (mm) | 150 |
| Wheel thickness (in) | 1 |
| Wheel thickness (mm) | 25 |
| Free Speed | 6000 rpm |
| Air consumption at load | 86 cfm |
| Air inlet thread size (in) | 1/2 |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 90 psi |
| Max power | 3.62 hp |
| Sound Pressure | 82 dB(A) |
| Vibration (m/sยฒ) | < 2.5 |
| Length (L) | 21.81 in |
| Weight | 12.3 lb |
| Main Material type | Aluminium |
| Output Spindle Thread | 5/8-11 UNC |
| CP part # | 6151606130 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151606130
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
