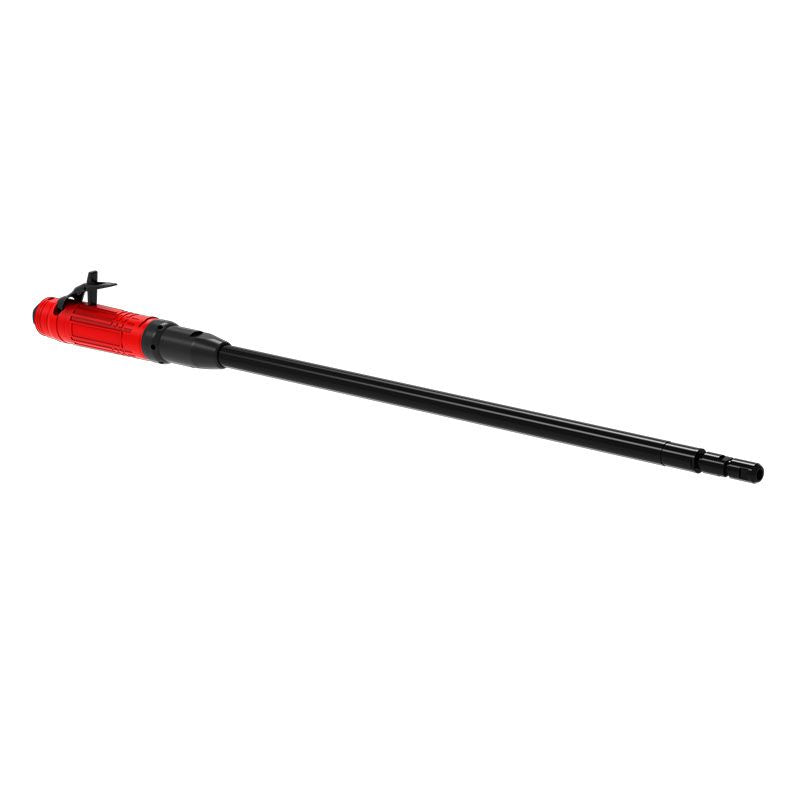

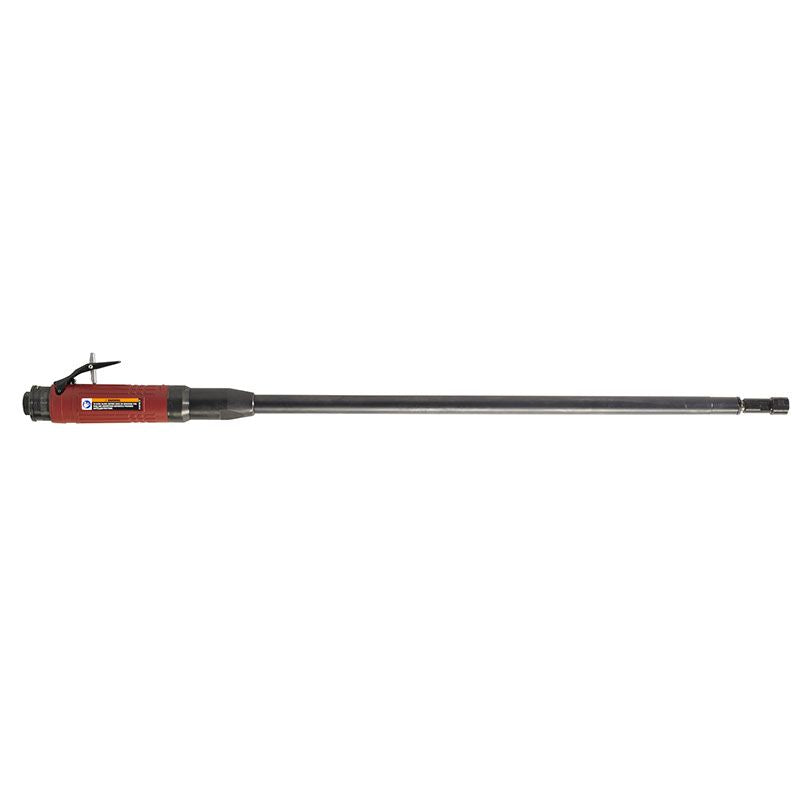

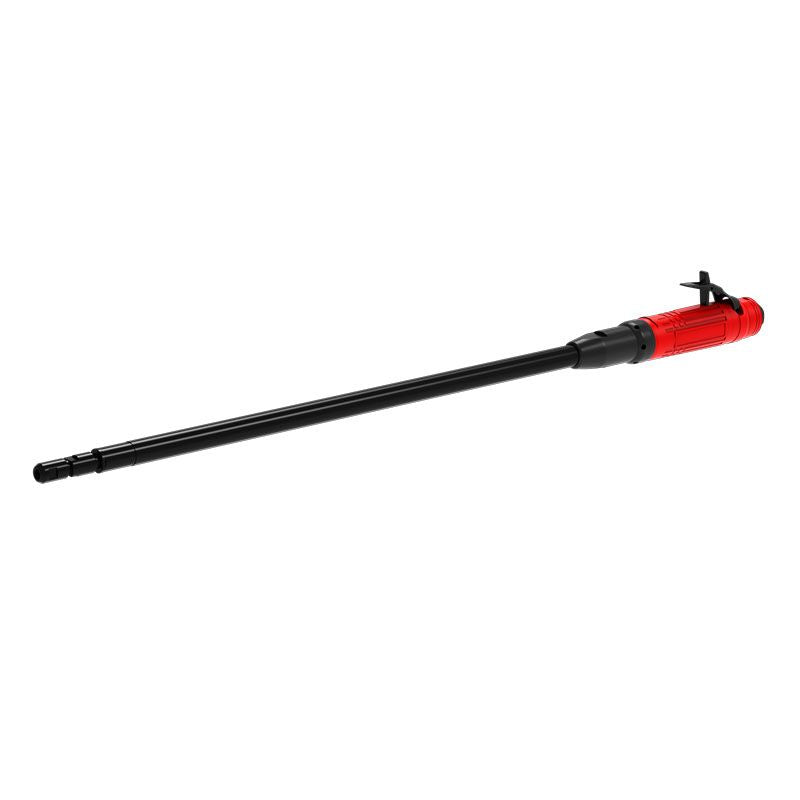

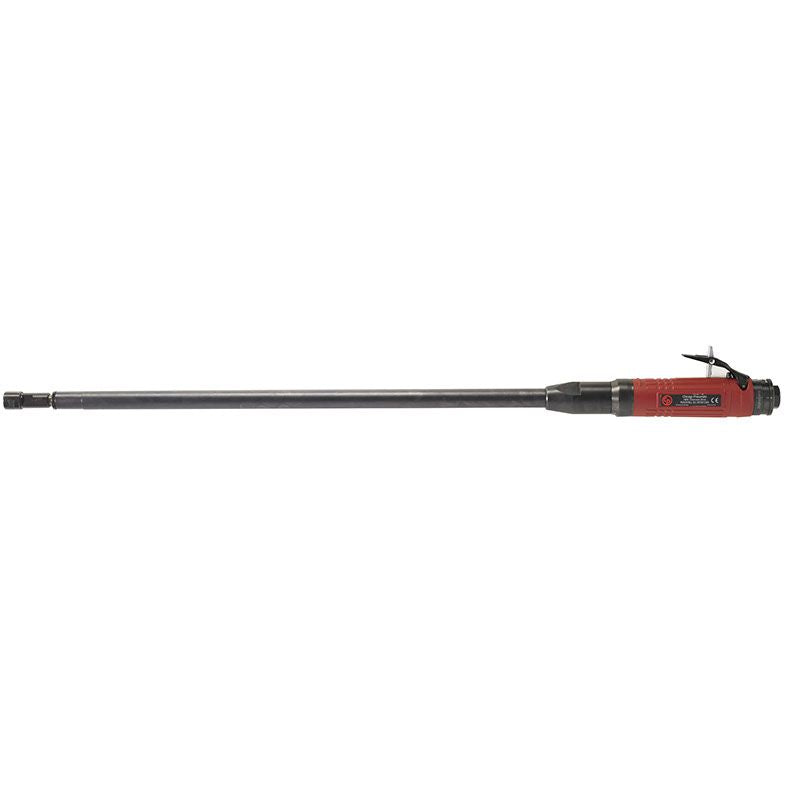

Chicago Pneumatic CP3119-12EXL Ext. Die Grinder โ 6151602160
1/4"(6 mm) PNEUMATIC DIE GRINDER
The CP3119 line of straight pneumatic Die Grinders range has a steel housing for demanding grinding, deburring, and contouring applications. 26 models including 13 1/4" (6.35 mm) and 13 CNOMO collet capacity define it. The free speed range is from 10,000 to 60,000 rpm. It is available with a straight, straight extended housing collet spindle, or with a long reach extended one-piece body - 23.7" (603 mm) and 33.6" (853 mm).
Features
- Highest durability in demanding applications, up to 2,000 hours maintenance intervals
- Streamlined safety lever for operator safety
- Available with extended body with one-piece steel structure for high resistance
- Powerful 1.2 hp (900 W) governed motor
- Steel housing with an insulating composite over-housing for operator comfort and superior ergonomics
Specifications
| Length (L) | 33.58 in |
| Weight | 5.95 lb |
| Free Speed | 12000 rpm |
| Air consumption at free speed | 12 cfm |
| Air consumption at load | 33 cfm |
| Air inlet thread size (in) | 3/8 |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Sound Power | 72 dB(A) |
| Sound Pressure | 74 dB(A) |
| Uncertainty vibration-K | 4.6 ft/sยฒ |
| Angle Type | Straight |
| Max power | 1.21 hp |
| Collet max capacity | 1/4 (6.35mm) |
| Collet/Collet holder/Collet nut type | Erickson serie 200 type |
| Exhaust | Rear |
| Governor type | Ball |
| Main Material type | Aluminium, Composite over-sleeve |
| Rotative inlet | No |
| Spindle lock | No |
| Starting system | Safety lever |
| CP part # | 6151602160 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
