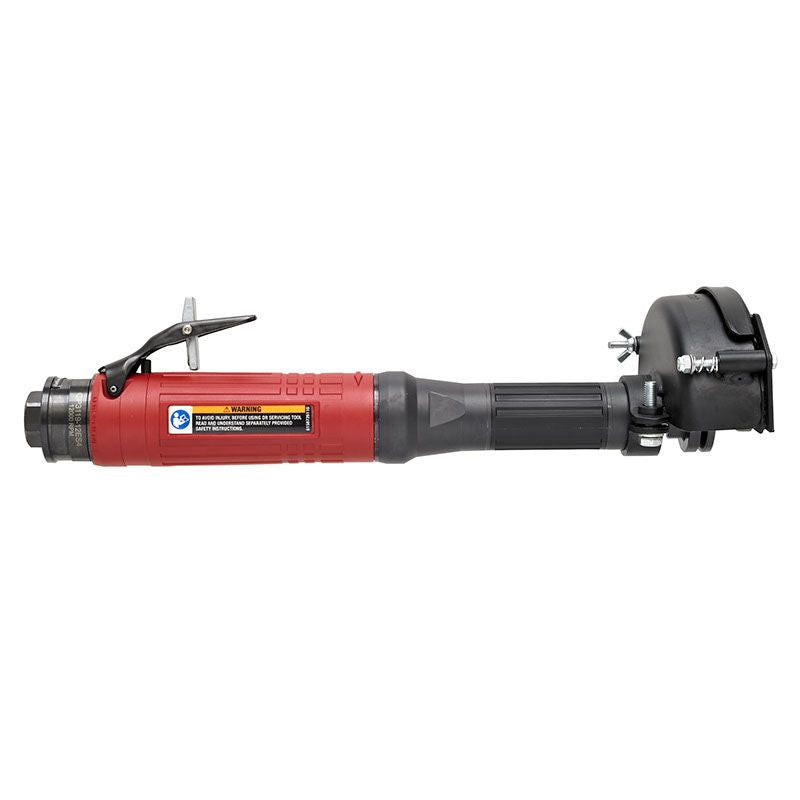

Chicago Pneumatic CP3119-12ES4 Straight Grinder โ 6151606020
4"(100 mm) PNEUMATIC STRAIGHT GRINDER
The CP3119 straight wheel grinders range consists of 6 models, with max wheel capacity from 2.5x1/2x3/8' (63x13x9.52 mm) to 4x1/2x3/8' (100x13x9.52 mm) and a 1.2 hp (900 W) powerful motor. CP3019 straight Grinder range free speed is from 12,000 to 18,000 rotations per minute.
Features
- Highest durability in demanding applications, up to 2,000 hours maintenance intervals
- Streamlined safety lever and 1.2 hp (900 W) governed motor for operator safety
- Long steel housing with an insulating composite over-housing for operator comfort
- Superior ergonomics with 2-handed handling
Specifications
| Wheel/Disc diameter (in) | 4 |
| Wheel/Disc diameter (mm) | 100 |
| Wheel thickness (in) | 1/2 |
| Wheel thickness (mm) | 13 |
| Air consumption at load | 33 cfm |
| Max power | 1.21 hp |
| Sound Pressure | 78 dB(A) |
| Free Speed | 12000 rpm |
| Length (L) | 13.31 in |
| Weight | 3.97 lb |
| CP part # | 6151606020 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151606020
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
