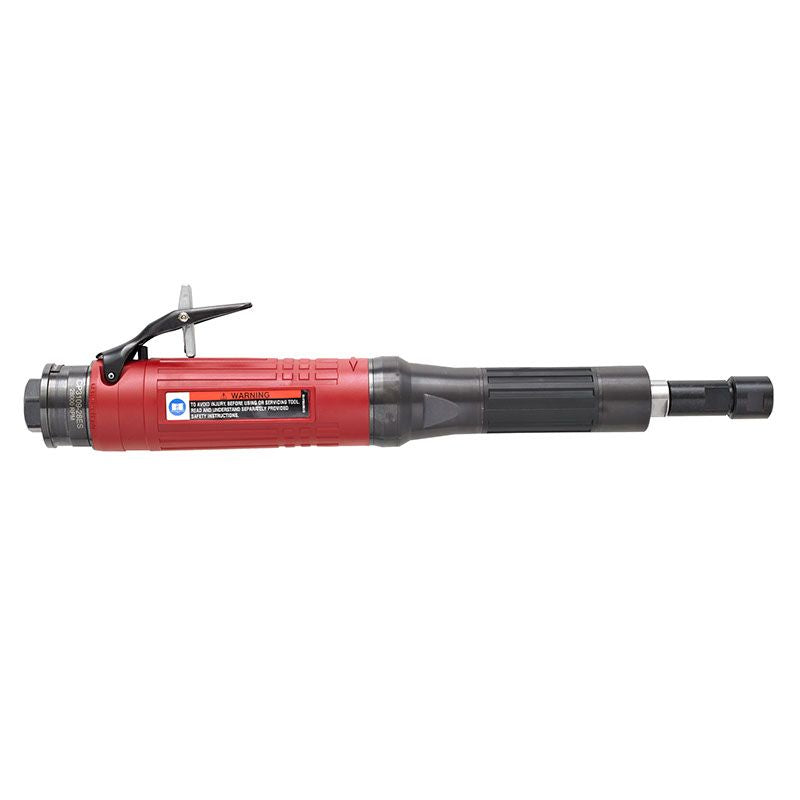

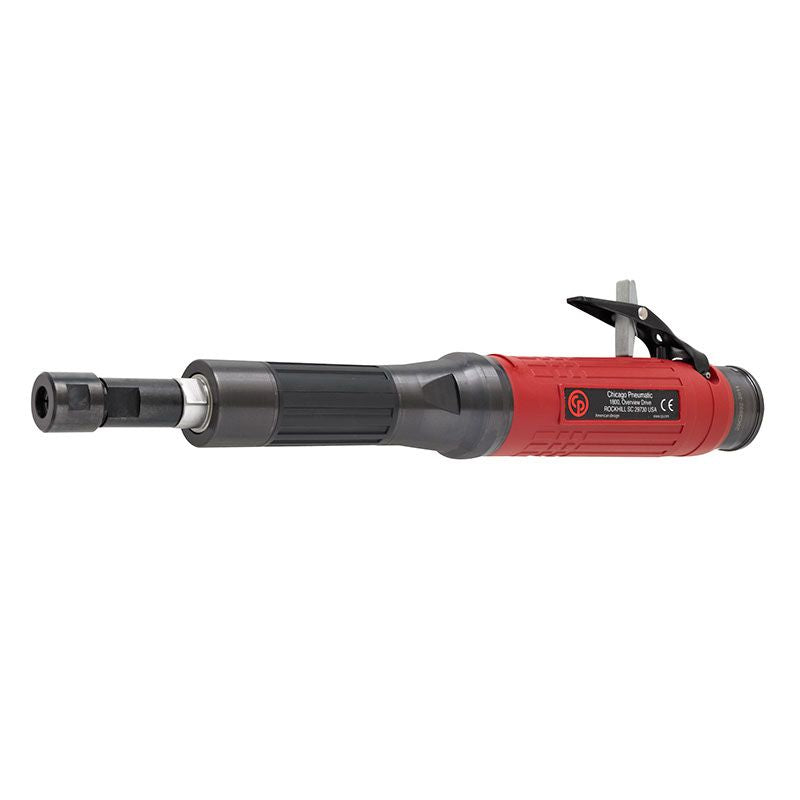

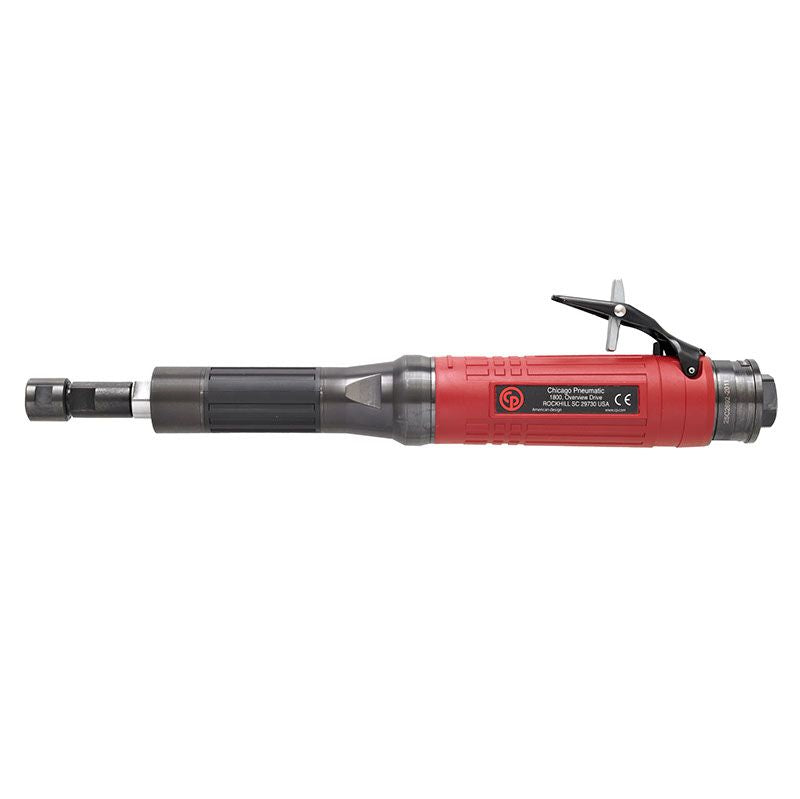

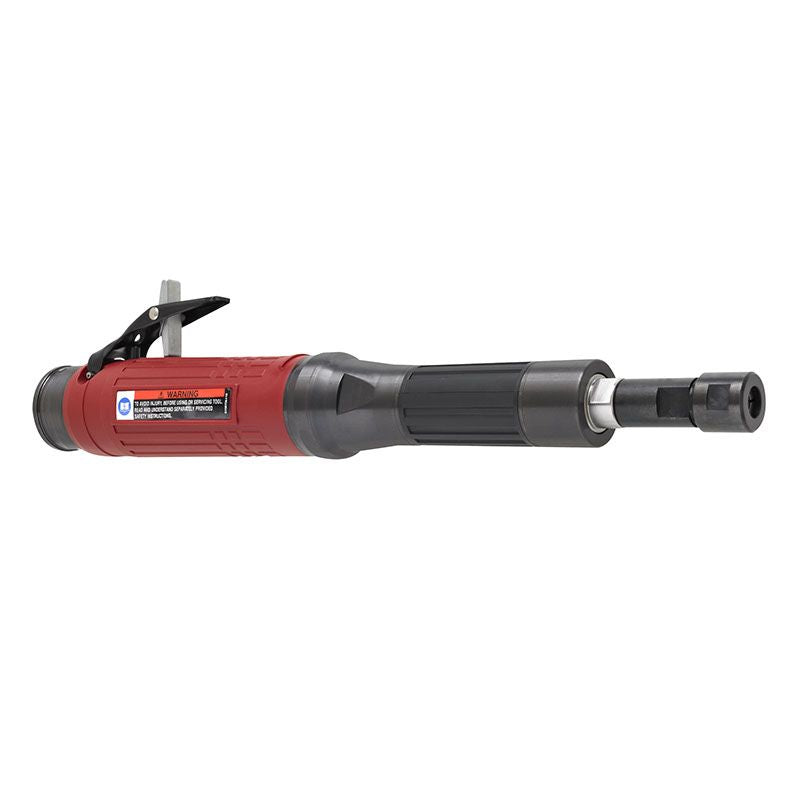

Chicago Pneumatic CP3109-15ES Ext. Die Grinder โ 6151701550
1/4"(6 mm) PNEUMATIC DIE GRINDER
The CP3109 Series - pneumatic Straight Die Grinders - meets the intensive needs of grinding, contouring, deburring, and cleaning with carbide burrs, mounted points, abrasive wheels, and flap wheels. This model with an extended straight housing has a 6.35 mm (1/4') capacity collet with a very durable bevel gear and a powerful 0.8 hp (600 W) motor. It has a free speed of 15,000 rpm.
Features
- Highest durability in demanding applications, up to 2,000 hours maintenance intervals
- Streamlined safety lever for operator safety
- Steel housing with an insulating composite over-housing for operator comfort and superior ergonomics
- Powerful 0.8hp (600 W) governed motor
Specifications
| Length (L) | 14.21 in |
| Weight | 2.87 lb |
| Free Speed | 15000 rpm |
| Air consumption at load | 31 cfm |
| Air inlet thread size (in) | 3/8 |
| Air inlet thread type | BSP |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Sound Power | 87 dB(A) |
| Sound Pressure | 76 dB(A) |
| Vibration (m/sยฒ) | 2.5 |
| Uncertainty vibration-K | 5 ft/sยฒ |
| Max power | 0.8 hp |
| Collet max capacity | 1/4 (6.35mm) |
| Collet/Collet holder/Collet nut type | Erickson serie 200 type |
| Exhaust | Rear |
| Governor type | Ball |
| Main Material type | Aluminium, Composite over-sleeve |
| Rotative inlet | No |
| Spindle lock | No |
| Starting system | Safety lever |
| Angle Type | Straight |
| CP part # | 6151701550 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
