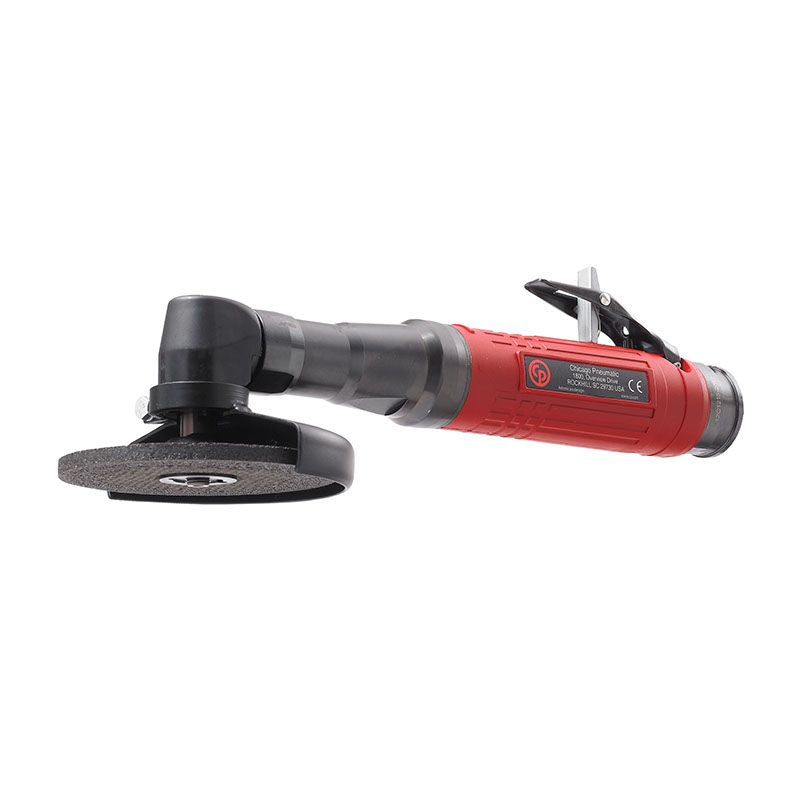

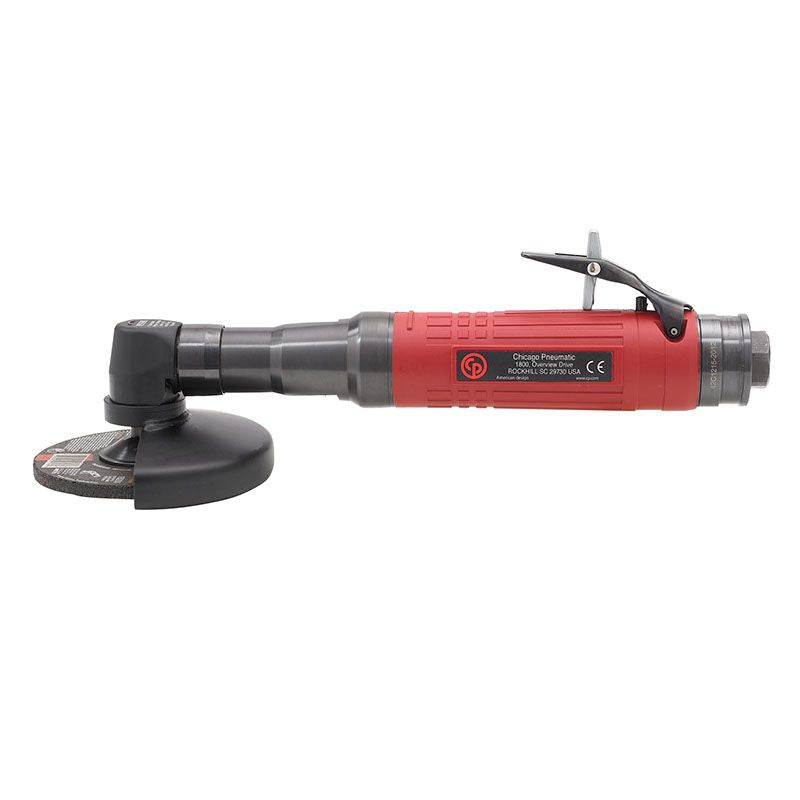

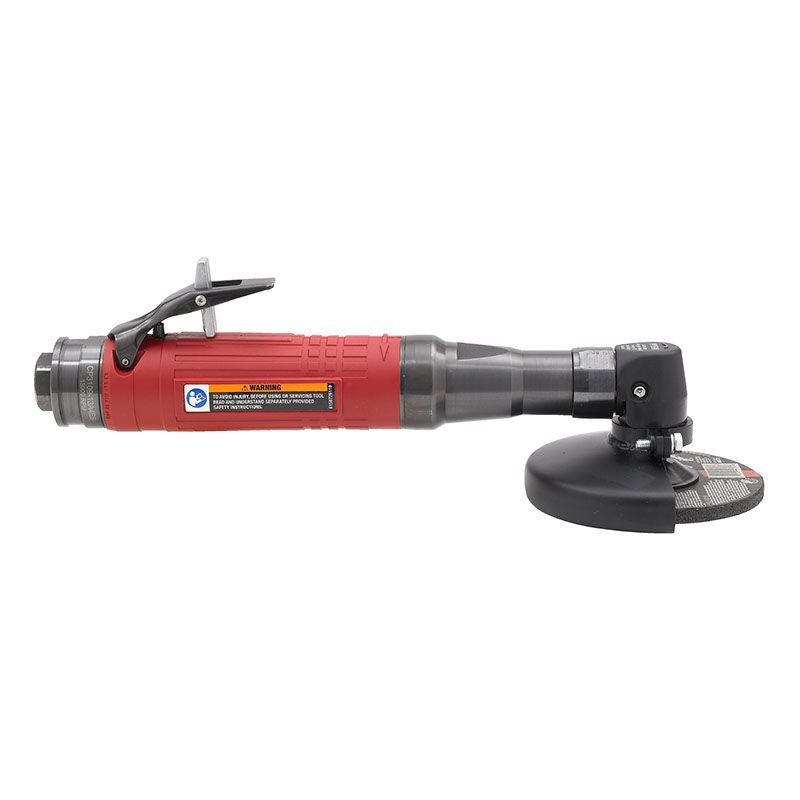

Chicago Pneumatic CP3109-13A4ES Ext. Angle Grinder 4" โ 6151607040
4"(100 mm) PNEUMATIC ANGLE GRINDER
The CP3109 4" (100 mm) Angle Grinders ensure high durability, allowing a maintenance interval of up to 2000 hours thank to its heavy duty bevel gear. Designed with a governed motor and streamlined safety level, it offers a strong safety level for operator. The powerful motor provides 0.8hp (600 W) and a free speed of 13,000 rpm. 2 models available: Standard and extended shaft.
Features
- Highest durability in demanding applications, up to 2,000 hours maintenance intervals
- Streamlined safety lever
- Governed motor for operator safety
- Steel housing with an insulating composite over-housing for operator comfort and superior ergonomics
- Standard or extended shaft
Specifications
| Free Speed | 13000 rpm |
| Air consumption at free speed | 21 cfm |
| Air consumption at load | 32 cfm |
| Sound Power | 95 dB(A) |
| Sound Pressure | 84 dB(A) |
| Vibration | 23.6 ft/sยฒ |
| Max power | 0.8 hp |
| Wheel/Disc diameter | 4 in / 100 mm |
| Length | 11.3 in |
| Weight | 3.31 lb |
| Air inlet thread size | 3/8 BSP |
| Max dynamic air working pressure | 90 psi |
| CP part # | 6151607040 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
