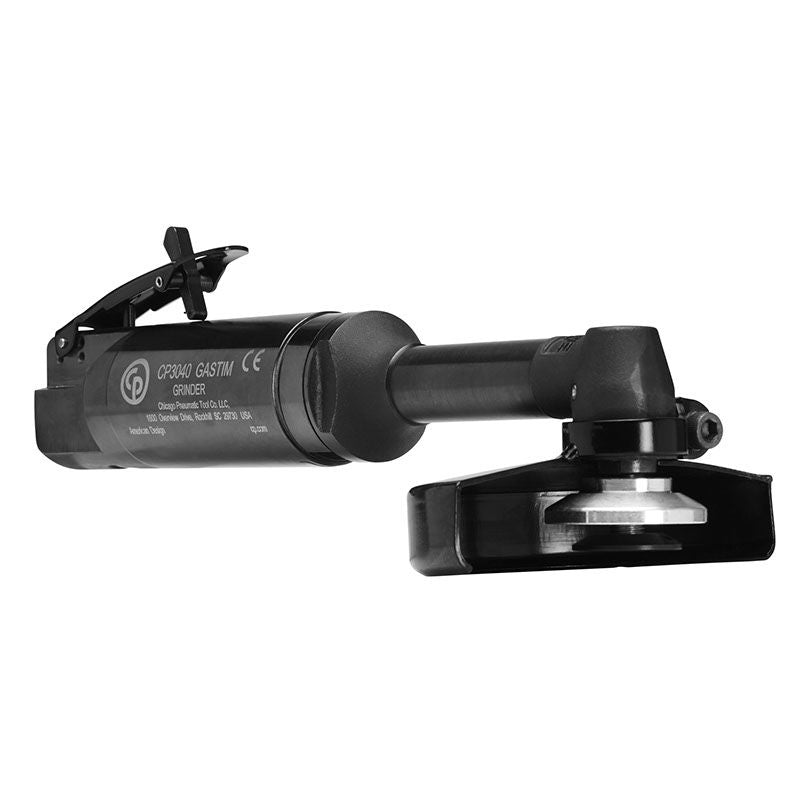

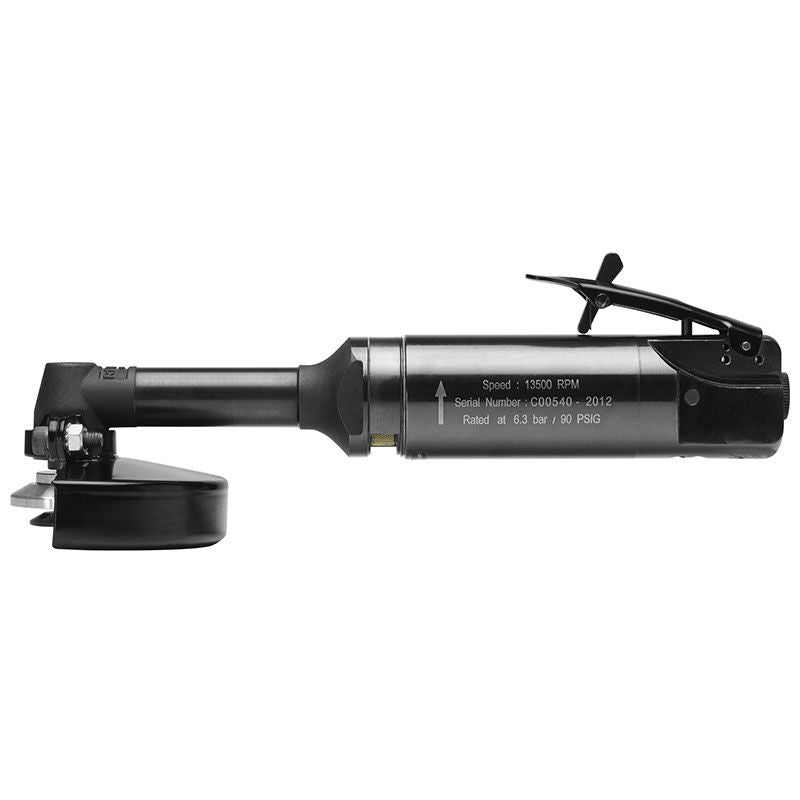

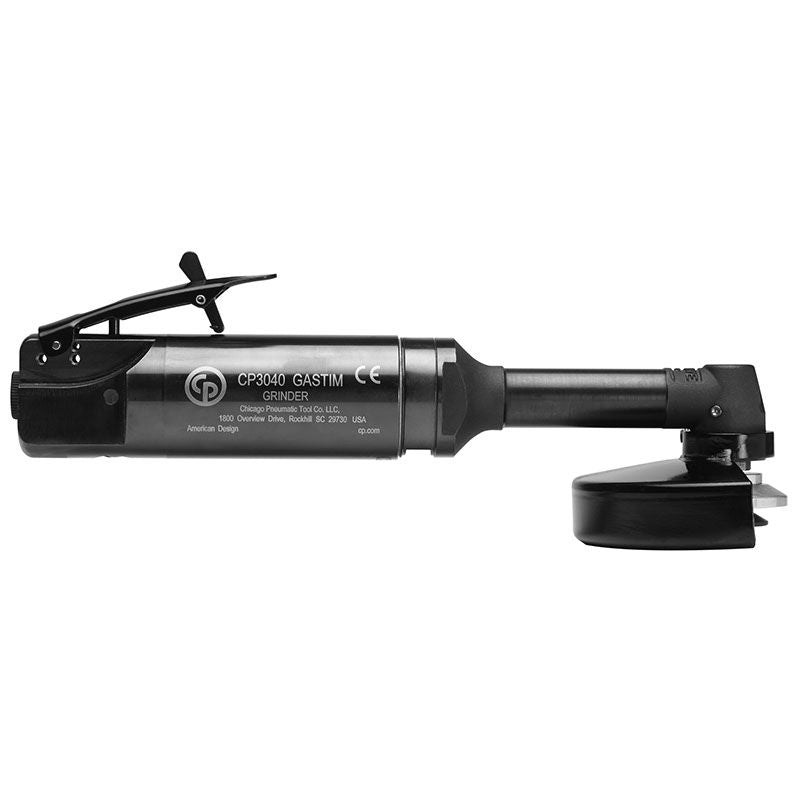

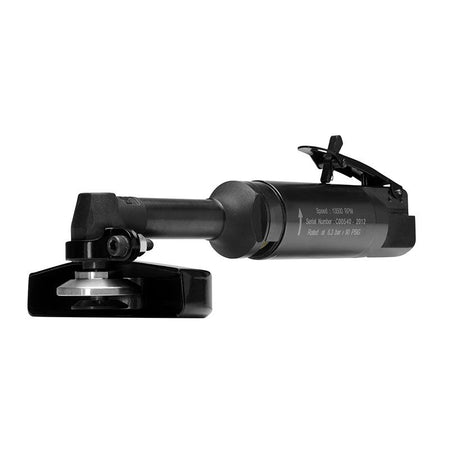

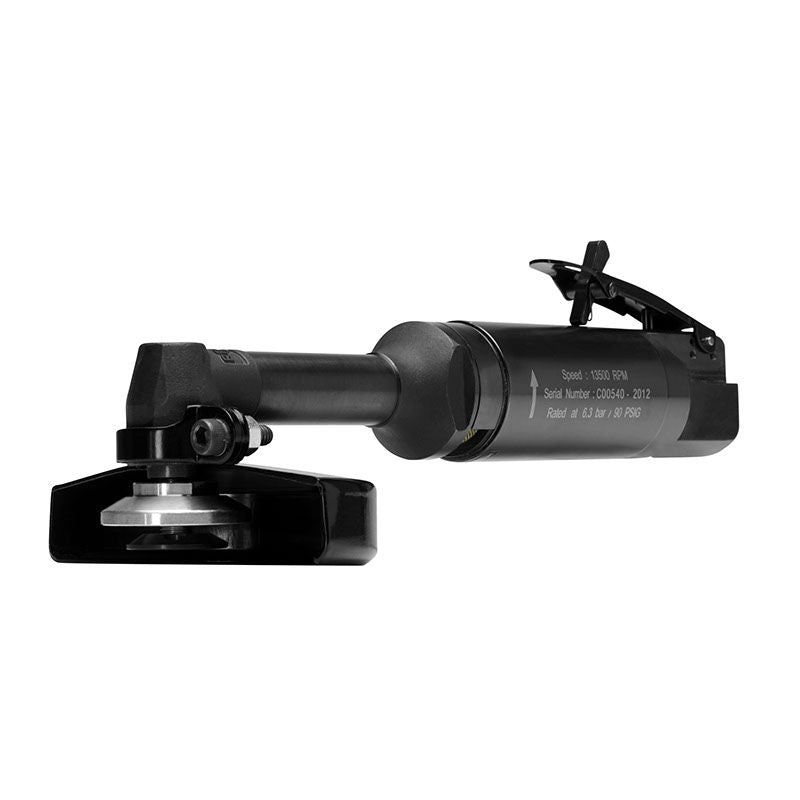

Chicago Pneumatic CP3040 GASTIM Angle Grinder 4" Ext. โ 6151607020
4"(100 mm) PNEUMATIC ANGLE GRINDER
The CP3040, 4" (100 mm) steel construction angle grinder is a perfect match when working in industrial maintenance and production. With a generated power of 0.5 hp (375 W) and designed with a 3/8-24' spindle thread. CP3040 is ultra compact and provide a free speed of 13 500 rotation per minutes. 2 models available: Standard and extended shaft.
Features
- Machined steel housing designed for tough usage
- Super durable bevel gear for a robust construction
- Ultra compact for a great maneuverability in both version standard and extended shaft.
- Up to 0.7 hp (520 W) industrial grade motor and 13,000 rotations per minute for a perfect material removal result
Specifications
| Free Speed | 13500 rpm |
| Air consumption at free speed | 32 cfm |
| Guard positions | 0 |
| Main Material type | Steel |
| Output Spindle Thread | 3/8-24 UNF |
| Starting system | Safety lever |
| Wheel/Disc diameter (in) | 4 |
| Wheel/Disc diameter (mm) | 100 |
| Sound Power | 103 dB(A) |
| Sound Pressure | 92 dB(A) |
| Uncertainty vibration-K | 10.8 ft/sยฒ |
| Vibration | 31.5 ft/sยฒ |
| Air consumption at load | 26 cfm |
| Air inlet thread size (in) | 3/8 |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 13 mm |
| Max power | 1.01 hp |
| Length (L) | 10.63 in |
| Weight | 3.75 lb |
| CP part # | 6151607020 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
