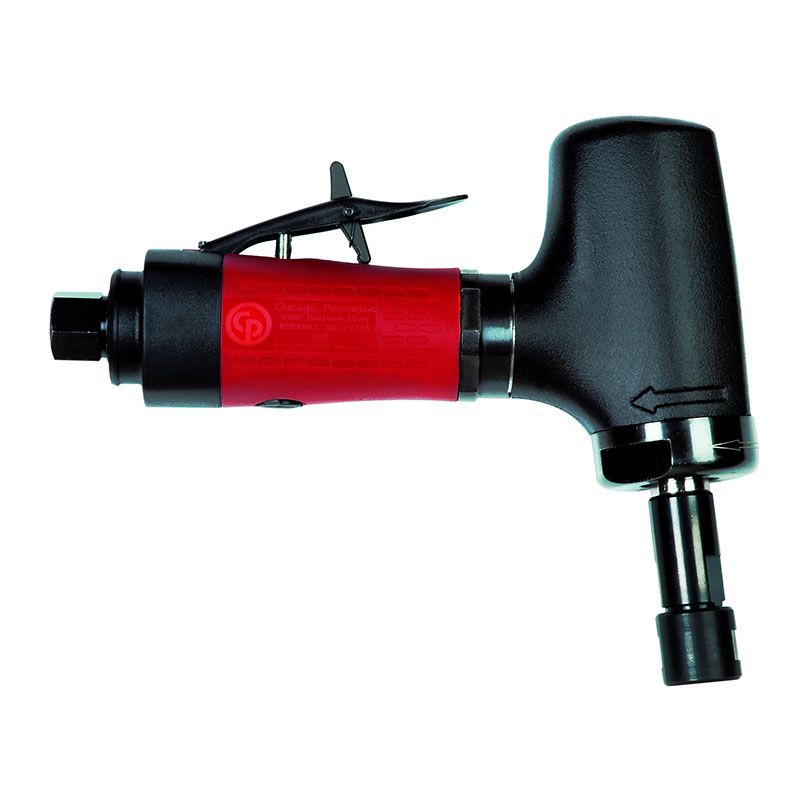

Chicago Pneumatic CP3030-420R Angle Die Grinder โ 6151604140
1/4"(6 mm) PNEUMATIC DIE GRINDER
The CP3030 Series are pneumatic Die Grinders with a 1/4' (6.35 mm) collet capacity designed for optimum productivity in heavy applications such as deburring, die contouring, light chamfering. It features a powerful gearless design to increase the interval between maintenance. The range is defined by 11 models from 0.4 hp (300 W) to 0.7 hp (500 W). All tools are equipped with a safety lever and benefit from a rear exhaust.
Features
- Industrial grade durability up to 1,000 hours between maintenance intervals
- Gearless construction for high durability
- Up to 0.7hp (500 W) industrial grade motor and 30,000 rpm for a perfect material removal result
- Compact and composite handle for a great operator comfort
Specifications
| Length (L) | 6.85 in |
| Weight | 1.84 lb |
| Free Speed | 20000 rpm |
| Air consumption at free speed | 27 cfm |
| Air consumption at load | 23 cfm |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.38 in |
| Sound Power | 87.2 dB(A) |
| Sound Pressure | 76.2 dB(A) |
| Vibration (m/sยฒ) | <2.5 |
| Angle Type | 97ยฐ |
| Max power | 0.54 hp |
| Collet max capacity | 1/4 (6.4mm) |
| Collet/Collet holder/Collet nut type | Erickson serie 200 type |
| Exhaust | Rear |
| Governor type | NA |
| Main Material type | Aluminium, Composite over-sleeve |
| Rotative inlet | No |
| Spindle lock | No |
| Starting system | Safety lever |
| CP part # | 6151604140 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151604140
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
