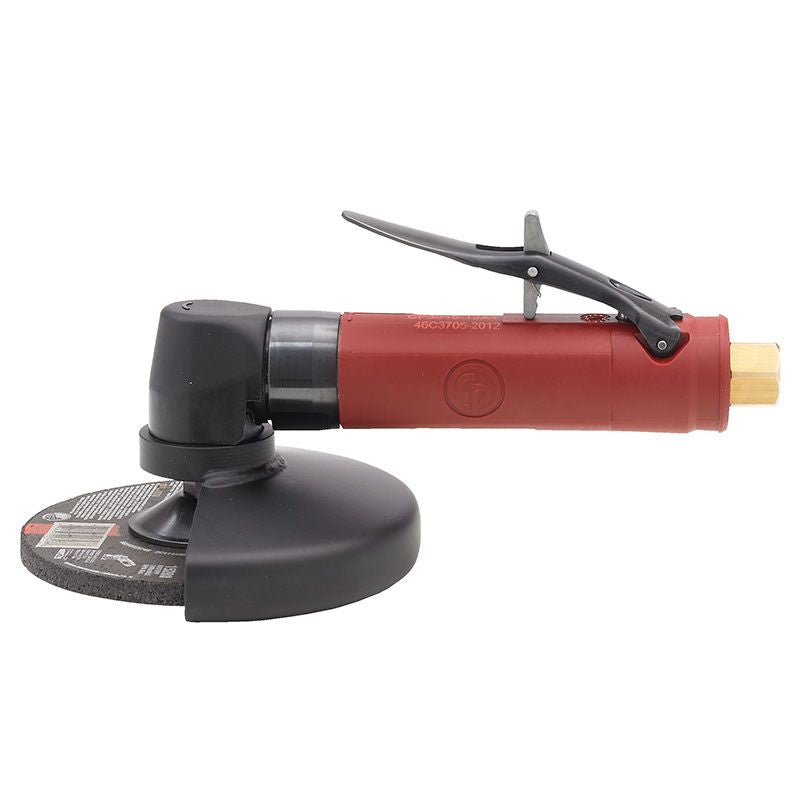

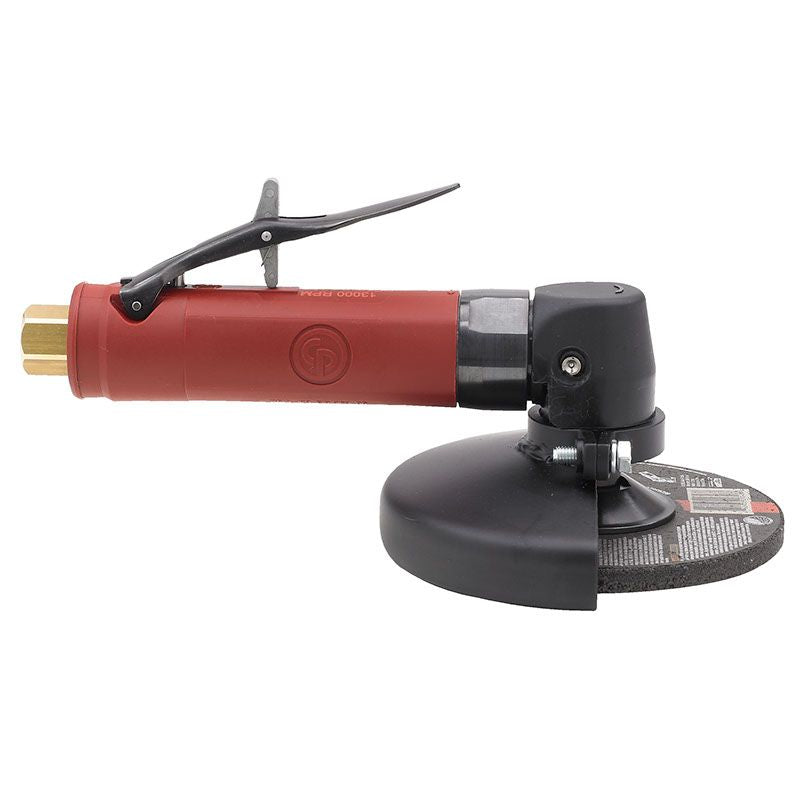

Chicago Pneumatic CP3019-20A3 Angle Grinder 3" โ 6151607070
3"(75 mm) PNEUMATIC ANGLE GRINDER
The combination of extreme durability and powerful motor makes the CP3019 Angle Grinders range a great product for strong productivity. Designed with a governed motor and streamlined safety level, it offers a strong safety level for the operator. 3 models from 3' (75mm) to 4' (100mm) max wheel capacity and a 0.5 hp (375 W) powerful motor define the range. CP3019 compact Angle Grinder range free speed is from 13,500 to 20,000 rotations per minute.
Features
- Highest durability in demanding applications, up to 2,000 hours maintenance intervals
- Streamlined safety lever
- Governed motor for operator safety
- Compact body with an insulating composite over-housing for operator comfort and superior ergonomics
Specifications
| Free Speed | 20000 rpm |
| Air consumption at free speed | 12 cfm |
| Air consumption at load | 19 cfm |
| Wheel/Disc diameter | 3 in / 75 mm |
| Max power | 0.5 hp |
| Sound Power | 93.6 dB(A) |
| Sound Pressure | 82.6 dB(A) |
| Vibration | 43.6 ft/sยฒ |
| Length | 6.42 in |
| Weight | 1.32 lb |
| Air inlet thread size | 1/4 NPT |
| Max dynamic air working pressure | 90 psi |
| CP part # | 6151607070 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151607070
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
