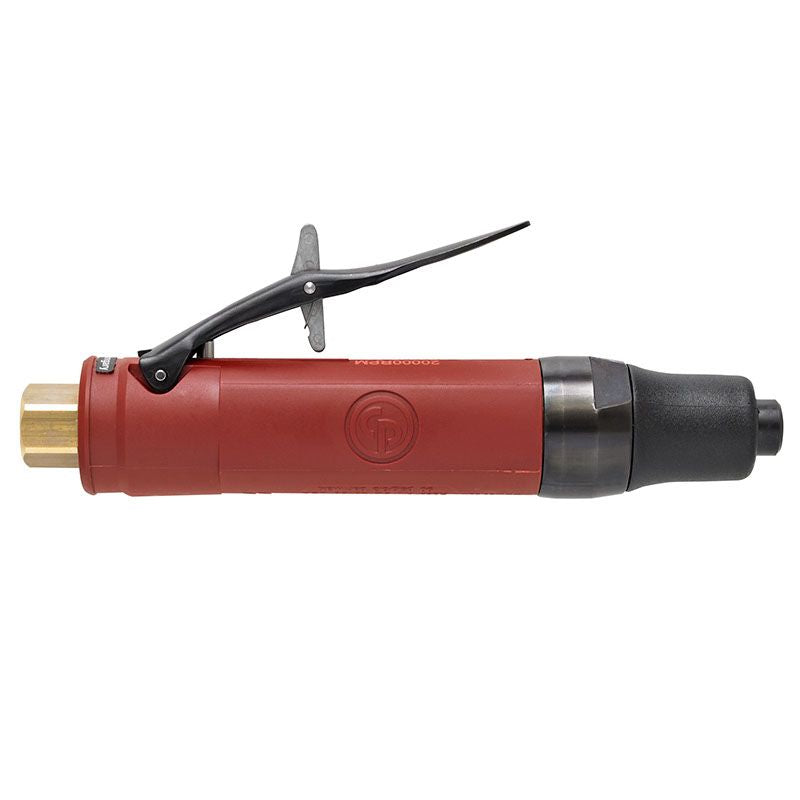

1/4"(6 mm) PNEUMATIC DIE GRINDER
The CP3019 Series - straight pneumatic Die Grinders, with a 1/4' (6.35 mm) collet capacity or CNOMO collet capacity consists of 17 models with 5 free speed options from 12,000 to 40,000 rpm and a straight or straight extended housing collet spindle. The powerful motor offers 0.5 hp (375 W) for optimum productivity in heavy applications such as deburring, die contouring, and light chamfering. A compact design and a simplified safety lever characterize the range.
Features
- Highest durability in demanding applications, up to 2,000 hours maintenance intervals
- Streamlined safety lever for operator safety
- Powerful 0.5 hp (375 W) governed motor ensures safety
- Compact body with an insulating composite over-housing for operator comfort and superior ergonomics
Specifications
| Length (L) | 6.65 in |
| Weight | 0.84 lb |
| Free Speed | 18000 rpm |
| Air consumption at free speed | 5.3 cfm |
| Air consumption at load | 15 cfm |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.31 in |
| Min hose diam (5 m hose length) | 8 mm |
| Sound Power | 86.8 dB(A) |
| Sound Pressure | 75.8 dB(A) |
| Vibration (m/sยฒ) | <2.5 |
| Angle Type | Straight |
| Max power | 0.5 hp |
| Collet max capacity | 1/4 (6.35mm) |
| Collet/Collet holder/Collet nut type | Erickson serie 300 type |
| Exhaust | Rear |
| Governor type | Ball |
| Main Material type | Aluminium, Composite over-sleeve |
| Rotative inlet | No |
| Spindle lock | No |
| Starting system | Safety lever |
| CP part # | 6151600090 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151600090
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
