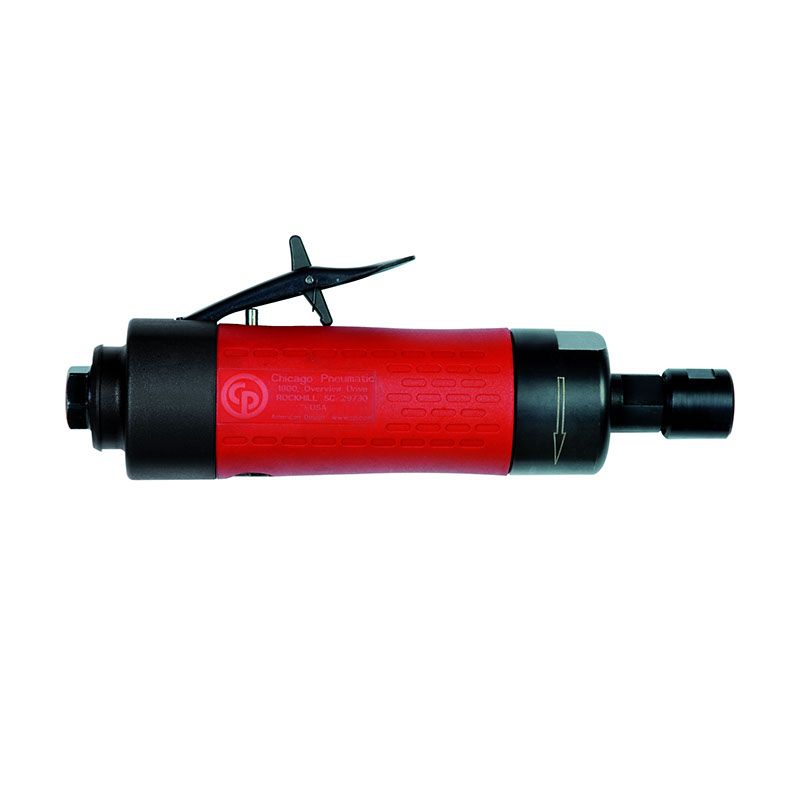

Chicago Pneumatic CP3000-515R Die Grinder โ 6151600270
1/4"(6 mm) PNEUMATIC DIE GRINDER
The CP3000 Series - Die Grinders, with a collet capacity of 1/4' (6.35 mm), are defined by 12 models ranging from 0.4 hp (300 W) to 0.7 hp (500 W). All tools are fitted with a safety lever and, depending on the configuration, benefit from a front or rear exhaust. Use with either carbide burrs or mounted grinding stones, available separately.
Features
- Industrial grade durability
- Compact and composite handle
- Up to 0.7hp (500 W) motor
- 30,000 rpm capability
Specifications
| Length (L) | 7.68 in |
| Weight | 1.88 lb |
| Free Speed | 15000 rpm |
| Air consumption at free speed | 29 cfm |
| Air consumption at load | 25 cfm |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.38 in |
| Sound Power | 91.7 dB(A) |
| Sound Pressure | 80.7 dB(A) |
| Vibration (m/sยฒ) | <2.5 |
| Max power | 0.67 hp |
| Collet max capacity | 1/4 (6.4mm) |
| Exhaust | Rear |
| Main Material type | Aluminium, Composite over-sleeve |
| CP part # | 6151600270 |
