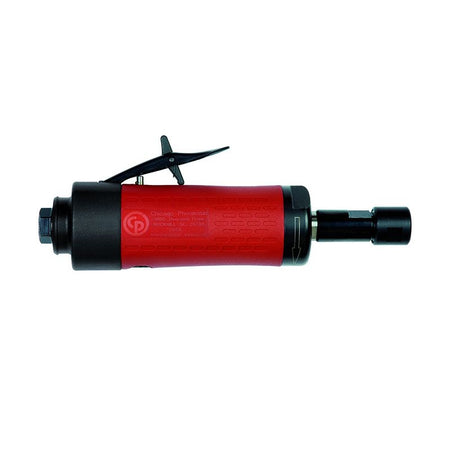

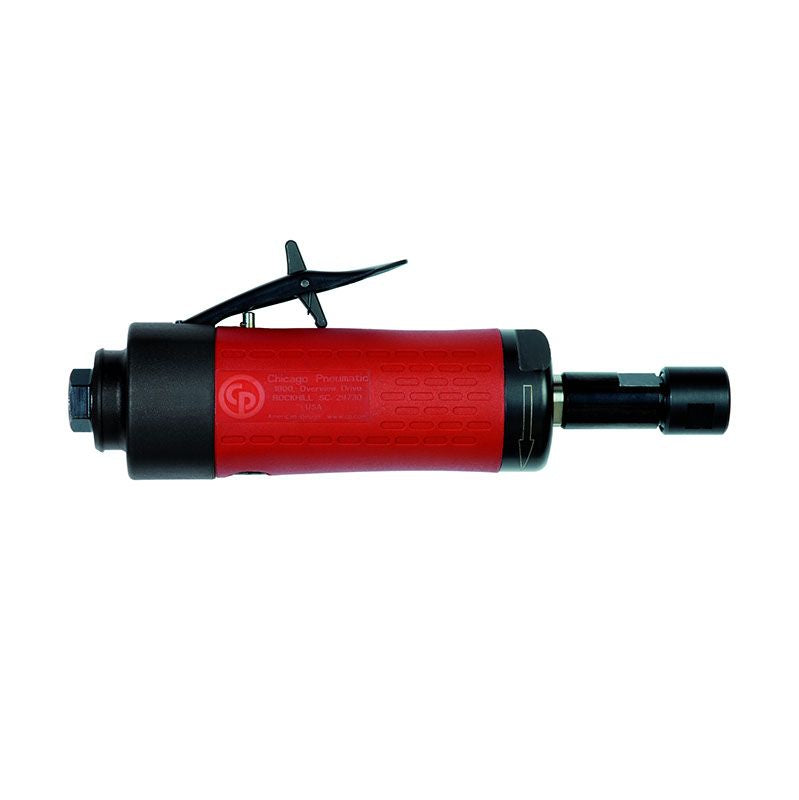

Chicago Pneumatic CP3000-420F Die Grinder โ 6151600250
1/4"(6 mm) PNEUMATIC DIE GRINDER
The CP3000 Series - Die Grinders, with a collet capacity of 1/4' (6.35 mm), are defined by 12 models ranging from 0.4 hp (300 W) to 0.7 hp (500 W). All tools are fitted with a safety lever and benefit from a front exhaust. Use with either carbide burrs or mounted grinding stones, available separately.
Features
- Industrial grade durability up to 1,000 hours between maintenance intervals
- Compact and composite handle for great operator comfort
- Up to 0.7hp (500 W) industrial grade motor and 30,000 rpm for perfect material removal
Specifications
| Length (L) | 7.72 in |
| Weight | 1.69 lb |
| Free Speed | 20000 rpm |
| Air consumption at free speed | 25 cfm |
| Air consumption at load | 22 cfm |
| Air inlet thread size | 1/4 |
| Max dynamic air working pressure | 90 psi |
| Min hose diameter (16 ft hose length) | 0.38 in |
| Min hose diameter (5 m hose length) | 10 mm |
| Sound Power | 93 dB(A) |
| Sound Pressure | 82 dB(A) |
| Vibration (m/sยฒ) | <2.5 |
| Max power | 0.54 hp |
| Collet max capacity | 1/4 (6.4mm) |
| Collet/Collet holder/Collet nut type | Erickson serie 200 type |
| Exhaust | Front |
| Starting system | Safety lever |
| CP part # | 6151600250 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151600250
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
