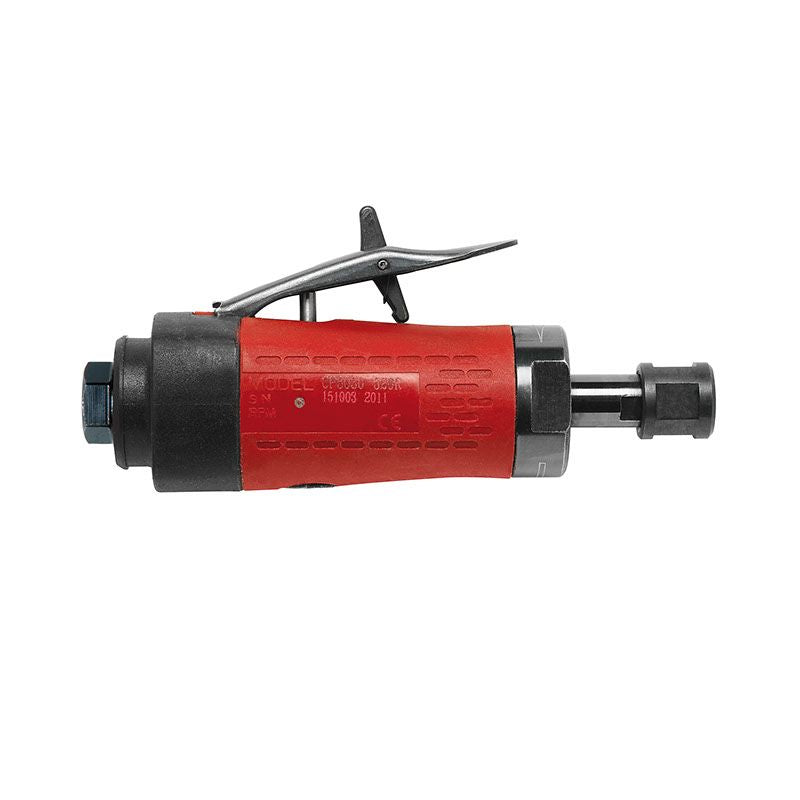

Chicago Pneumatic CP3000-325R Die Grinder โ 6151600150
1/4" (6 mm) Pneumatic Die Grinder
The CP3000 Series - Die Grinders provide exceptional performance and durability with a lightweight design, making them ideal for both professional and industrial use. Featuring a safety lever and a powerful motor, these tools are designed for efficiency and comfort during operation.
Features
- 1/4" collet capacity
- Up to 0.7 hp (500 W) motor
- Free speed of 25,000 rpm
- Lightweight design at 0.87 lb
- Safety lever starting system
- Rear exhaust
Specifications
| Length (L) | 5.91 in |
| Weight | 0.87 lb |
| Free Speed | 25000 rpm |
| Air consumption at free speed | 21 cfm |
| Air consumption at load | 19 cfm |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 90 psi |
| Min hose diameter (16 ft hose length) | 0.38 in |
| Min hose diameter (5 m hose length) | 10 mm |
| Sound Power | 90.1 dB(A) |
| Sound Pressure | 79.1 dB(A) |
| Uncertainty vibration-K | 5.2 ft/sยฒ |
| Max power | 0.4 hp |
| Collet max capacity | 1/4 (6.4mm) |
| CP part # | 6151600150 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
