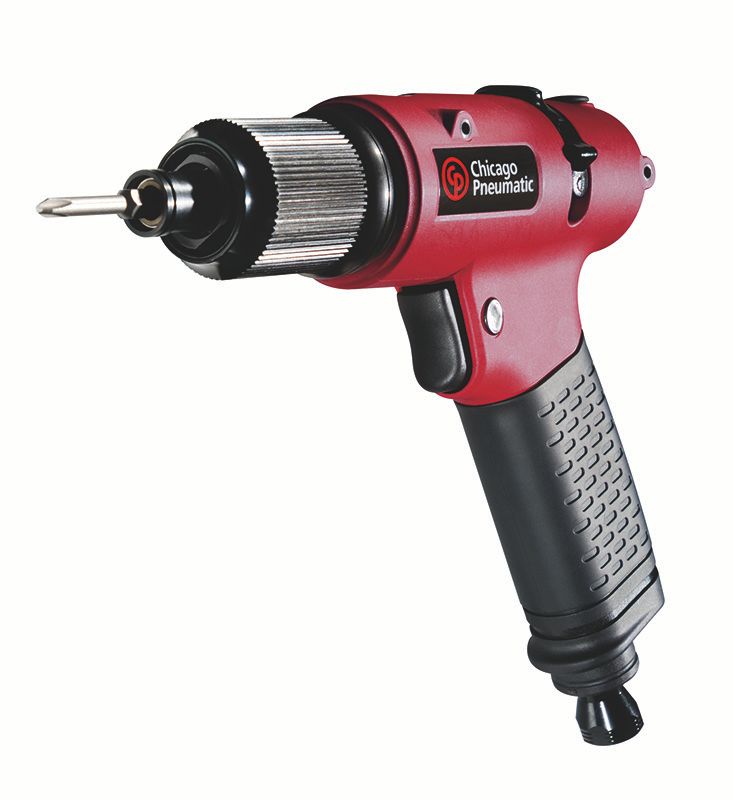

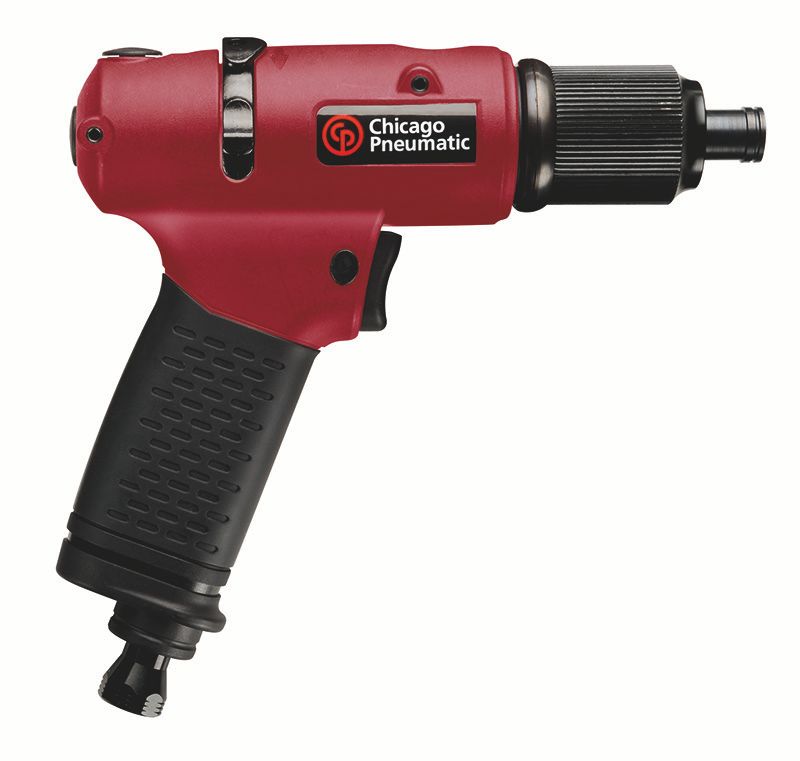

Chicago Pneumatic CP2612 Screwdriver - Cushion – 6151922612

Description

1/4" hex pistol cushion reverse pneumatic screwdriver

The CP2612 is a keyless torque setting 1/4" hex pistol cushion clutch screwdriver offering a wide torque range, speed, and high reliability in high rate fastening operations. Operator comfort is ensured with its limited noise level and the 3 pneumatic inlets to ensure vertical and horizontal applications.

Features

• Keyless torque setting
• 1/4" hex output drive
• Pistol handle design
• Low noise and vibration
• 3 pneumatic inlets for versatility

Specifications

Max torque in forward	4.4 ft.lbf
Min torque in forward	0.7 ft.lbf
Torque Control System	Non shut-off-clutch
Adjustment	Rotative ring
Body	Composite
Clutch housing	Steel
Clutch Type	Cushion clutch
Handle type	Pistol
Main Material type	Aluminium
Output drive size (in)	1/4
Output drive type	Hex
Output retainer type	Quick change
Reversible	Yes
Starting system	Trigger
Free Speed	1700 rpm
Air consumption at free speed	21 cfm
Air inlet thread size (in)	1/4
Air inlet thread type	NPT
Max dynamic air working pressure	90 psi
Min hose diam (16 ft hose length)	0.38 in
Min hose diam (5 m hose length)	10 mm
Height (H)	6.89 in
Length (L)	7.48 in
Weight	1.98 lb
Sound Power	88 dB(A)
Sound Pressure	77 dB(A)
Vibration (m/s²)	<2.5
CP part #	6151922612

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
