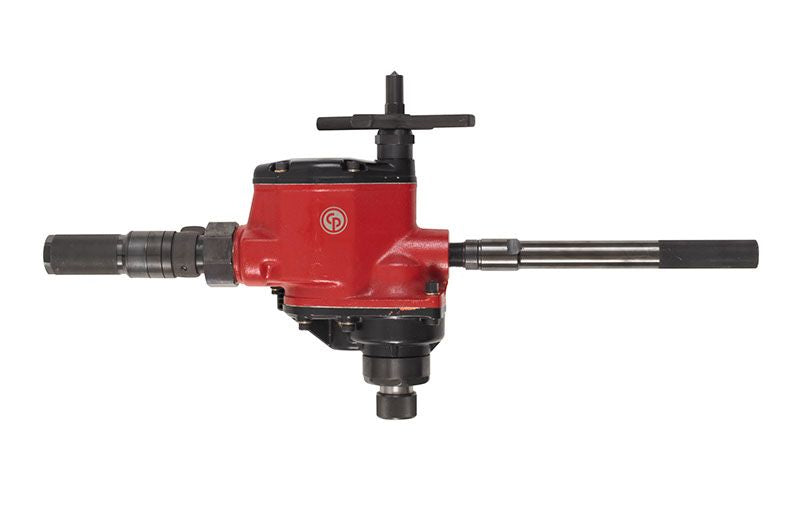

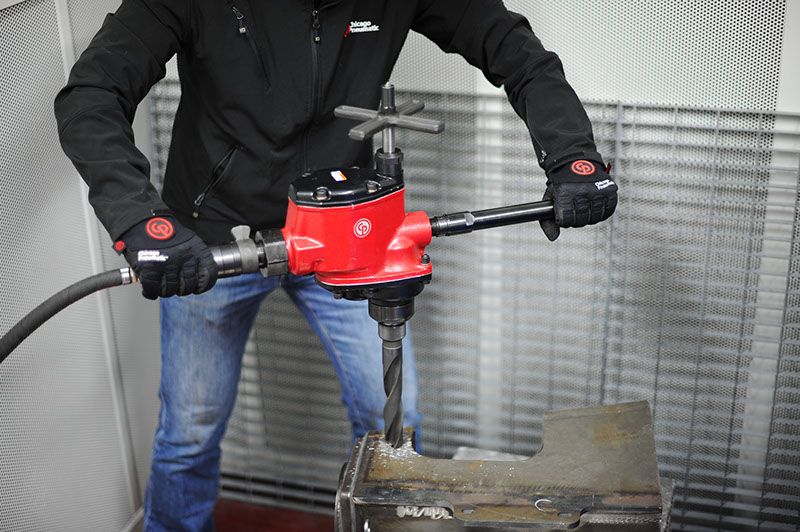

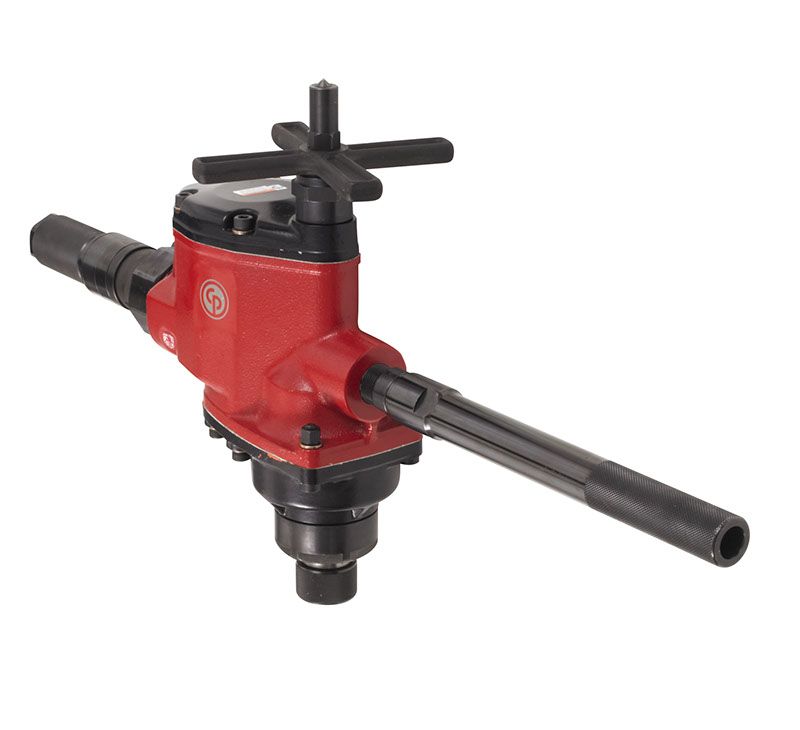

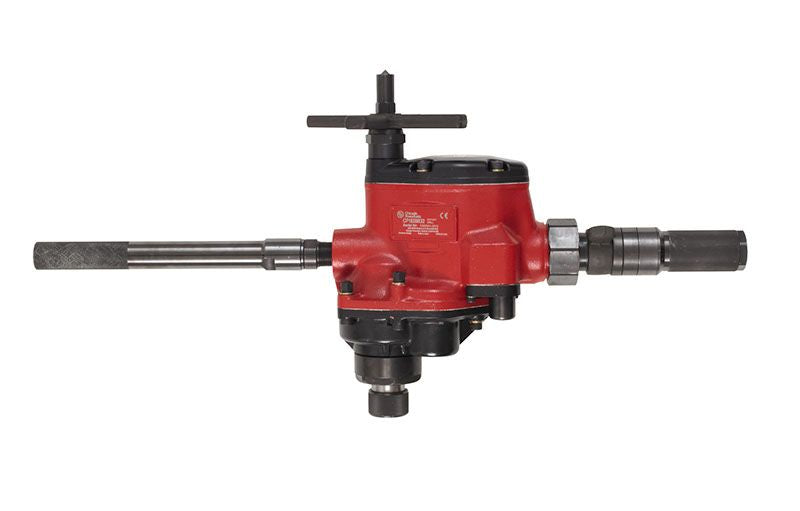

Chicago Pneumatic CP1820R32 T-handle Drill - MT3 – 6151580290

Description

1 1/4"(32 mm) CORNER PNEUMATIC DRILL

Take advantages of this CP1820R range of durable and precise reversible corner drills.

Features

• Durable and precise reversible corner drills
• Two models available: 1.2 Hp (890 W) and 2.8 Hp (2100 W)
• High stall torque ranging from 78.4 Nm (57.8 ft.lb) to 196.0 Nm (144.6 ft.lb)
• Morse taper socket options available from N° 2 to N° 3
• Suitable for drilling, reaming & tapping of mild steel, cast iron and forged steel

Specifications

Chuck max capacity (in)	1-1/4
Chuck max capacity (mm)	32
Chuck type	Morse taper 3
Handle type	T-handle
Main Material type	Aluminum
Reversible	Yes
Starting system	Self return rolling throttle
Sound Power	121 dB(A)
Sound Pressure	110 dB(A)
Uncertainty vibration-K	2.6 ft/s²
Air consumption at load	110 cfm
Air inlet thread size (in)	1/2
Air inlet thread type	NPT
Max dynamic air working pressure	90 psi
Min hose diam (16 ft hose length)	0.75 in
Min hose diam (5 m hose length)	19 mm
Max power	2.82 hp
Stall torque	145 ft.lbf
Free Speed	380 rpm
Air consumption at free speed	0 cfm
Length (L)	13.9 in
Weight	31.9 lb
CP part #	6151580290

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
