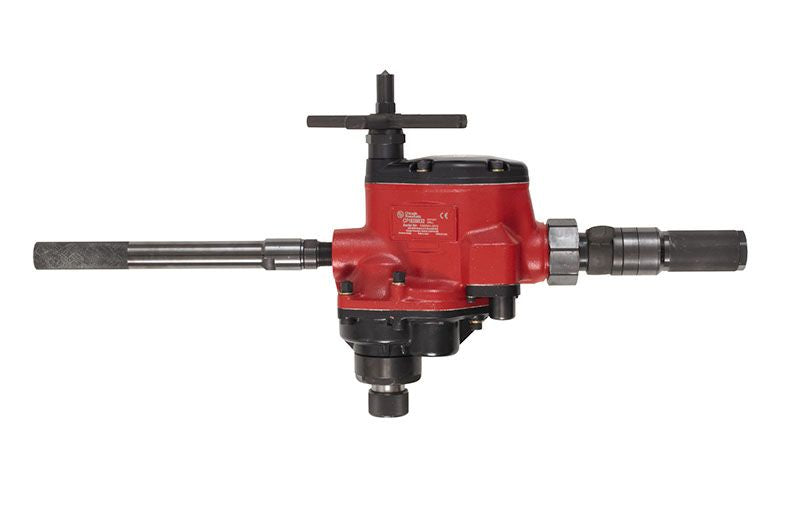

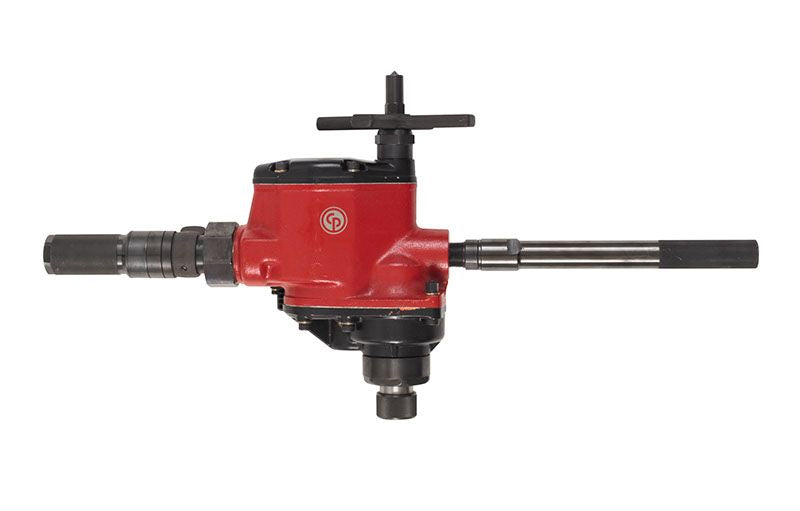

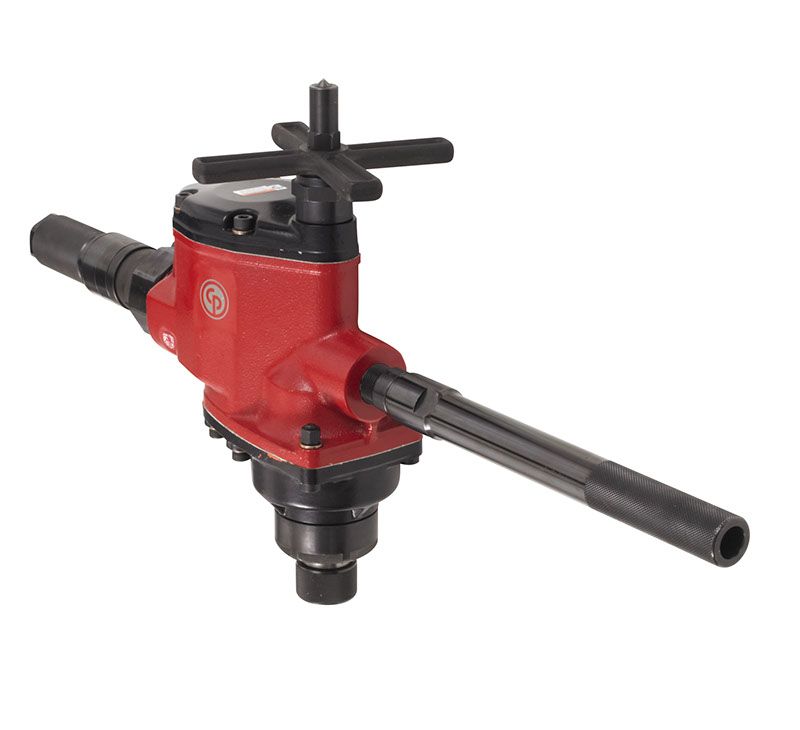

Chicago Pneumatic CP1820R22 T-handle Drill - MT2 โ 6151580280
7/8"(22mm) CORNER PNEUMATIC DRILL
Take advantages of this CP1820R range of durable and precise reversible corner drills. The CP1820R range is defined by 2 models with 1.2 Hp (890 W) to 2.8 Hp (2100 W) pneumatic motor from 380 to 480 RPM and from 78.4 Nm (57.8 ft.lb) to 196.0 Nm (144.6 ft.lb) stall torque.
Features
- Durable reversible corner drills
- 1.2 Hp to 2.8 Hp pneumatic motor
- Speed range from 380 to 480 RPM
- Stall torque from 78.4 Nm to 196.0 Nm
- Morse tapper socket Nยฐ 2 to Nยฐ 3
- Applications include drilling, reaming & tapping
- Suitable for mild steel, cast iron, and forged steel
Specifications
| Chuck max capacity (in) | 7/8 |
| Chuck max capacity (mm) | 22 |
| Chuck type | Morse taper 2 |
| Handle type | T-handle |
| Main Material type | Aluminum |
| Reversible | Yes |
| Starting system | Self return rolling throttle |
| Sound Power | 109 dB(A) |
| Sound Pressure | 98 dB(A) |
| Uncertainty vibration-K | 3.9 ft/sยฒ |
| Air consumption at load | 42 cfm |
| Air inlet thread size (in) | 1/2 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Max power | 1.19 hp |
| Stall torque | 57.8 ft.lbf |
| Free Speed | 480 rpm |
| Air consumption at free speed | 0 cfm |
| Length (L) | 11.1 in |
| Weight | 16 lb |
| CP part # | 6151580280 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
