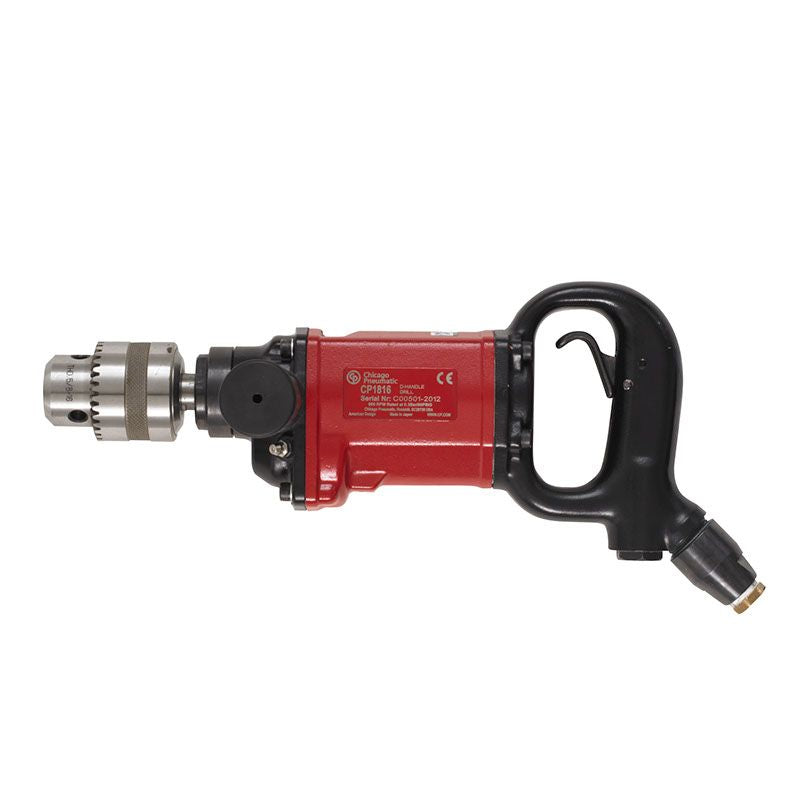

Chicago Pneumatic CP1816 D-handle Drill 1HP โ 6151580300
5/8"(16 mm) D-HANDLE PNEUMATIC DRILL
Take advantages of this CP1816 durable and precise straight D-Handle drill. The CP1816 straight D-Handle drill is defined by a 1.0 Hp (750 W) pneumatic motor, 800 RPM and 34.3 Nm (25.3 ft.lb) stall torque. Chuck capacity is 5/8' (16 mm). CP1816 straight D-Handle drill cover a large variety of applications like drilling of mild steel, cast iron.
Features
- Powerful 1 Hp (750 W) Air motor for intensive application
- Ergonomic D-Handle design
- 5/8" (16 mm) chuck capacity
- Durable gearbox for strong drilling
Specifications
| Chuck max capacity (in) | 5/8 |
| Chuck max capacity (mm) | 16 |
| Chuck type | Keyed |
| Handle type | D-handle |
| Main Material type | Aluminum |
| Reversible | No |
| Starting system | Trigger |
| Sound Power | 101 dB(A) |
| Sound Pressure | 90 dB(A) |
| Uncertainty vibration-K | 1.6 ft/sยฒ |
| Air consumption at load | 42 cfm |
| Air inlet thread size (in) | 3/8 |
| Air inlet thread type | PT |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Max power | 1.01 hp |
| Stall torque | 25.3 ft.lbf |
| Free Speed | 800 rpm |
| Air consumption at free speed | 0 cfm |
| Length (L) | 14.33 in |
| Weight | 8.16 lb |
| CP part # | 6151580300 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151580300
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
