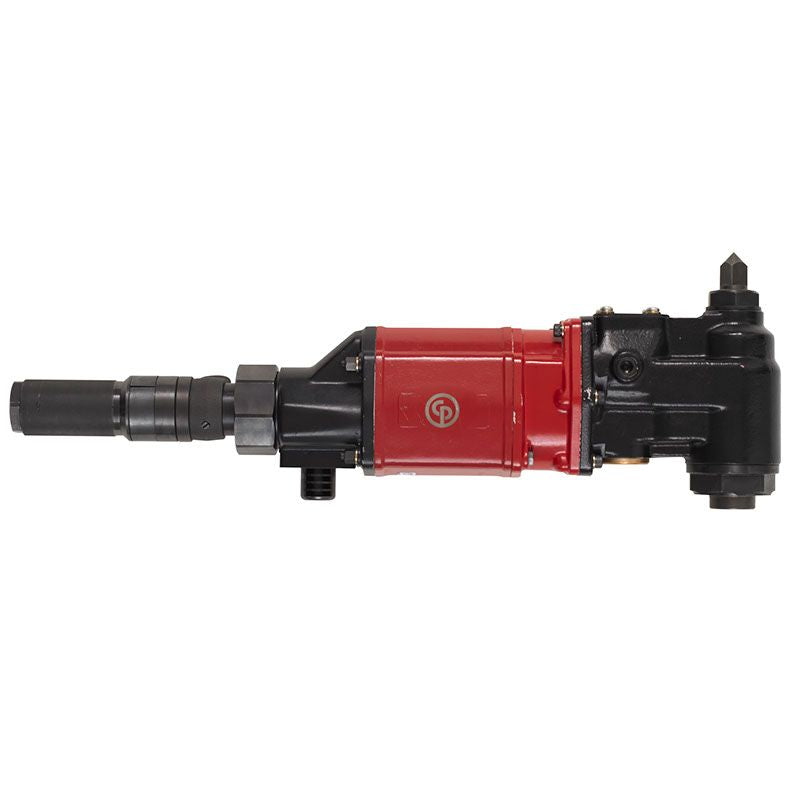

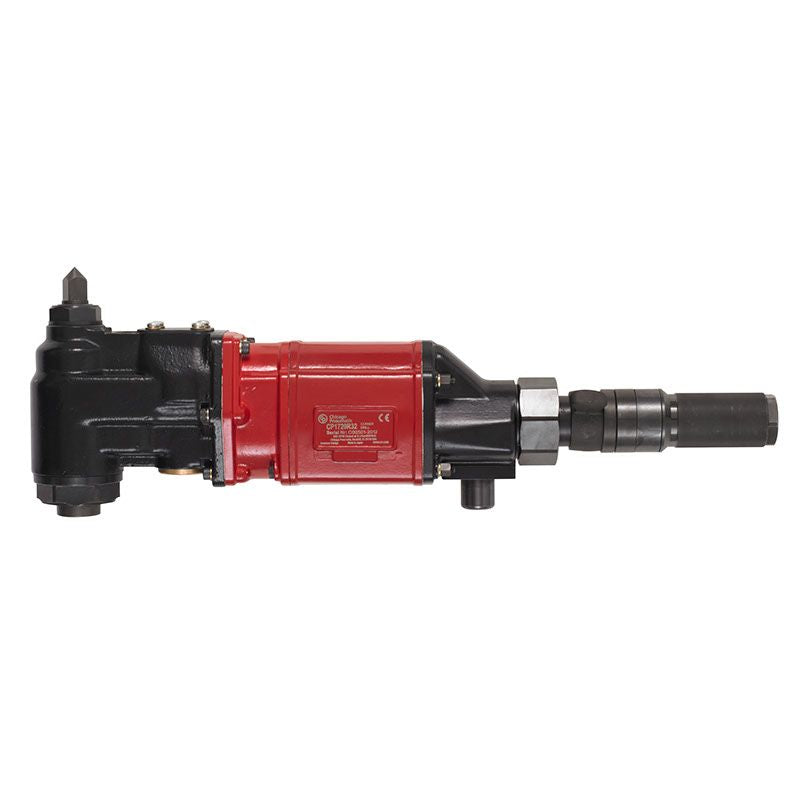

Chicago Pneumatic CP1720R32 Corner Drill - MT3 โ 6151580260
1 1/4" (32 mm) CORNER PNEUMATIC DRILL

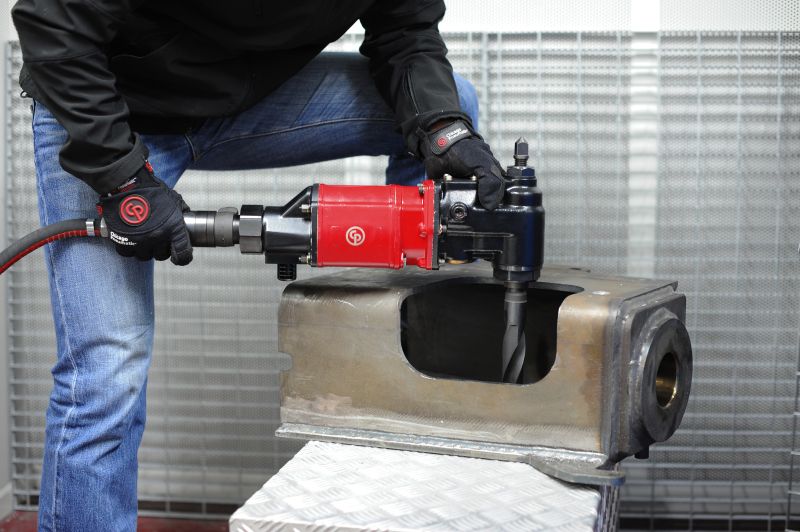

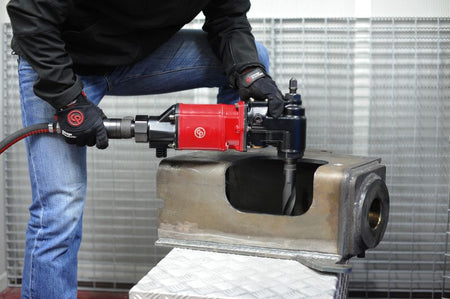

Take advantages of this CP1720R range of durable and precise reversible corner drills. The CP1720R range is defined by 3 models with 1.2 Hp (890 W) to 2.2 Hp (1630 W) pneumatic motor from 140 to 430 RPM and from 80.4 Nm (59.3 ft.lb) to 392.0 Nm (289.3 ft.lb) stall torque. Morse tapper socket are form Nยฐ 2 to Nยฐ 4. CP1720R reversible corner drills cover a large variety of applications like drilling, reaming & tapping of mild steel, cast iron.
Features
- Durable and precise reversible corner drills
- High power pneumatic motor
- Wide range of applications
Specifications
| Chuck max capacity (in) | 1-1/4 |
| Chuck max capacity (mm) | 32 |
| Chuck type | Morse taper 3 |
| Handle type | Corner |
| Main Material type | Aluminum |
| Reversible | Yes |
| Sound Power | 115 dB(A) |
| Air consumption at load | 63 cfm |
| Max power | 2.19 hp |
| Weight | 29.7 lb |
| Length (L) | 22.76 in |
| Stall torque | 131 ft.lbf |
| CP part # | 6151580260 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151580260
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
