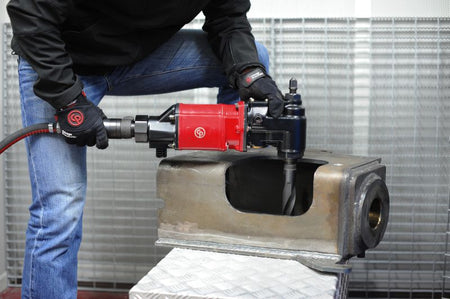

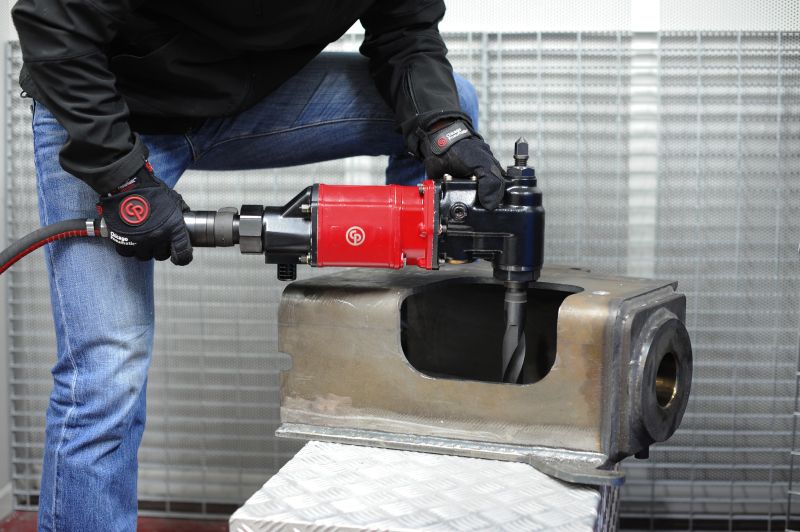

Chicago Pneumatic CP1720R22 Corner Drill - MT2 โ 6151580250
7/8"(22mm) CORNER PNEUMATIC DRILL
Take advantages of this CP1720R range of durable and precise reversible corner drills. The CP1720R range is defined by 3 models with 1.2 Hp (890 W) to 2.2 Hp (1630 W) pneumatic motor from 140 to 430 RPM and from 80.4 Nm (59.3 ft.lb) to 392.0 Nm (289.3 ft.lb) stall torque. Morse tapper socket are form Nยฐ 2 to Nยฐ 4. CP1720R reversible corner drills cover a large variety of applications like drilling, reaming & tapping of mild steel, cast iron.
Features
- Durable and precise reversible corner drills
- 3 models with pneumatic motor from 1.2 Hp to 2.2 Hp
- Speed range from 140 to 430 RPM
- Stall torque from 80.4 Nm to 392.0 Nm
Specifications
| Chuck max capacity (in) | 7/8 |
| Chuck max capacity (mm) | 22 |
| Chuck type | Morse taper 2 |
| Handle type | Corner |
| Main Material type | Aluminum |
| Reversible | Yes |
| Starting system | Self return rolling throttle |
| Sound Power | 117 dB(A) |
| Sound Pressure | 106 dB(A) |
| Uncertainty vibration-K | 1.6 ft/sยฒ |
| Air consumption at load | 53 cfm |
| Air inlet thread size (in) | 1/2 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Max power | 1.19 hp |
| Stall torque | 59.3 ft.lbf |
| Free Speed | 430 rpm |
| Air consumption at free speed | 0 cfm |
| Length (L) | 18.58 in |
| Weight | 15.4 lb |
| CP part # | 6151580250 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
