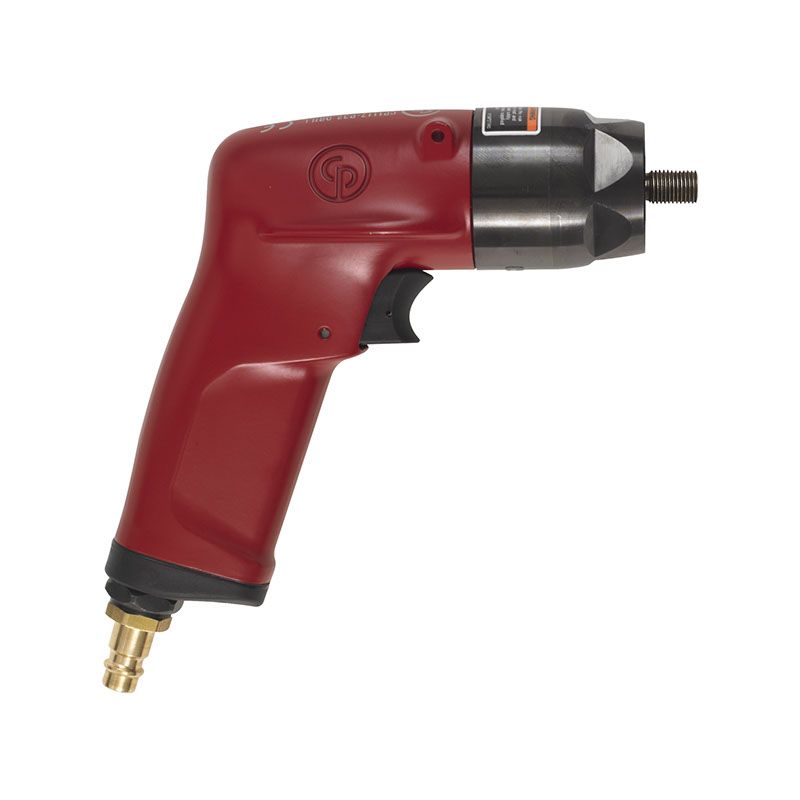

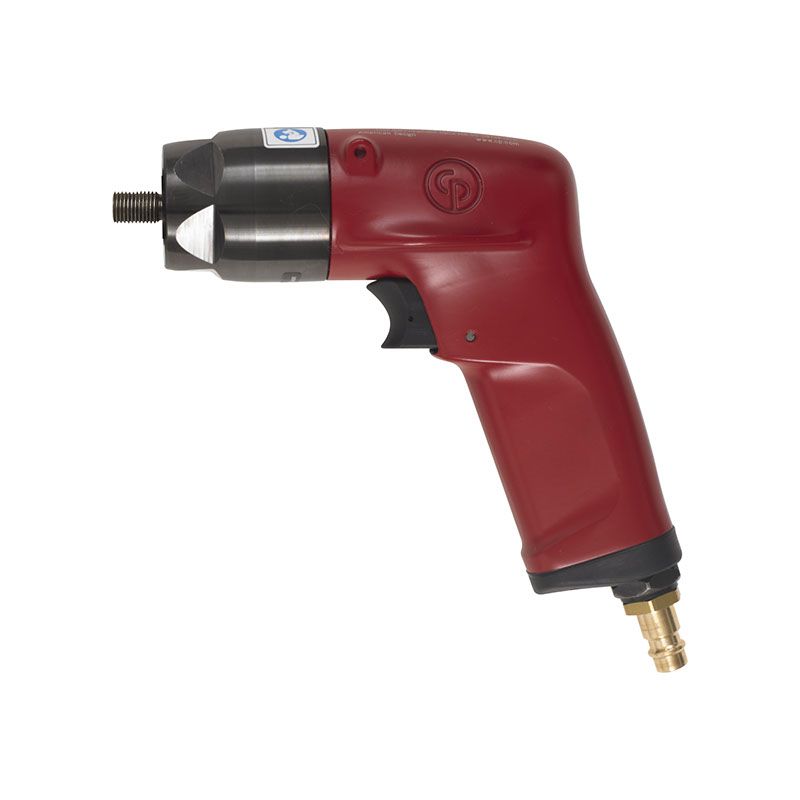

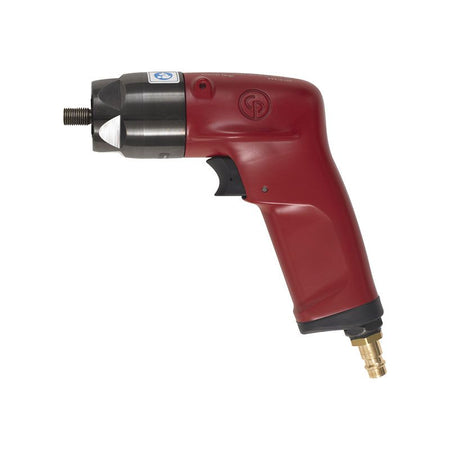

Chicago Pneumatic CP1117P26 Drill W/o Chucks - 1HP – 6151580220

Description

3/8" (10 mm) PISTOL PNEUMATIC DRILL

Take advantages of this CP1117 range of ergonomic, high speed, durable and precise drills. The CP1117 range is defined by 15 models with 1 Hp (750 W) pneumatic motor from 500 to 6000 RPM and from 3.4 Nm (2.5 ft.lb) to 30 Nm (22.2 ft.lb) stall torque.

Features

• High power 1hp (750W)
• Ergonomic design
• Low noise and vibrations
• Available without chuck, keyless, or keyed chuck options

Specifications

Chuck max capacity (in)	3/8
Chuck max capacity (mm)	10
Chuck type	No chuck
Handle type	Pistol
Main Material type	Aluminum
Reversible	No
Starting system	Trigger
Trigger type	Progressive
Sound Power	94 dB(A)
Sound Pressure	83 dB(A)
Uncertainty vibration-K	5.6 ft/s²
Air consumption at load	29 cfm
Air inlet thread size (in)	1/4
Max dynamic air working pressure	90 psi
Min hose diam (16 ft hose length)	0.38 in
Min hose diam (5 m hose length)	10 mm
Max power	1.01 hp
Stall torque	4.6 ft.lbf
Free Speed	2600 rpm
Air consumption at free speed	35 cfm
Length (L)	7.09 in
Weight	2.18 lb
CP part #	6151580220

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
