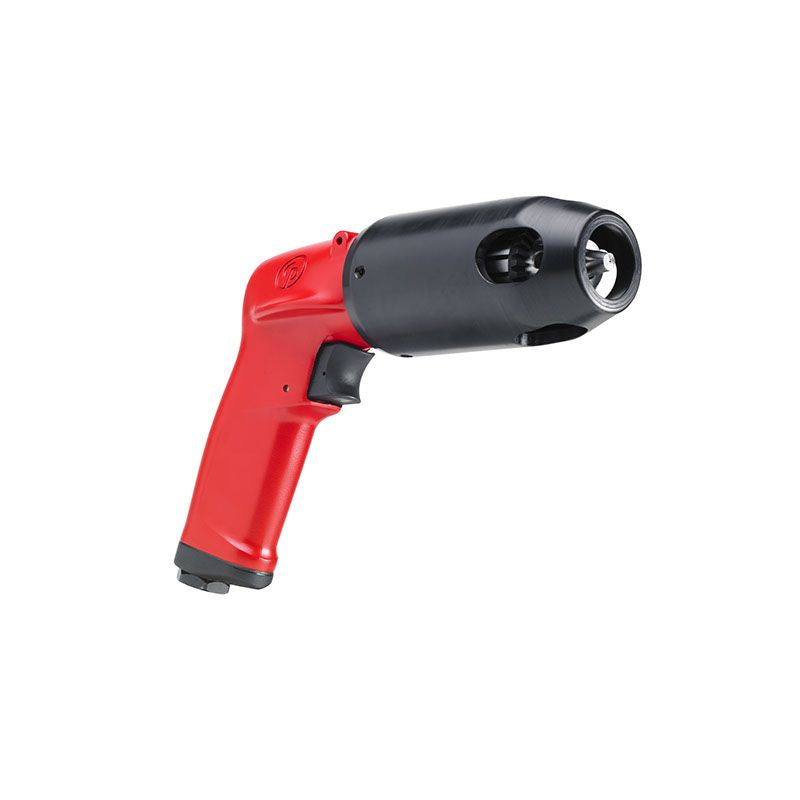

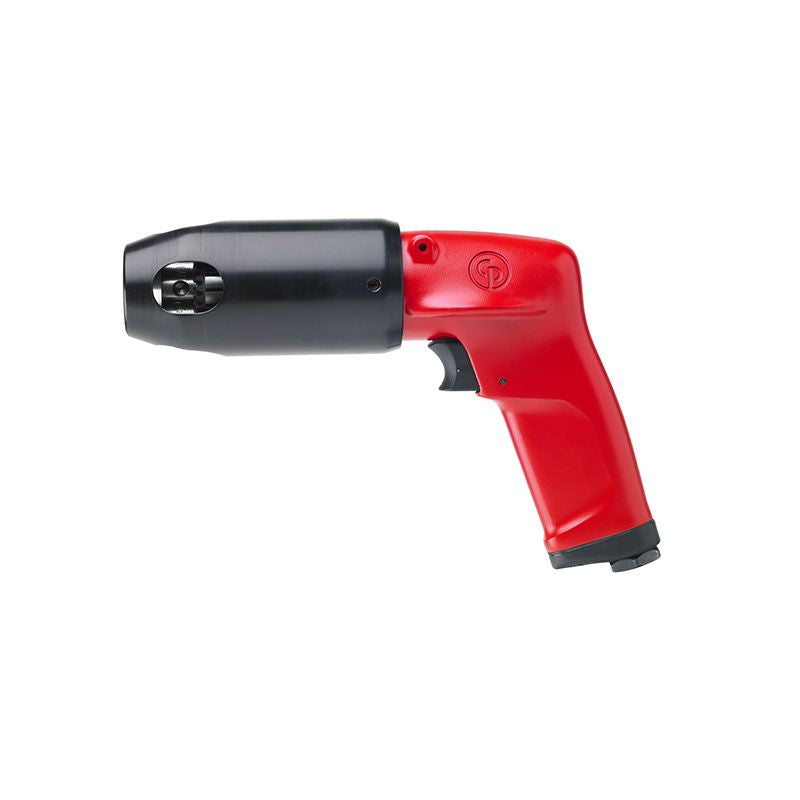

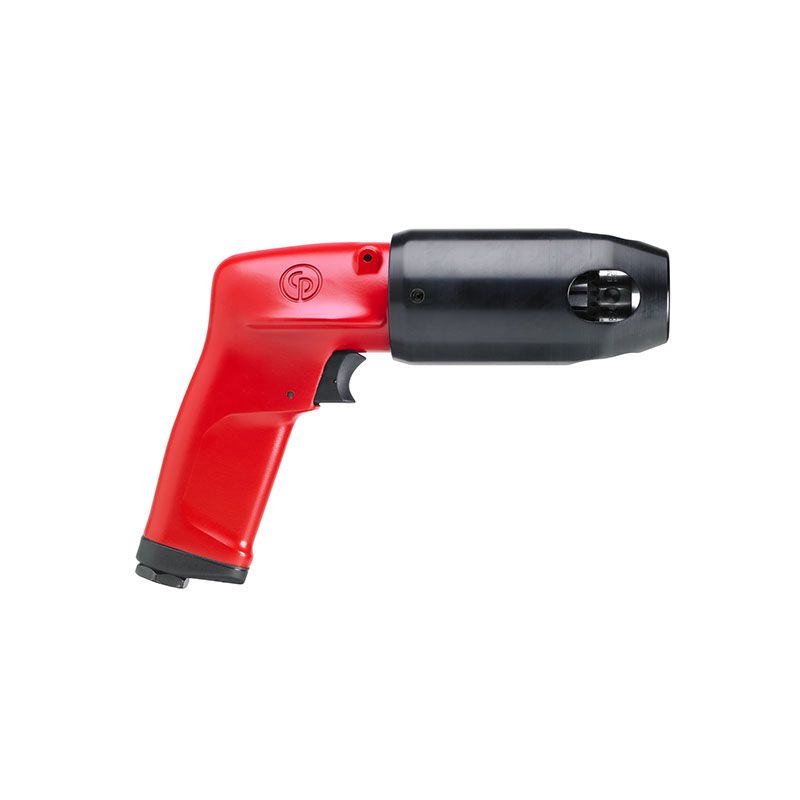

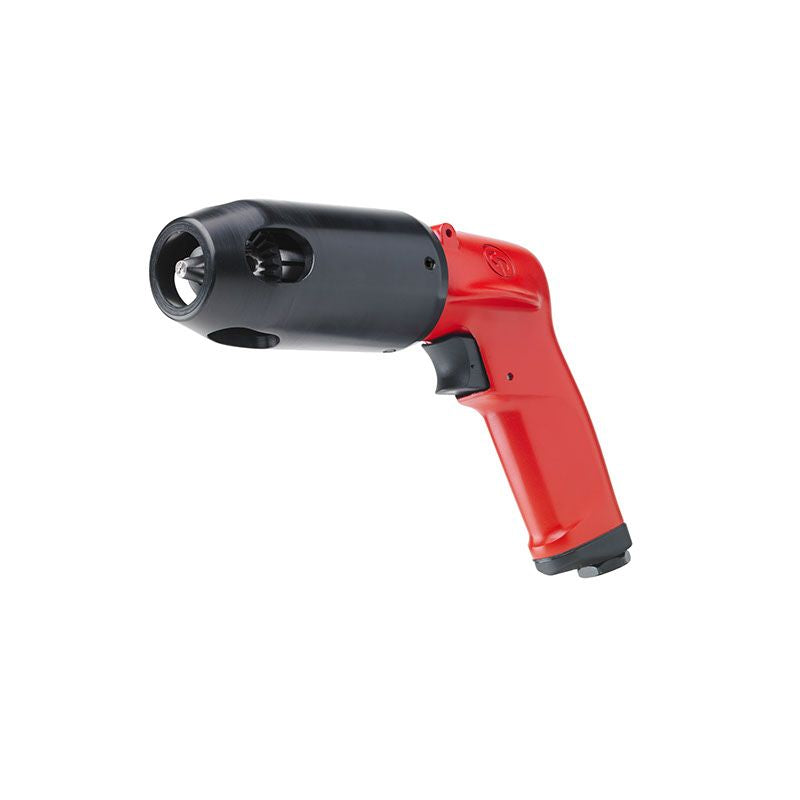

Chicago Pneumatic CP1117P26 ATEX Key Chuck Drill - 1HP โ 6151580360
3/8" (10 mm) PISTOL PNEUMATIC DRILL - ATEX
Take advantages of this CP1117 range of ergonomic, high speed, durable and precise drills. The CP1117 range is defined by 15 models with 1 Hp (750 W) pneumatic motor from 500 to 6000 RPM and from 3.4 Nm (2.5 ft.lb) to 30 Nm (22.2,2 ft.lb) stall torque. Full range offers a selection of drills without, keyless or Keyed chuck.
Features
- High speed
- Durable
- Ergonomic design
- Compact CP Ergo Wings body
- Low noise and low vibrations
- Available in multiple configurations
Specifications
| Chuck max capacity (in) | 3/8 |
| Chuck max capacity (mm) | 10 |
| Chuck type | Keyed |
| Handle type | Pistol |
| Main Material type | Aluminum |
| Reversible | No |
| Starting system | Trigger |
| Trigger type | Progressive |
| Sound Power | 94 dB(A) |
| Sound Pressure | 83 dB(A) |
| Air consumption at load | 29 cfm |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 90 psi |
| Min hose diameter (16 ft hose length) | 0.38 in |
| Min hose diameter (5 m hose length) | 10 mm |
| Max power | 1.01 hp |
| Stall torque | 4 ft.lbf |
| Free Speed | 3200 rpm |
| Air consumption at free speed | 35 cfm |
| Height (H) | 5.82 in |
| Length (L) | 8.66 in |
| Width (W) | 2.31 in |
| Weight | 3.17 lb |
| CP part # | 6151580360 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
