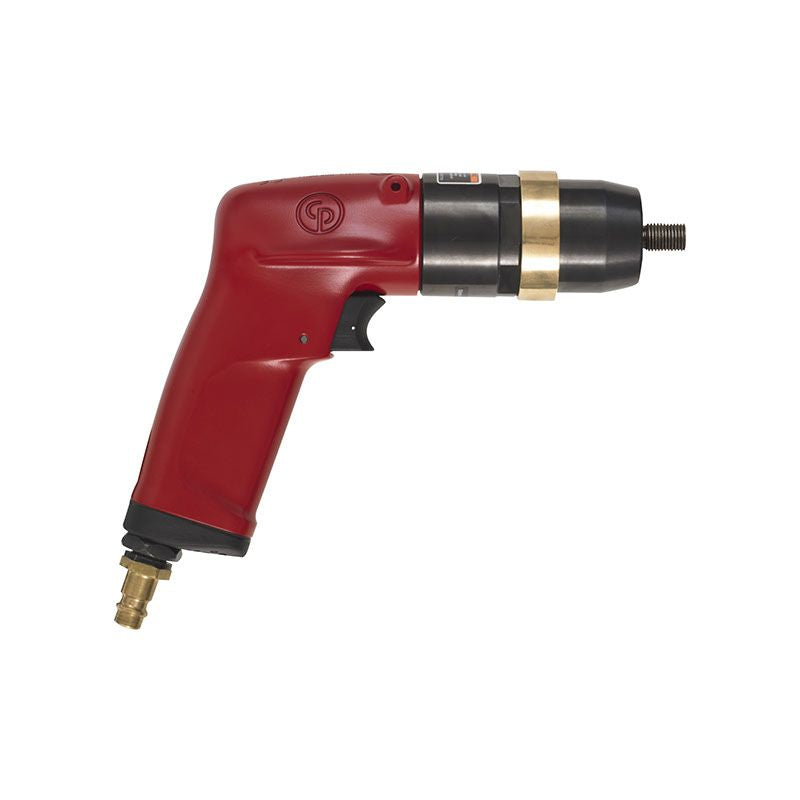

Chicago Pneumatic CP1117P09 Drill W/o Chucks - 1HP โ 6151580230
1/2"(13 mm) PISTOL PNEUMATIC DRILL
Take advantages of this CP1117 range of egonomic, high speed, durable and precise drills. The CP1117 range is defined by 15 models with 1 Hp (750 W) pneumatic motor from 500 to 6000 RPM and from 3.4 Nm (2.5 ft.lb) to 30 Nm (22.2,2 ft.lb) stall torque. Full range offers a selection of drills without, keyless or Keyed chuck.
Features
- Ergonomic design
- High speed (500 to 6000 RPM)
- Durable construction
- Precise performance
Specifications
| Chuck max capacity | 1/2 in (13 mm) |
| Chuck type | No chuck |
| Handle type | Pistol |
| Main Material type | Aluminum |
| Reversible | No |
| Starting system | Trigger |
| Trigger type | Progressive |
| Sound Power | 94 dB(A) |
| Sound Pressure | 83 dB(A) |
| Uncertainty vibration-K | 8.5 ft/sยฒ |
| Air consumption at load | 29 cfm |
| Air inlet thread size | 1/4 |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Max power | 1.01 hp |
| Stall torque | 14.1 ft.lbf |
| Free Speed | 900 rpm |
| Air consumption at free speed | 34 cfm |
| Length (L) | 7.99 in |
| Weight | 2.18 lb |
| CP part # | 6151580230 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151580230
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
