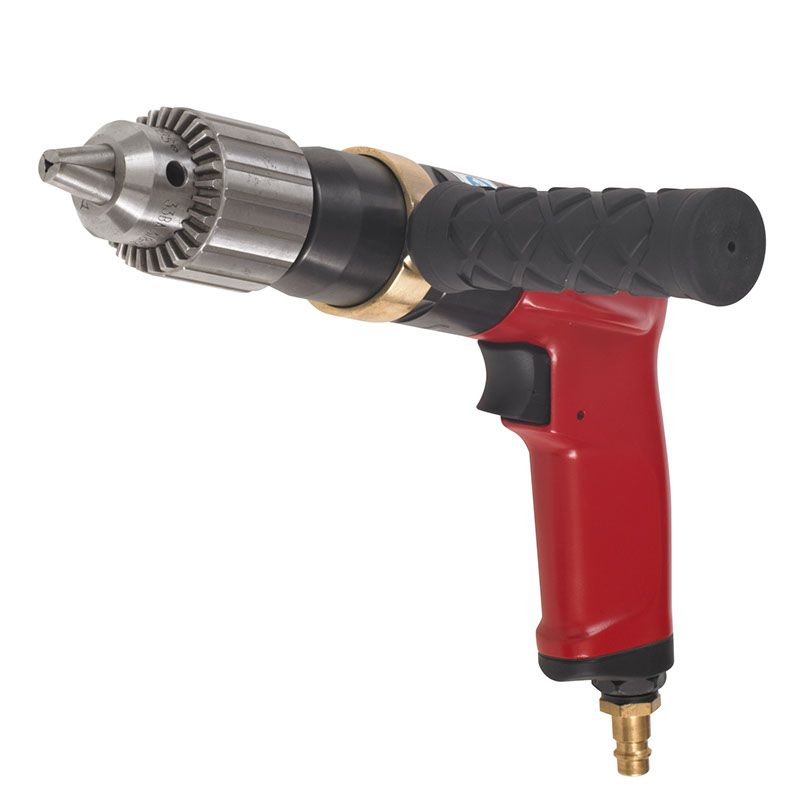

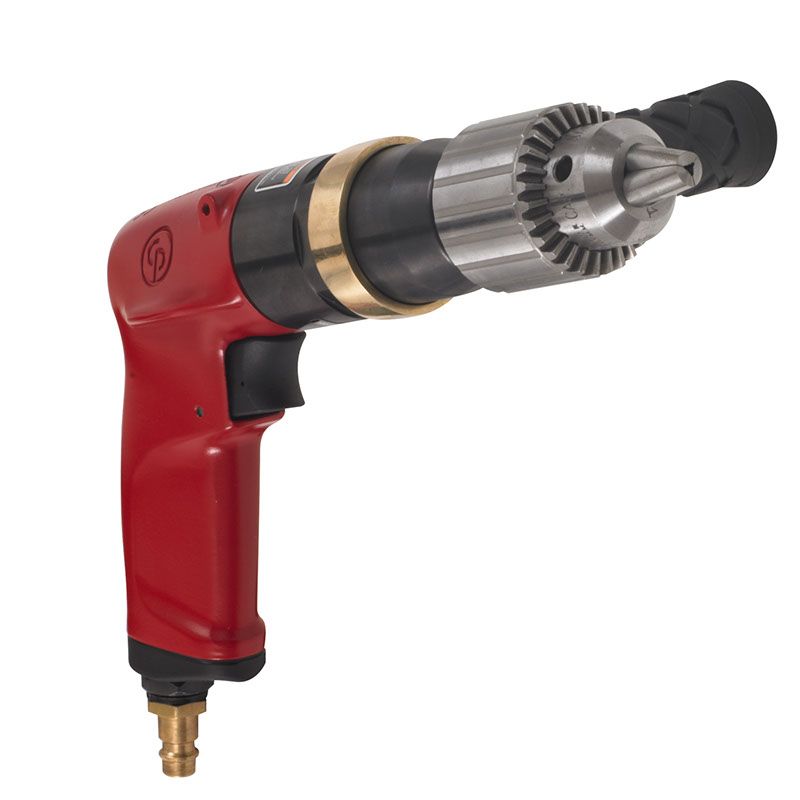

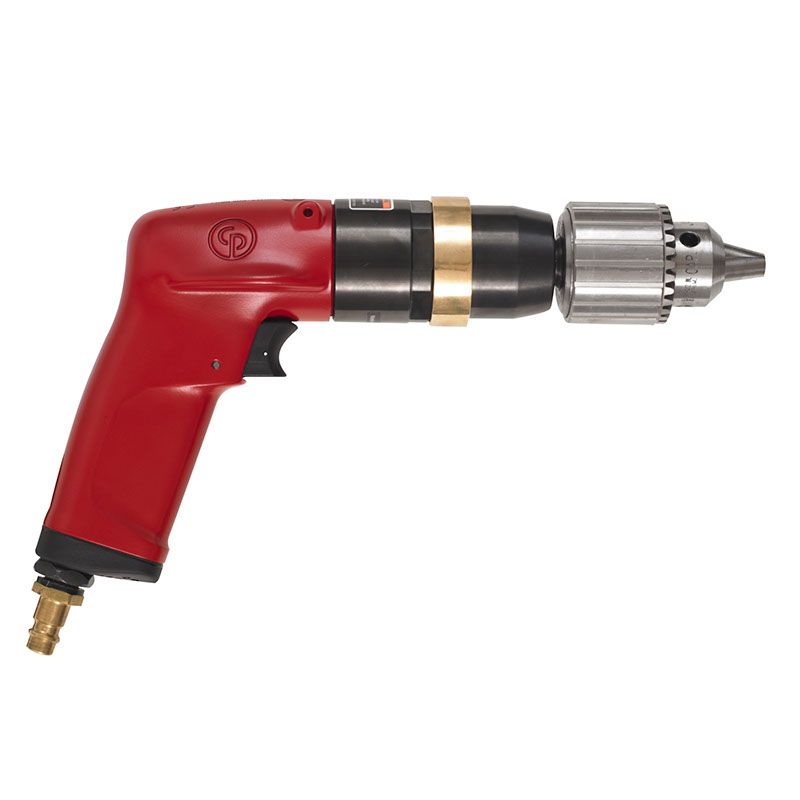

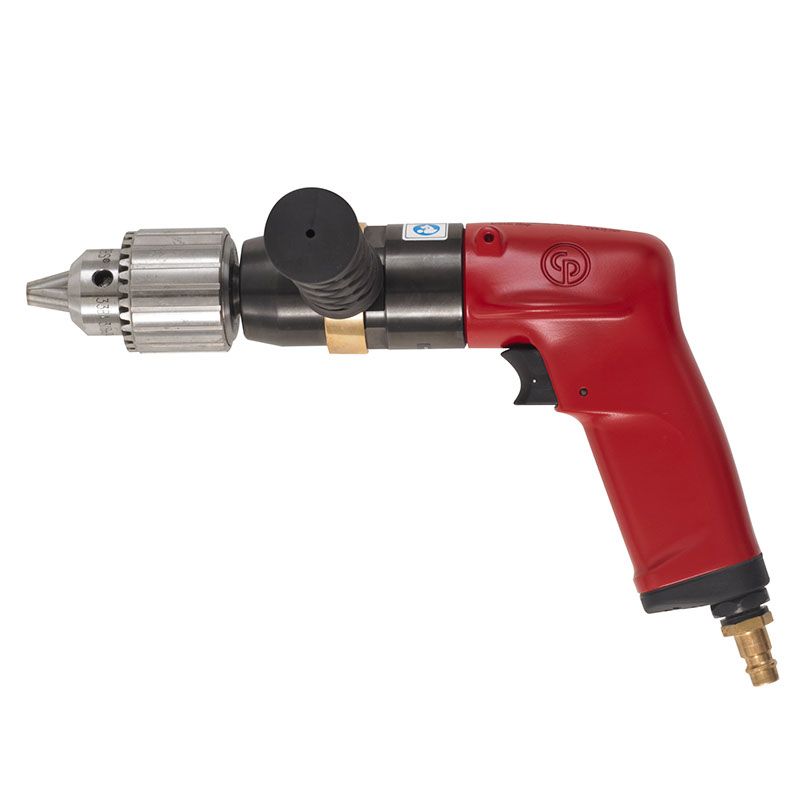

Chicago Pneumatic CP1117P05-K Key Chuck Drill - 1HP – 6151580170

Description

1/2" (13 mm) PISTOL PNEUMATIC DRILL

The CP1117 range is a selection of ergonomic, high-speed, durable, and precise drills, characterized by a 1 Hp (750 W) pneumatic motor producing speeds from 500 to 6000 RPM, and stall torque ranging from 3.4 Nm to 30 Nm.

Features

• High power 1hp (750W) with excellent control by teasing throttle handle
• Compact CP Ergo Wings body for ergonomic handling
• Low noise and low vibrations
• High-quality industrial pistol drill with keyless or keyed chuck options

Specifications

Chuck max capacity (in)	1/2
Chuck max capacity (mm)	13
Chuck type	Keyed
Handle type	Pistol
Main Material type	Aluminum
Reversible	No
Starting system	Trigger
Trigger type	Progressive
Sound Power	94 dB(A)
Sound Pressure	83 dB(A)
Uncertainty vibration-K	6.6 ft/s²
Air consumption at load	29 cfm
Air inlet thread size (in)	1/4
Max dynamic air working pressure	90 psi
Min hose diameter (16 ft hose length)	0.38 in
Min hose diameter (5 m hose length)	10 mm
Max power	1.01 hp
Stall torque	22.1 ft.lbf
Free Speed	500 rpm
Air consumption at free speed	34 cfm
Length (L)	7.99 in
Weight	3.37 lb
CP part #	6151580170

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
