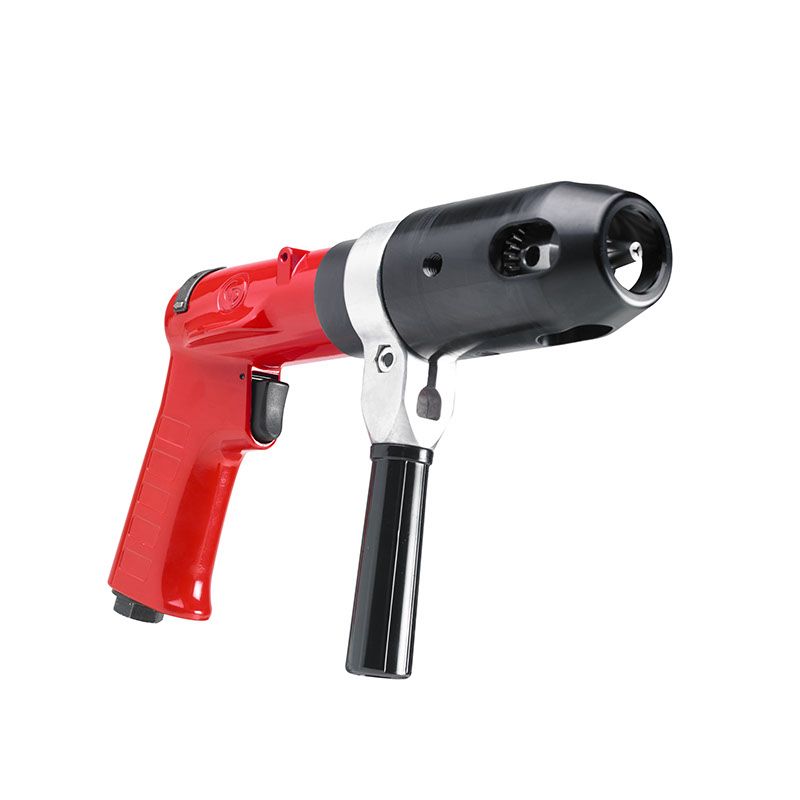

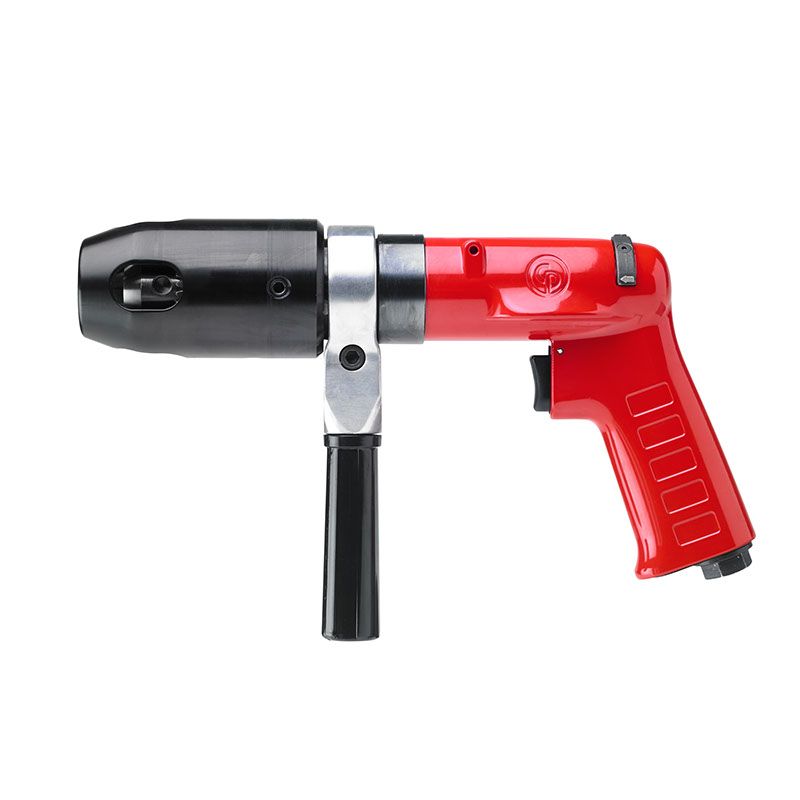

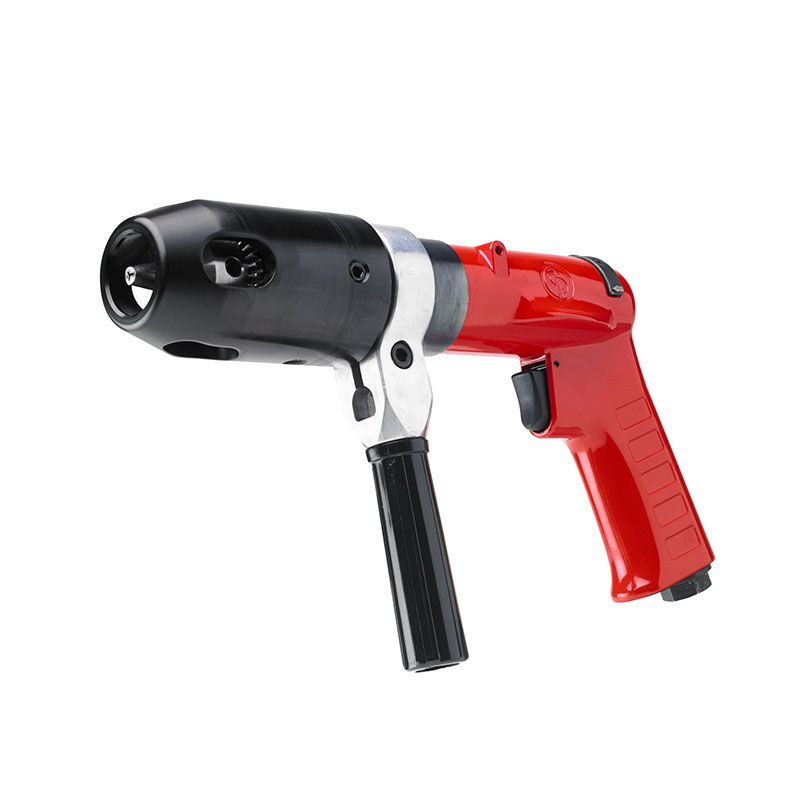

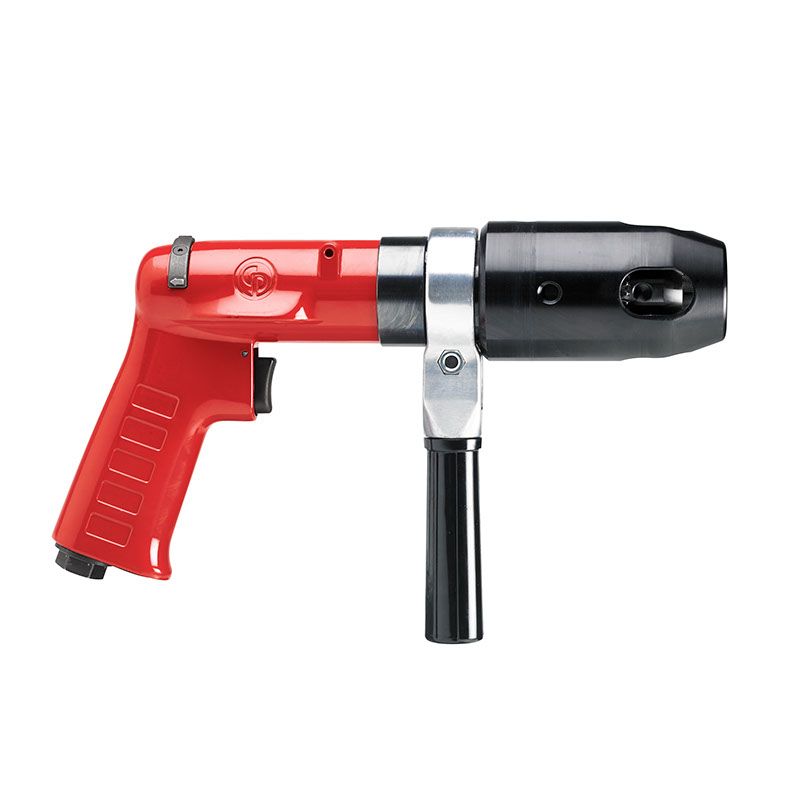

Chicago Pneumatic CP1114R05 ATEX Drill Key Chuck - 0.5HP โ 6151580380
1/2"(13 mm) PISTOL REVERSIBLE PNEUMATIC DRILL - ATEX
Take advantages of this CP1114R range of ergonomic, high speed, durable, and precise drills. The CP1114R range is defined by 4 models with 0.5 Hp (375 W) pneumatic motor from 500 to 4000 RPM and from 1.7 Nm (1.2 ft.lb) to 25.2 Nm (18.6 ft.lb) stall torque. CP1114R cover a large variety of applications, from aluminum to stainless steel.
Features
- High power 0.5hp (410W) with excellent control by teasing throttle handle
- High Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrations
- High quality industrial pistol drill with 3/8' (10 mm) to 1/2' (13 mm) Jacobs industrial keyed capacity chuck
- Versatile with a forward-reverse switch for easier drilling, reaming, tapping.
Specifications
| Chuck max capacity | 1/2 in (13 mm) |
| Chuck type | Keyed |
| Handle type | Pistol |
| Main Material type | Aluminum |
| Sound Power | 93 dB(A) |
| Sound Pressure | 82 dB(A) |
| Air consumption at load | 25 cfm |
| Air inlet thread size | 1/4 in |
| Max dynamic air working pressure | 90 psi |
| Max power | 0.55 hp |
| Stall torque | 18.6 ft.lbf |
| Free Speed | 500 rpm |
| Height | 5.97 in |
| Length | 10.95 in |
| Width | 2.26 in |
| Weight | 4.41 lb |
| CP part # | 6151580380 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151580380
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
