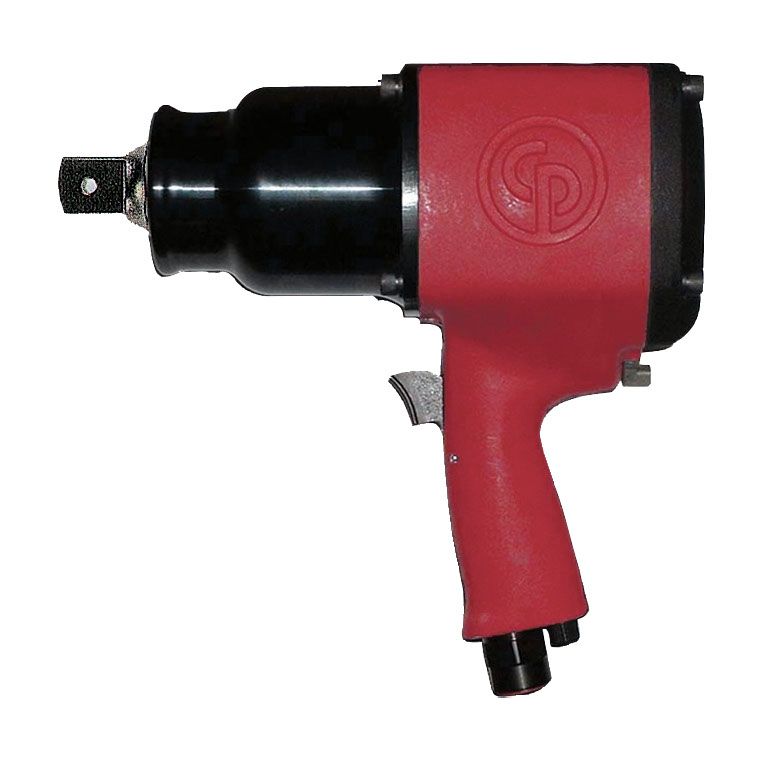

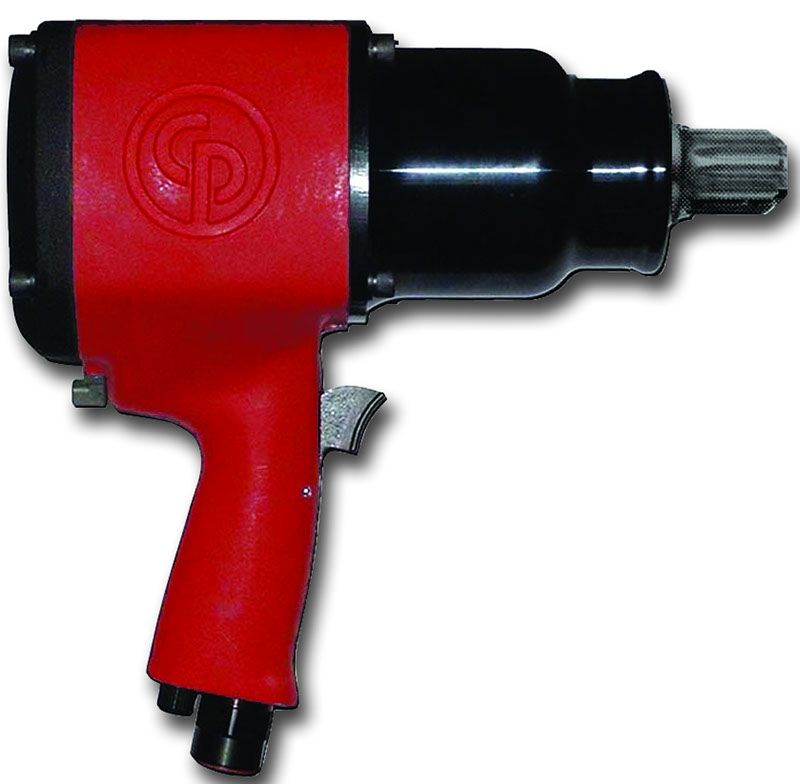

Chicago Pneumatic CP0611P RS Impact Wrench 1" โ 6151590050
1" Pistol grip pneumatic impact wrench
The CP0611 is a robust and efficient 1"/ #5 impact wrench, designed with a 2-jaw clutch mechanism, aluminium body and steel clutch housing. Delivers reverse torque up to 3,790 Nm / 2,800 ft.lb. The CP0611 is built to operate comfortably in the most demanding industrial environments for hard or soft assembly/disassembly applications.
Features
- Reliable 2 jaws clutch mechanism for hard and soft joint applications
- Durable lightweight aluminium body
- Robust steel clutch housing for extreme durability
- 2-jaw clutch ensures progressive torque increase for high torque bolt disassembly applications with minimal vibration
- 360ยฐ rotatable side handle offers excellent grip for all applications
Specifications
| Max working torque fwd | 1800 ft.lbf |
| Max torque reverse | 2800 ft.lbf |
| Min working torque fwd | 900 ft.lbf |
| Air inlet thread size | 1/2 |
| Max dynamic air working pressure | 90 psi |
| Sound Power | 113 dB(A) |
| Sound Pressure | 102 dB(A) |
| Free Speed | 3500 rpm |
| Length | 10.71 in |
| Weight | 23.1 lb |
| Blow per minute | 1020 |
| Output drive size | 1 |
| Vibration | 16.8 m/sยฒ |
| CP part # | 6151590050 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
